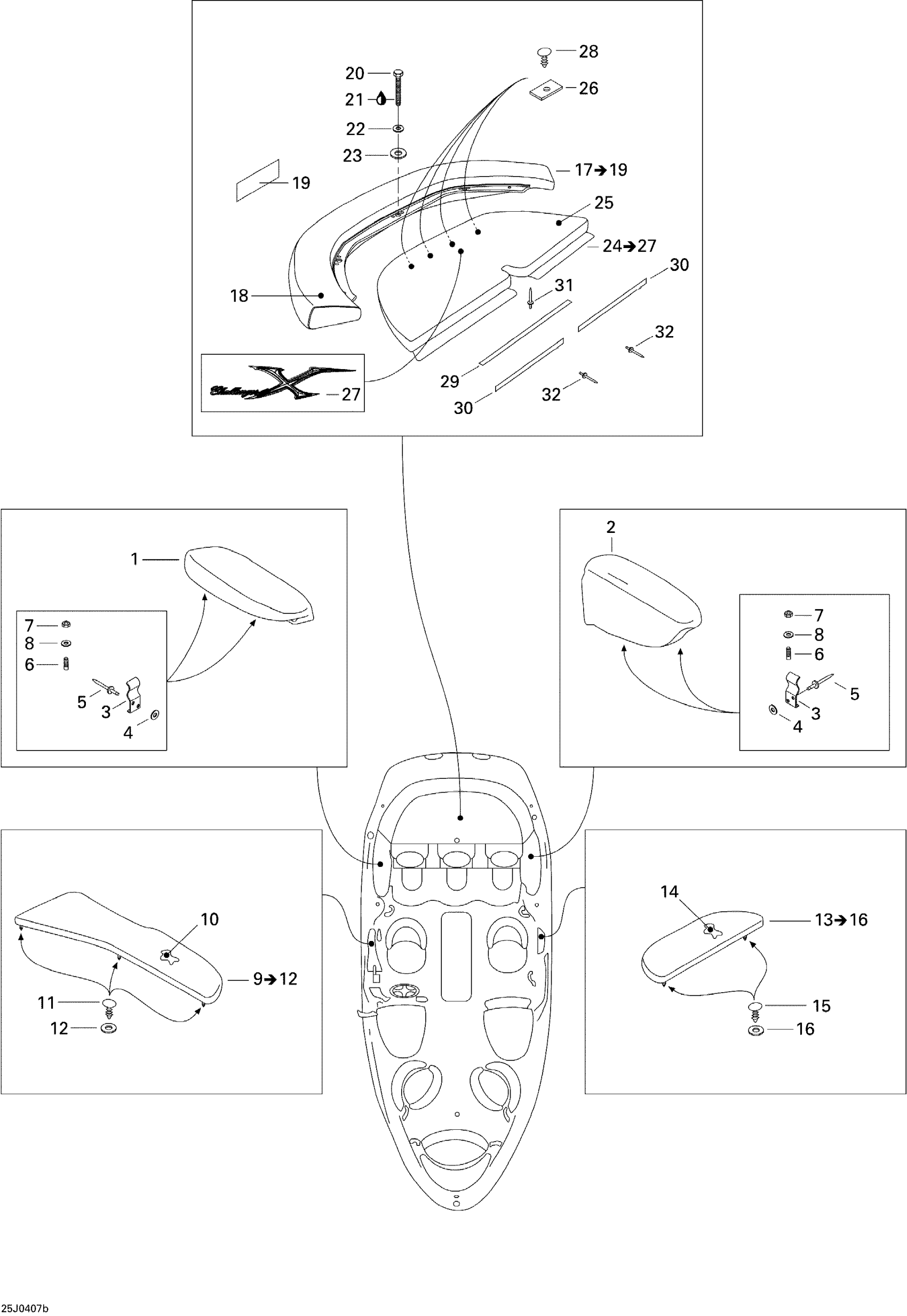

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Seat (Platform and Armrest) Diagram

#

Description
Price

1

RH Back Armrest Ass’y

204612246

Unavailable

2

LH Back Armrest Ass’y

204612248

Unavailable

3

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

4

Stainless Flat Washer M6

234061600

$0.33

5

Pop Rivet 3/16"

293150043

$2.09

6

Socket Set Screw M5 X 40, Scotch Grip

206254069

Unavailable

7

Hex. Elastic Nut M5 | X

232551600

$1.15

8

Flat Washer 5 mm, Stainless

234052600

$0.77

9

RH Elbowrest Ass'y | Includes 9 to 12

204612250

Unavailable

10

Neoprene Foam

204610121

Unavailable

11

Black, Dart

293730006

$0.99

12

Flat Washer M6, Stainless

234062600

$0.77

13

LH Elbowrest Ass'y | Includes 13 to 16

204612252

Unavailable

14

Neoprene Foam

204610123

Unavailable

15

Black, Dart

293730006

$0.99

16

Flat Washer M6, Stainless

234062600

$0.77

17

Spoiler Ass'y | Includes 17 to 19

204612265

Unavailable

18

Spoiler Cover

204612266

Unavailable

19

Staple Cover, Meter

204610184

Unavailable

20

Hex. Screw M6 X 25, Scotch Grip | With Catalyst

207362560

$1.47

21

Loctite 243, 10 ml

293800060

$21.49

22

Flat Washer M6, Stainless

234062600

$0.77

23

Flat Washer 10 mm, Stainless

234002600

$2.22

24

Platform Cushion Ass’y | Includes 24 to 27

204612267

Unavailable

25

Platform Cover

204612268

Unavailable

26

Strap

204610194

Unavailable

27

Challenger X Logo

204901283

Unavailable

28

Black, Dart

293730006

$0.99

29

Velcro 25 Mm X 940 Mm

204611298

Unavailable

30

Velcro 25 Mm X 635 Mm

204611299

Unavailable

31

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

32

Pop Rivet 3/16"

293150008

$0.50
