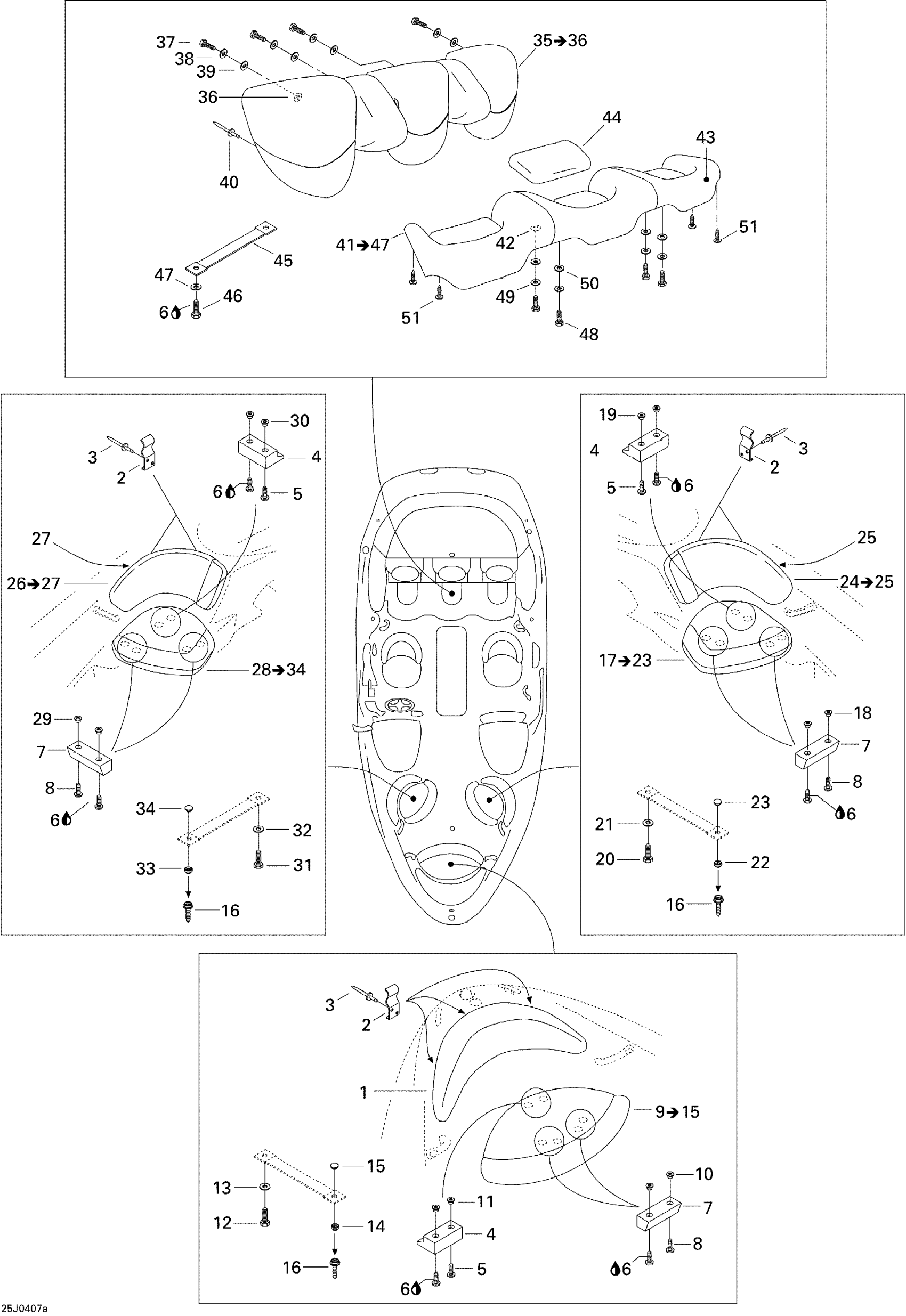

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 09- Seat (Front and Rear) Diagram

#

Description
Price

1

Front Backrest Ass’y

204612118

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

SEAT LATCH - Call your local BRP dealership

204611940

Unavailable

5

SCREW 1/4?-20 X 2? - Call your local BRP dealership

204100039

Unavailable

6

Loctite 243, 10 ml

293800060

$21.49

7

LATCH - Call your local BRP dealership

204611805

Unavailable

8

Screw 10-32 X 1-1/4”

204100075

Unavailable

9

Front Seat Ass’y | Includes 9 to 15

204612121

Unavailable

10

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

11

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

12

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

13

Flat Washer 4 mm, Stainless

234042600

$1.15

14

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

15

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

16

Threaded Stud 5/8”

204100046

Unavailable

17

LH Seat Ass’Y | Includes 17 to 23

204612123

Unavailable

18

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

19

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

20

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

21

Flat Washer 4 mm, Stainless

234042600

$1.15

22

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

23

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

24

LH Backrest Ass'y | Includes 24 to 25

204612125

Unavailable

25

Was 293200017 Neoprene Seal

219704365

$149.99

26

RH Backrest Ass'y | Includes 26 to 27

204612136

Unavailable

27

Was 293200017 Neoprene Seal

219704365

$149.99

28

RH Seat Ass’Y | Includes 28 to 34

204612143

Unavailable

29

TEE-NUT #10-32 - Call your local BRP dealership

204100044

Unavailable

30

TEE-NUT 1/4?- 20 - Call your local BRP dealership

204100021

Unavailable

31

SCREW 8 X 3/4? - Call your local BRP dealership

204100054

Unavailable

32

Flat Washer 4 mm, Stainless

234042600

$1.15

33

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

34

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

35

Rear Backrest Ass’y | Includes 35 to 36

204612144

Unavailable

36

Anchor Washer

204100005

Unavailable

37

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

38

Flat Washer M6, Stainless

234062600

$0.77

39

Flat Washer 8 mm, Stainless

234082600

$2.43

40

RIVET - Call your local BRP dealership

293150065

Unavailable

41

Rear Seat Ass’y | Includes 41 to 47

204612269

Unavailable

42

Anchor Washer

204100005

Unavailable

43

Rear Seat Cover

204612242

Unavailable

44

Rear Seat Cushing

204612243

Unavailable

45

Rear Seat Strap

204612245

Unavailable

46

Hex. Screw M6 X 16

207161660

$1.59

47

Flat Washer M6, Stainless

234062600

$0.77

48

Hex. Screw M6 X 40, Scotch Grip

207364060

Unavailable

49

Flat Washer M6, Stainless

234062600

$0.77

50

WASHER-FENDER/S.S. - Call your local BRP dealership

204100139

Unavailable

51

Dart

293730021

$7.79
