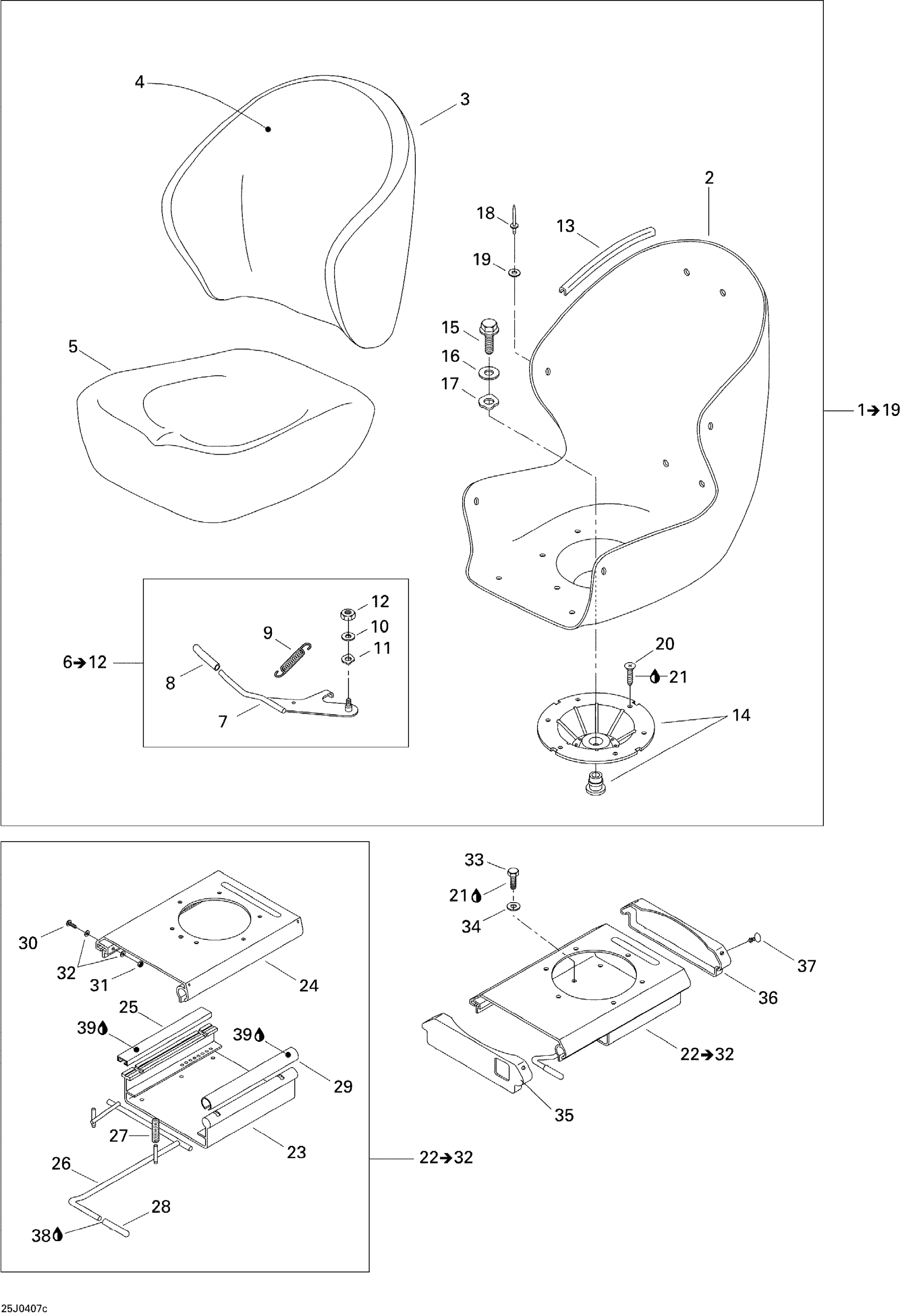

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Seat (Driver and Passenger) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Base

204612781

Unavailable

3

Backrest Cover

204612255

Unavailable

4

Backrest Cover

204612255

Unavailable

5

Seat Cushion

204612256

Unavailable

6

Lever Arm Ass’y

204610523

Unavailable

7

Lever Arm

204610524

Unavailable

8

Handle

204610348

Unavailable

9

SPRING - Call your local BRP dealership

204610349

Unavailable

10

Stainless Flat Washer M6

234061600

$0.33

11

Washer

211200059

Unavailable

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

14

SWIVEL PLATE - Call your local BRP dealership

204610513

Unavailable

15

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

16

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

17

WASHER - Call your local BRP dealership

293200056

Unavailable

18

RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.

293150201

Unavailable

19

FLAT WASHER #10 - Call your local BRP dealership | Except STD

204100059

Unavailable

20

PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

208561660

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Lower Part

269500636

Unavailable

24

Upper Part

269500637

Unavailable

25

Rectangular Bushing

269500638

Unavailable

26

Rod Ass'y

269500639

Unavailable

27

Spring

269500640

Unavailable

28

Handle

204610348

Unavailable

29

Circle Bushing

269500642

Unavailable

30

Hex. Screw M6 X 50

207065060

$2.22

31

Hex. Elastic Stop Nut M6

232561600

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Screw M6 X 35

207163560

$1.49

34

Flat Washer M6, Stainless

234062600

$0.77

35

Front Protector

204610375

Unavailable

36

Rear Protector

204610376

Unavailable

37

Black, Dart

293730006

$0.99

38

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

39

Synthetic Grease, 400 G

293550010

Unavailable
