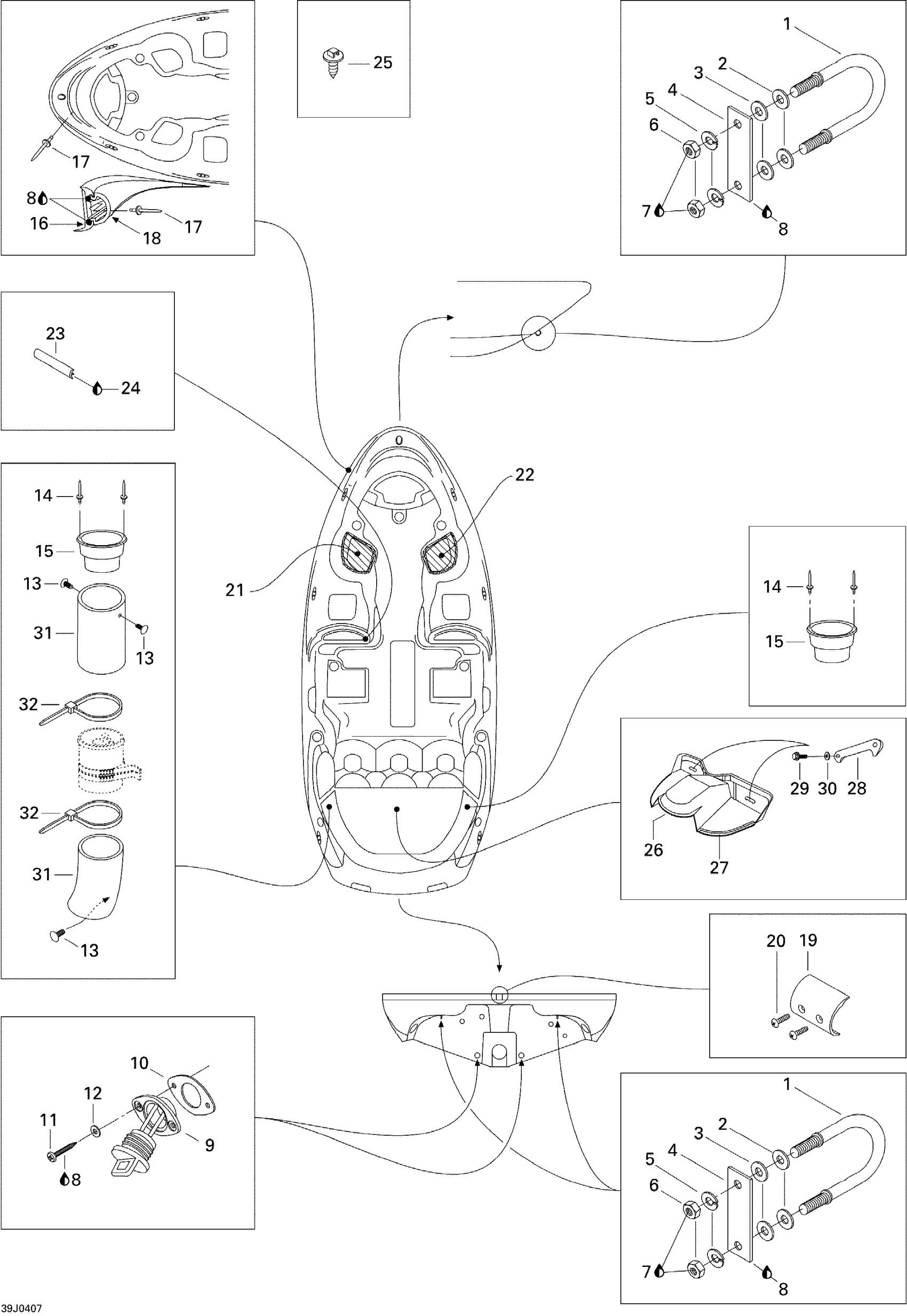

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Hull Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
Unavailable
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
Unavailable
6
Hex. Nut M8
232081600
Unavailable
7
Loctite 271, 10 ml
293800005
Unavailable
8
Silicone Sealant 51388, 300 ml
296000309
Unavailable
9
Drain Plug
292000187
Unavailable
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
Unavailable
13
Black, Dart
293730006
Unavailable
14
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
15
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
16
Bumper
204050199
Unavailable
17
Pop Rivet 3/16"
293150013
Unavailable
18
Bumper Trim
204050200
Unavailable
19
BUMPER COVER - Call your local BRP dealership
291000905
Unavailable
20
Phillips Tapping Screw M4.2 X 32
209943260
Unavailable
21
LH Storage Box Carpet
204050541
Unavailable
22
RH Storage Box Carpet
204050542
Unavailable
23
TRIM, WHITE - Call your local BRP dealership
204050048
Unavailable
24
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
Unavailable
25
Mount Dart
293730040
Unavailable
26
Access Cover
204050482
Unavailable
27
Seal Tray 1000Mm Long
219704368
Unavailable
28
Black, Handle - Call your local BRP dealership
204050159
Unavailable
29
Hex. Flange Screw K40 X 16
241141660
Unavailable
30
Flat Washer 4 mm, Stainless
234042600
Unavailable
31
Was 204050122 Vent Hose 4"
219704358
Unavailable
32
Tie Wrap 368 mm
293750008
Unavailable
