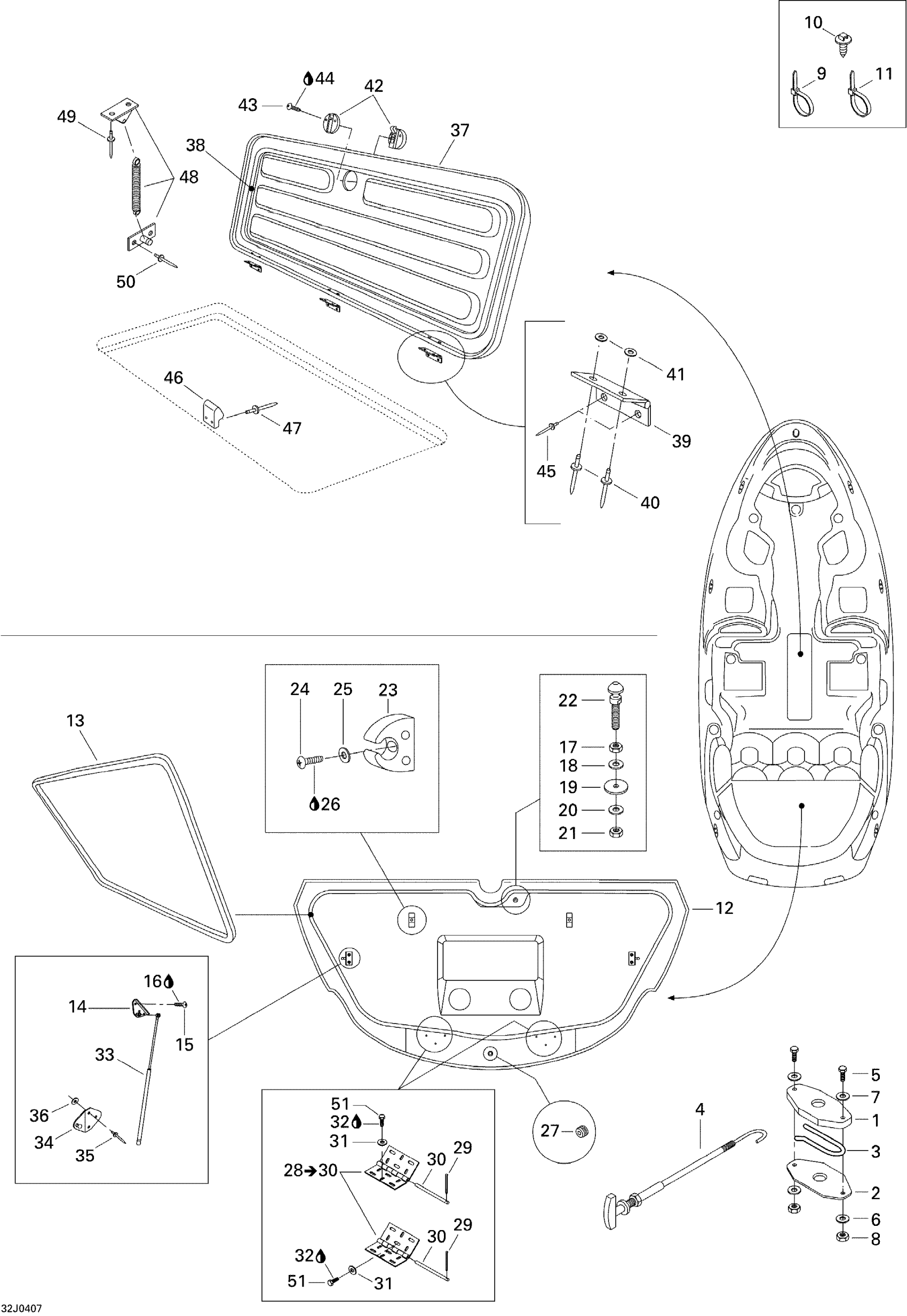

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Engine Compartment And Central Cover Diagram

#

Description
Price

1

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

2

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

3

SPRING - Call your local BRP dealership

204070038

Unavailable

4

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

5

Hex. Screw M6 X 35

207163560

Unavailable

6

Flat Washer M6, Stainless

234062600

Unavailable

7

Stainless Flat Washer M6

234061600

Unavailable

8

Hex. Elastic Stop Nut M6

232561600

Unavailable

9

Tie Wrap 368 mm

293750008

Unavailable

10

Mount Dart

293730040

Unavailable

11

Tie-Rap 180 mm

414115200

Unavailable

12

Engine Cover | 5172 (250 OPTI)

204071996

Unavailable

13

Was 293200017 Neoprene Seal

219704365

Unavailable

14

Shock Bracket

204073074

Unavailable

15

Hex. Screw M4 X 16 | Europe

207141660

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Hex. Jam Nut M10

232100600

Unavailable

18

Flat Washer 10 mm, Stainless

234002600

Unavailable

19

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

20

Flat Washer 10 mm, Stainless

234002600

Unavailable

21

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

22

Latch Stud

204100065

Unavailable

23

Pole Support

291000642

Unavailable

24

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

25

Flat Washer 4 mm

234040600

Unavailable

26

Loctite 243, 10 ml

293800060

Unavailable

27

GROMMET - Call your local BRP dealership

293720017

Unavailable

28

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

29

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

30

Cotter Pin M2.5 X 12

204070205

Unavailable

31

Stainless Flat Washer M6

234061600

Unavailable

32

Loctite 243, 10 ml

293800060

Unavailable

33

Gas Shock, Port Side

204072013

Unavailable

33

GAS SHOCK - Call your local BRP dealership | Port Side

204071964

Unavailable

34

Shock Bracket

204071673

Unavailable

35

Pop Rivet 3/16"

293150043

Unavailable

36

Flat Washer M5, Stainless

234051600

Unavailable

37

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

38

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

39

HINGE - Call your local BRP dealership

204072601

Unavailable

40

Pop Rivet 3/16"

293150088

Unavailable

41

Flat Washer M5, Stainless

234051600

Unavailable

42

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

43

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

44

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

Unavailable

45

Pop Rivet 3/16"

293150088

Unavailable

46

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

47

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

48

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

49

Pop Rivet 3/16"

204000081

Unavailable

50

Pop Rivet 3/16"

293150043

Unavailable

51

Hex. Screw M6 X 25

207162560

Unavailable
