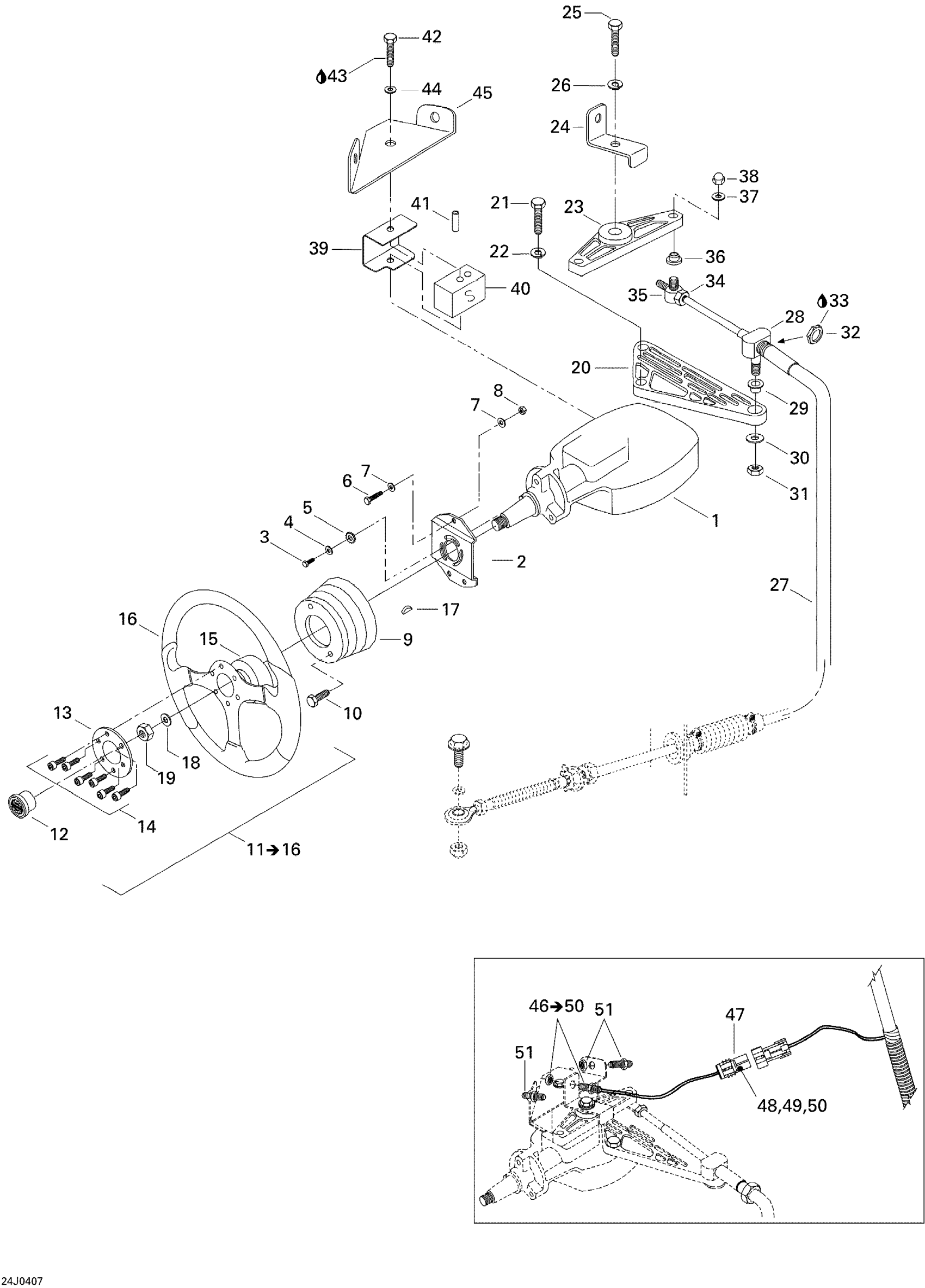

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 07- Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Serrated Lock Washer 8 mm

234481608

$1.15

6

Hex. Screw M6 X 30

207163060

$1.48

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

10

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

11

Steering | Includes 11 to 16

204390170

Unavailable

12

Center Cap

204390327

Unavailable

13

Center Ring

204390328

Unavailable

14

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

15

Nylon Hub

204390330

Unavailable

16

Steering Wheel

204390331

Unavailable

17

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

18

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

19

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

20

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

21

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

22

Lock Washer 1/4”

211200025

$1.29

23

ARM - Call your local BRP dealership

204390040

Unavailable

24

Lower Clip

204390271

Unavailable

25

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

26

Lock Washer 1/4”

211200025

$1.29

27

STEERING CABLE ASS'Y - Call your local BRP dealership

204390172

Unavailable

28

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

29

Flanged Bushing

293350014

$12.99

30

Flat Washer 10 mm, Stainless

234001600

$1.15

31

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

32

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

33

Loctite 243, 10 ml

293800060

$21.49

34

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

35

PIVOT - Call your local BRP dealership

277000456

Unavailable

36

BUSHING - Call your local BRP dealership

204130095

Unavailable

37

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

38

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

39

Bumper Support

204390245

Unavailable

40

Bumper

204390246

Unavailable

41

Bushing

204130004

Unavailable

42

HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership

204100014

Unavailable

43

Loctite 243, 10 ml

293800060

$21.49

44

Flat Washer M6, Stainless

234062600

$0.77

45

Cam Switch

204390339

Unavailable

46

LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50

204470631

Unavailable

47

Female Terminal Housing

204470634

Unavailable

48

Terminal Support

204470635

Unavailable

49

Wire Seal

204470641

Unavailable

50

Female Terminal

278001481

$3.49

51

Low Speed Control Actuator

204470632

$42.99
