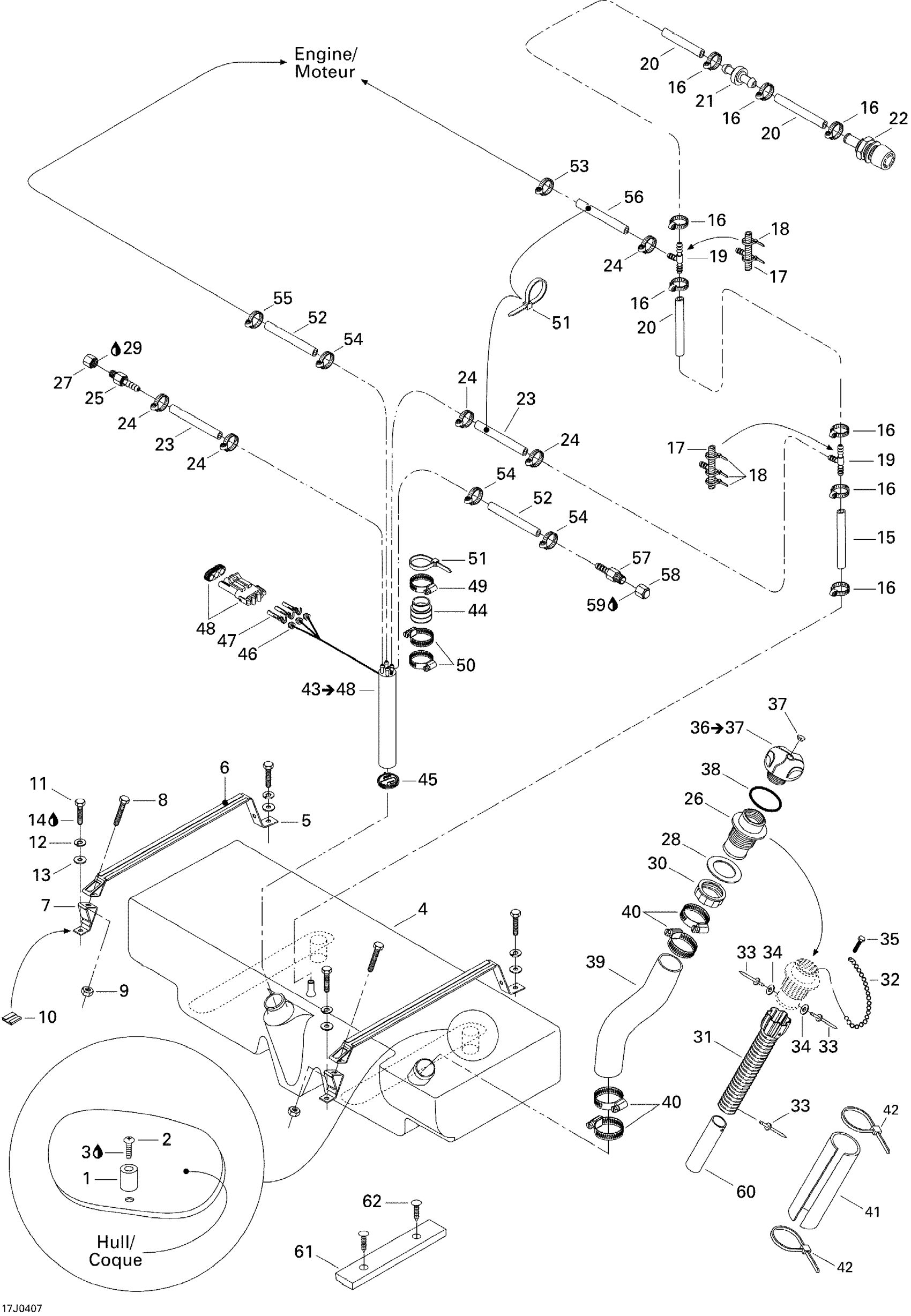

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Fuel System Diagram

#

Description
Price

1

Rubber Bumper

204560039

Unavailable

2

Phillips Screw M5 X 35

208653560

$1.85

3

Loctite 271, 10 ml

293800005

$20.77

4

Fuel Tank, Plastic

204560073

Unavailable

5

Fuel Tank Strap

204560189

Unavailable

6

Protector Pad

204560037

Unavailable

7

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

8

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

9

Hex. Elastic Nut M8

232581600

$1.25

10

Protecteur Pad

204560027

Unavailable

11

Hex. Screw M8 X 30

207183060

$1.30

12

Lock Washer 8 mm, Stainless

234181601

$0.46

13

Flat Washer 8 mm, Stainless

234082600

$1.98

14

Loctite 271, 10 ml

293800005

$20.77

15

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

16

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Tie-Rap 180 mm

414115200

$0.09

19

T-Fitting

204560038

Unavailable

20

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

21

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

22

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

23

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

24

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

25

COUPLER - Call your local BRP dealership

204560265

Unavailable

26

Filler Neck

275500247

Unavailable

27

Pipe Cap

204560263

Unavailable

28

Gasket

293250029

$12.06

29

Was 293800013 Loctite 56765

219704454

$63.40

30

Filler Neck Nut, Fuel

211100012

$11.51

31

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

32

Oil Cap Chain

275500015

Unavailable

33

Rivet 1/8”

293150057

Unavailable

34

Flat Washer M3, Stainless

234032600

$0.52

35

Screw K40 X 10

241140060

$1.25

36

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

37

Black, Snap Cap

293000034

$7.48

38

Gasket

293250017

Unavailable

39

Filler Neck Hose | 5172 (250 OPTI)

204560226

Unavailable

40

Norma Clamp

293650081

$9.87

41

Neoprene Cover

204130046

Unavailable

42

Tie Wrap 368 mm

293750008

$0.85

43

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

44

Fuel Tube Adaptor

204560066

Unavailable

45

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

46

Wire Seal

278000218

$3.48

47

Female Terminal

278000223

$2.55

48

Male Housing, 3 Circuits

278000273

$7.59

49

NORMA CLAMP - Call your local BRP dealership

293650174

Unavailable

50

Norma Clamp

293650081

$9.87

51

Tie-Rap 180 mm

414115200

$0.09

52

Hose 5/16”, Meter

204560177

Unavailable

53

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

54

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

55

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

56

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

57

Hose Fitting

204560264

Unavailable

58

Pipe Cap

204560263

Unavailable

59

Was 293800013 Loctite 56765

219704454

$63.40

60

Not Available As Spare Part - Friction Washer

Unavailable

61

Rubber Pad

204060701

Unavailable

62

Black, Dart

293730006

$0.81
