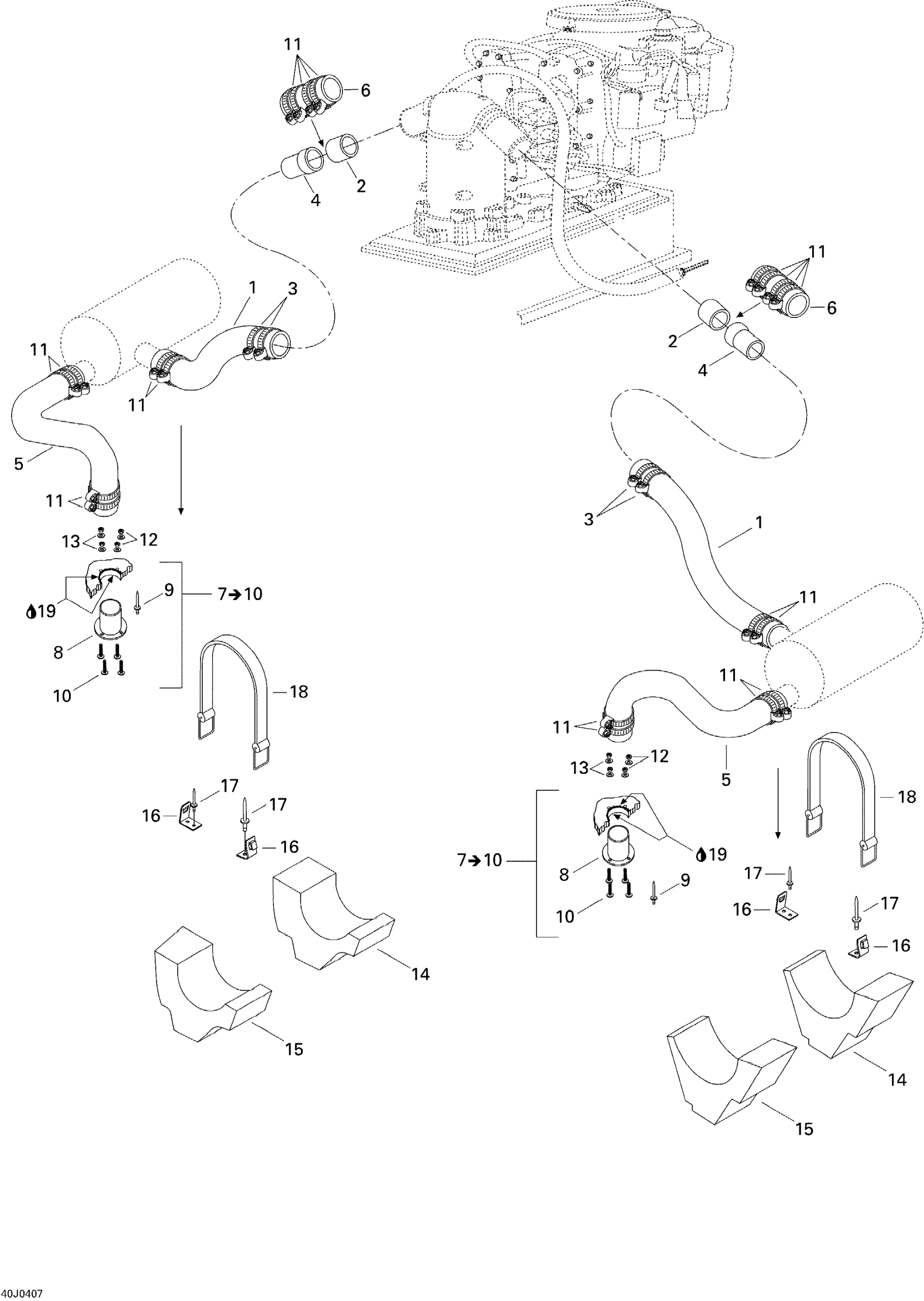

Sea-doo Challenger X 240 EFI/250 Optimax, 2004 Exhaust System Diagram

#

Description
Price

1

Exhaust Hose

204340408

Unavailable

2

Exhaust Spacer

204340403

$30.49

3

Tridon Clamp

293650064

$8.29

4

Exhaust Adaptor

204340402

$59.49

5

Exhaust Hose

204340299

Unavailable

6

Exhaust Hose, Meter

204340256

Unavailable

7

Exhaust Outlet Ass’Y | Includes 7 to 10

204340322

Unavailable

8

Exhaust Outlet

204340229

Unavailable

9

Pop Rivet 3/16"

293150043

$2.09

10

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

11

Tridon Clamp

293650112

$12.99

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

Stainless Flat Washer M6

234061600

$0.33

14

Outer Muffler Support, Port Side

204340369

Unavailable

15

Inner Muffler Support

204340383

Unavailable

16

Strap Clip 90°

204060017

Unavailable

17

Pop Rivet 3/16"

293150088

$0.99

18

STRAP - Call your local BRP dealership

293850022

Unavailable

19

Silicone Sealant 51388, 300 ml

296000309

$36.99
