- CHALLENGER STANDARD (R03) - N21LCBRRAA/T/BA/T/CA/T/EA/T
ENGINE, COOLING ASM. - N21LCBRR ALL OPTIONS (201220C)

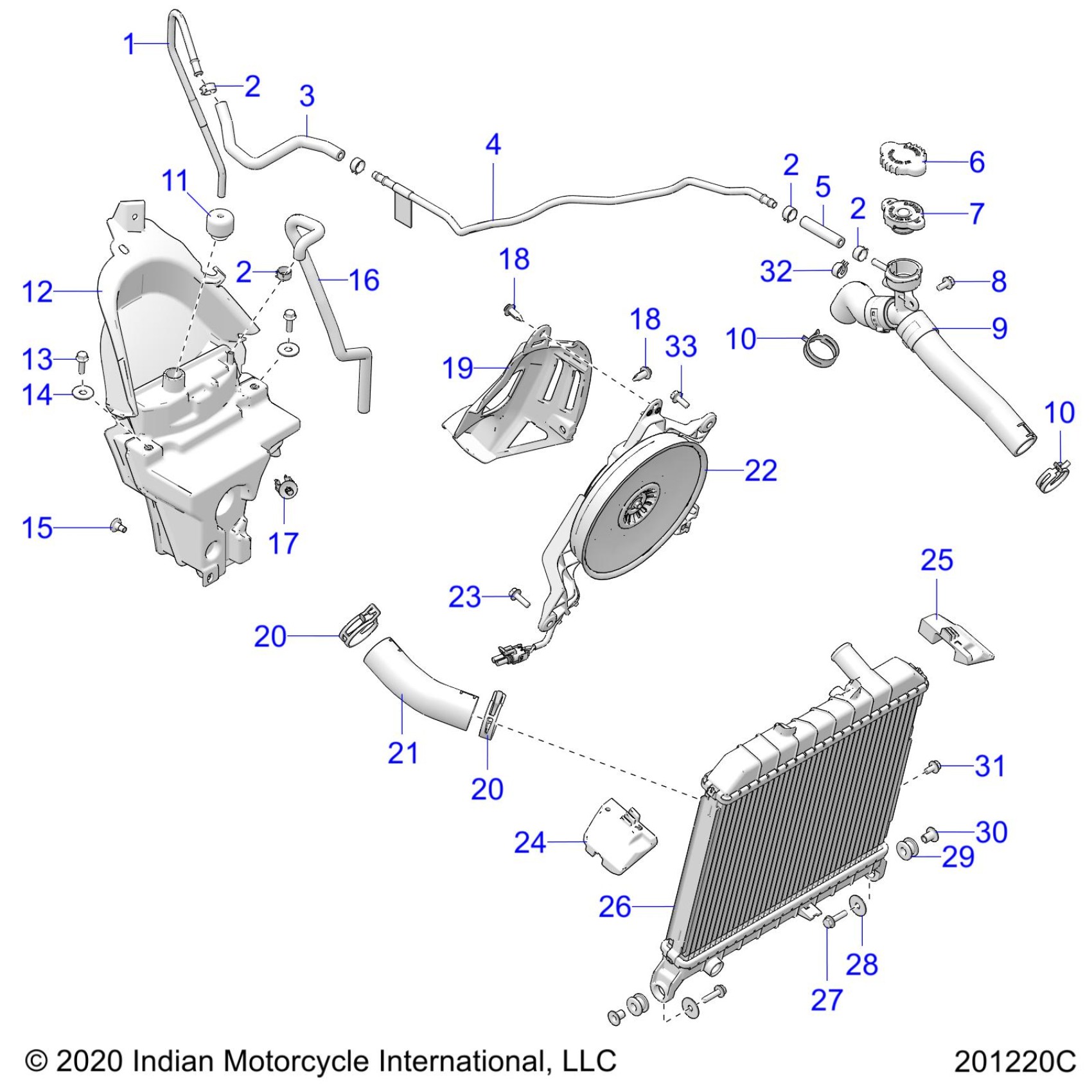

Polaris CHALLENGER STANDARD (R03) - N21LCBRRAA/T/BA/T/CA/T/EA/T ENGINE, COOLING ASM. - N21LCBRR ALL OPTIONS (201220C) Diagram
#
1
LINE-COOLANT,PICK UP
5456012
Unavailable
2
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
2
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
2
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
2
CLAMP-HOSE, 17/32, GREEN
7081432
$3.99
3
HOSE-COOLANT,RETURN,SOFT
5417240
Unavailable
4
LINE-COOLANT,RETURN
5455305
Unavailable
5
1/4"SAEJ2002,EPDM HOSE,6CM
8450120-06
Unavailable
6
COVER,PRESSURE CAP
5416165
Unavailable
7
CAP, PRESSURE
1240797
Unavailable
8
SCREW-HXFL-M6X1.0X14, 8.8 ZPB
7520143
$3.99
9
ASM., HOSE
1241272
Unavailable
10
SPRINGBAND-CLAMP 32/12,BLK
7081977
Unavailable
10
SPRINGBAND-CLAMP 32/12,BLK
7081977
Unavailable
11
LID-BOTTLE,COOLANT
5417199
Unavailable
12
ASM., BOTTLE,COOLANT,RECOVERY
1241274
Unavailable
13
SCREW-M6X1.0X20-HX/FL-Y/D
7516822
$2.39
14
WASHER-8.4X24.0X2.0 JS500
7556352
Unavailable
15
SCREW-SHLDR,M6X1.0X7MM
7520993
Unavailable
16
HOSE-COOLANT,OVERFLOW TO 7/13/21
5417241
Unavailable
16
HOSE-COOLANT,OVERFLOW FROM 7/13/21
5417949
Unavailable
17
CLIP-FIR TREE
7082678
Unavailable
18
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
18
RIVET-TUFLOK,.315-.325X.787
7661855
$1.49
19
SHROUD-FAN
5455017
Unavailable
20
CLAMP-CTB42
7082625
$7.19
20
CLAMP-CTB42
7082625
$7.19
21
HOSE-RADIATOR,OUT
5415677
Unavailable
22
ASM., FAN,194MM
2415515
Unavailable
23
SCREW-HXFL-M6X1.0X20 8.8 ZPB D51
7517750
Unavailable
24
MNT-RAD,UPR,RH
5417233
Unavailable
25
MNT-RAD,UPR,LH
5417232
Unavailable
26
RADIATOR,CORE
1241380
Unavailable
27
SCR-HXFL-M6X1.0X25 8.8 RIE
7518533
$1.49
28
WASHER-.281X1.00X.051
7556329
$1.49
29
ISOLATOR-9.14ID,22.35OD,X14.22
5416974
Unavailable
30
SPACER-6.6ID,22.35OD,X13.74
5416975
Unavailable
31
SCREW-HXFL-M6X1.0X12 8.8 ZPB
7517704
$7.19
32
CLAMP,HOSE,(10)
7080650
$3.99
33
SCREW-HXFL-M6X1.0X16 8.8 ZPB
7518591
$3.73
