- CHALLENGER LIMITED (R07) - N21LCARRA2/5/A/B2/5/A/C2/5/A/E2/5/A
CHASSIS, FRAME ASM. - N21LCARR ALL OPTIONS (200704C)

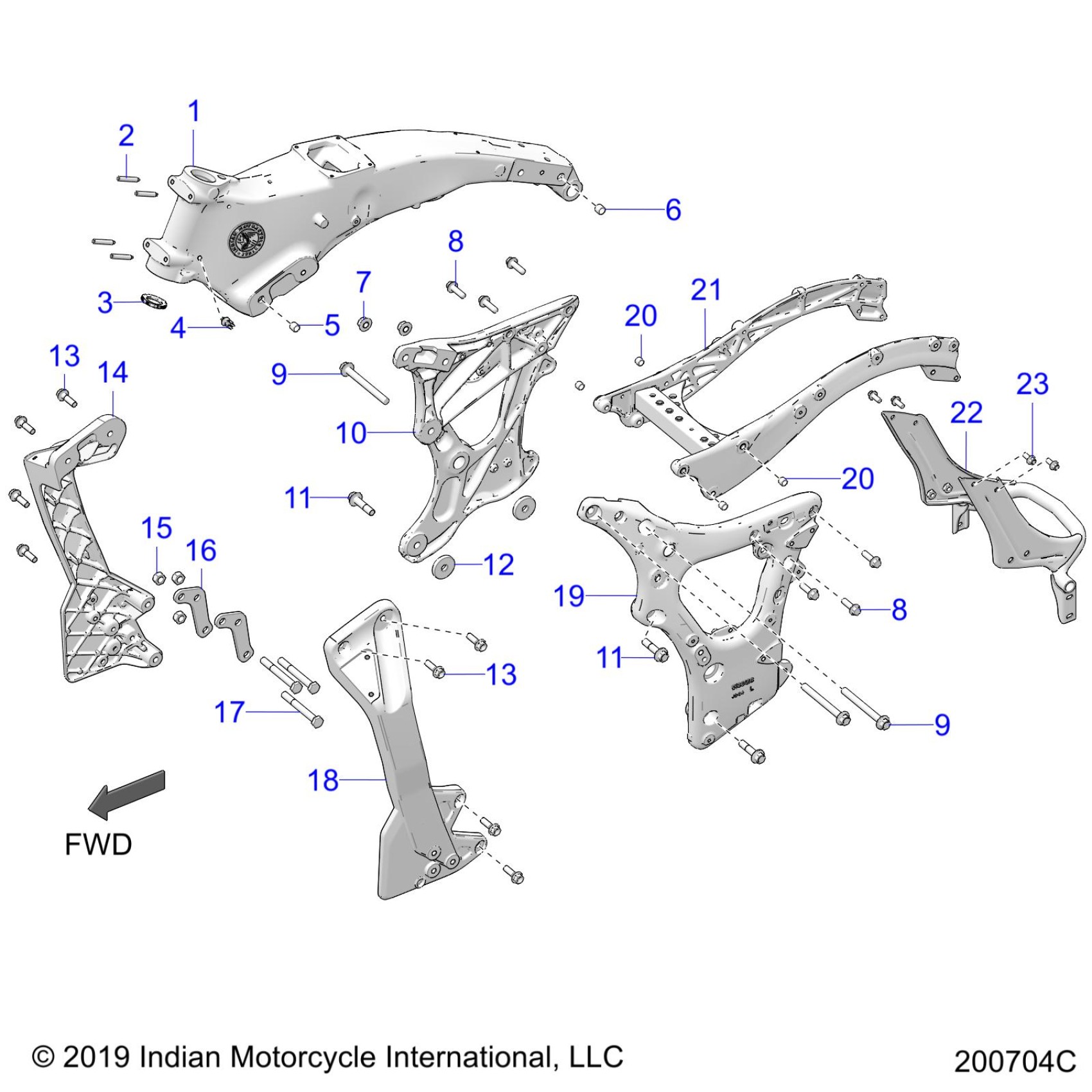

Polaris CHALLENGER LIMITED (R07) - N21LCARRA2/5/A/B2/5/A/C2/5/A/E2/5/A CHASSIS, FRAME ASM. - N21LCARR ALL OPTIONS (200704C) Diagram
#
Description
Price
1
MAINFRAME-FRONT,MACH,JBLK
5143669-626
Unavailable
2
STUD-M8X1.25X45 8.8 ZPC
5142297
Unavailable
3
SEAL-STEERING HEAD
5416315
Unavailable
4
CLIP-ROUTING,8
5454313
Unavailable
5
DWL-HOLLOW,M14X12MM
7662265
Unavailable
6
DOWEL-HOLLOW, M12
7662129
$10.39
7
NUT-HXFL-M12X1.75,CL10,ZB
7547686
$4.79
8
SCREW-M10X1.50X35 HX/FL-Y/D
7518334
$4.79
8
SCREW-M10X1.50X35 HX/FL-Y/D
7518334
$4.79
9
SCREW-HXFL-M12X1.75X120
7519794
$23.99
9
SCREW-HXFL-M12X1.75X120
7519794
$23.99
10
FRAME, MID, RH, BLK (TO 3/15/21)
5138129-521
Unavailable
10
CAST-FRAME,MID,RH,WBLK (FROM 3/15/21)
5143588-521
Unavailable
11
SCREW-HXFL-M12X1.75X50 10.9 ZPB
7519845
Unavailable
11
SCREW-HXFL-M12X1.75X50 10.9 ZPB
7519845
Unavailable
12
SPACER, FRAME
5138436
Unavailable
13
SCREW-HXFL-M10X1.5X35,10.9 ZPB
7520719
Unavailable
13
SCREW-HXFL-M10X1.5X35,10.9 ZPB
7520719
Unavailable
14
FRAME-FRONT,DOWNCAST,RH,JBLK (TO 10/1/2020)
5142094-626
Unavailable
14
DOWNCAST,FRONT,RH,BLK (FROM 10/1/2020)
5143843-626
Unavailable
15
NUT-HEXHD,M12,DIN980V,0600100
7547232
$23.99
16
BRKT-FRONT HEAD,BLK ZINC
5263208-408
Unavailable
17
SCREW-HH-M12X1.75X100 10.9 ZPC
7518125
$11.19
18
FRAME-FRONT,DOWNCAST,LH,JBLK (TO 10/1/2020)
5143285-626
Unavailable
18
DOWNCAST,FRONT,LH,BLK (FROM 10/1/2020)
5143842-626
Unavailable
19
FRAME,MID,LH,E-COAT (TO 3/15/21)
5138128-329
Unavailable
19
CAST-FRAME,MID,LH,E-COAT (FROM 3/15/21)
5143587-329
Unavailable
20
DWL-HOL,M13X10,0600089
7663008
$5.27
20
DWL-HOL,M13X10,0600089
7663008
$5.27
21
WELD-SUBFRAME,REAR
1024782
Unavailable
22
FRAME,REAR,LOWER,E-COAT
1024636-329
Unavailable
23
SCR-HXFL-M8X1.25X20 10.9 ZPB
7517838
$3.99
