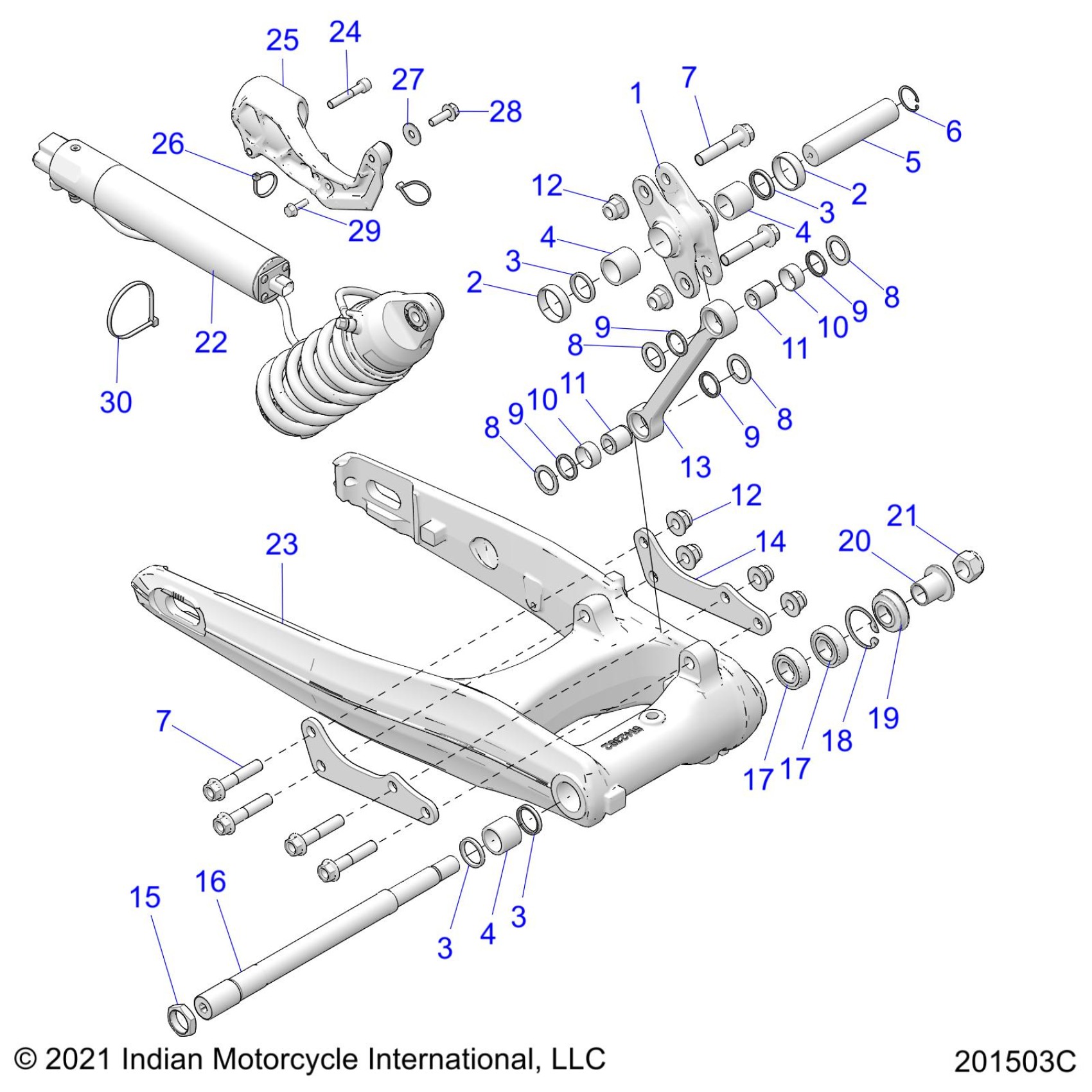

Polaris CHALLENGER ELITE (R01) - N22LCERRA5/B5/C5/E5 SUSPENSION, REAR ASM., SWING ARM and SHOCK (E-PRELOAD) - N22LCERR ALL OPTIONS (201503C) Diagram

#

Description
Price

1

ASM., ROCKER (INCL. 2-4)

1544149

$338.87

2

BEARING, THRUST

3514836

$3.17

2

BEARING, THRUST

3514836

$3.17

3

SEAL-SD25X32X4

3610096

$11.90

3

SEAL-SD25X32X4

3610096

$11.90

3

SEAL-SD25X32X4

3610096

$11.90

3

SEAL-SD25X32X4

3610096

$11.90

4

BEARING, NEEDLE ROLLER

3514544

$23.81

4

BEARING, NEEDLE ROLLER

3514544

$23.81

4

BEARING, NEEDLE ROLLER

3514544

$23.81

5

PIVOT, ROCKER

5138483

$59.99

6

RING-RET, INT,1"

7710509

$10.32

7

SCREW-HXFL-M12X1.75X60 10.9 ZPCD

7520166

$16.99

7

SCREW-HXFL-M12X1.75X60 10.9 ZPCD

7520166

$16.99

8

SPACER-THRUST

5455470

$3.97

8

SPACER-THRUST

5455470

$3.97

8

SPACER-THRUST

5455470

$3.97

8

SPACER-THRUST

5455470

$3.97

9

SEAL-22X28X3

3610325

$4.76

9

SEAL-22X28X3

3610325

$4.76

9

SEAL-22X28X3

3610325

$4.76

10

BEARING-PLAIN

3515125

$8.73

11

PIVOT-PUSHROD

5142437

$13.75

11

PIVOT-PUSHROD

5142437

$13.75

12

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.76

12

NUT-HXFL M12X1.75 8 ZOD NYL

7547441

$4.76

13

ASM-PUSHROD [INCLUDES 8,9,10,11,13]

1024226

$104.99

14

PLATE-GUSSET,SWINGARM,LH

5266303

$32.37

15

NUT-JAM,M18X1.5 ZC

7547693

$10.32

16

PIVOT, SUSPENSION

5138420

$135.54

17

BEARING-BALL,42X20X12,06004DDU

3514414

$15.14

17

BEARING-BALL,42X20X12,06004DDU

3514414

$15.14

18

RING-RTNG,INT,42X1.72,0600097

7670149

$7.14

19

SPACER, PIVOT, LH

5138419

$19.84

20

SPACER, PIVOT, OUTER, LH

5138622

$23.81

21

NUT-M18X1.5,NYLOCK,ZPC

7547685

$10.32

22

SHOCK,E-PRELOAD

1544529

$1,089.99

22

SENSOR-POSITION,E-PRELOAD

1504531

$234.99

23

SWINGARM-MACH

5142382

$954.99

24

SCREW-SH-M8X1.25X45 10.9 ZPB

7520920

$3.17

25

BRACKET,E-ADJUSTER

5144132

$134.99

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

WASHER-8.4X24.0X2.0 ZPB

7556045

$8.73

28

BOLT-M8X1.25X25,HXFLG-OLIVE D

7518514

$1.59

29

SCREW-M6X1.0X20-HX/FL-Y/D

7516822

$2.38

30

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41
