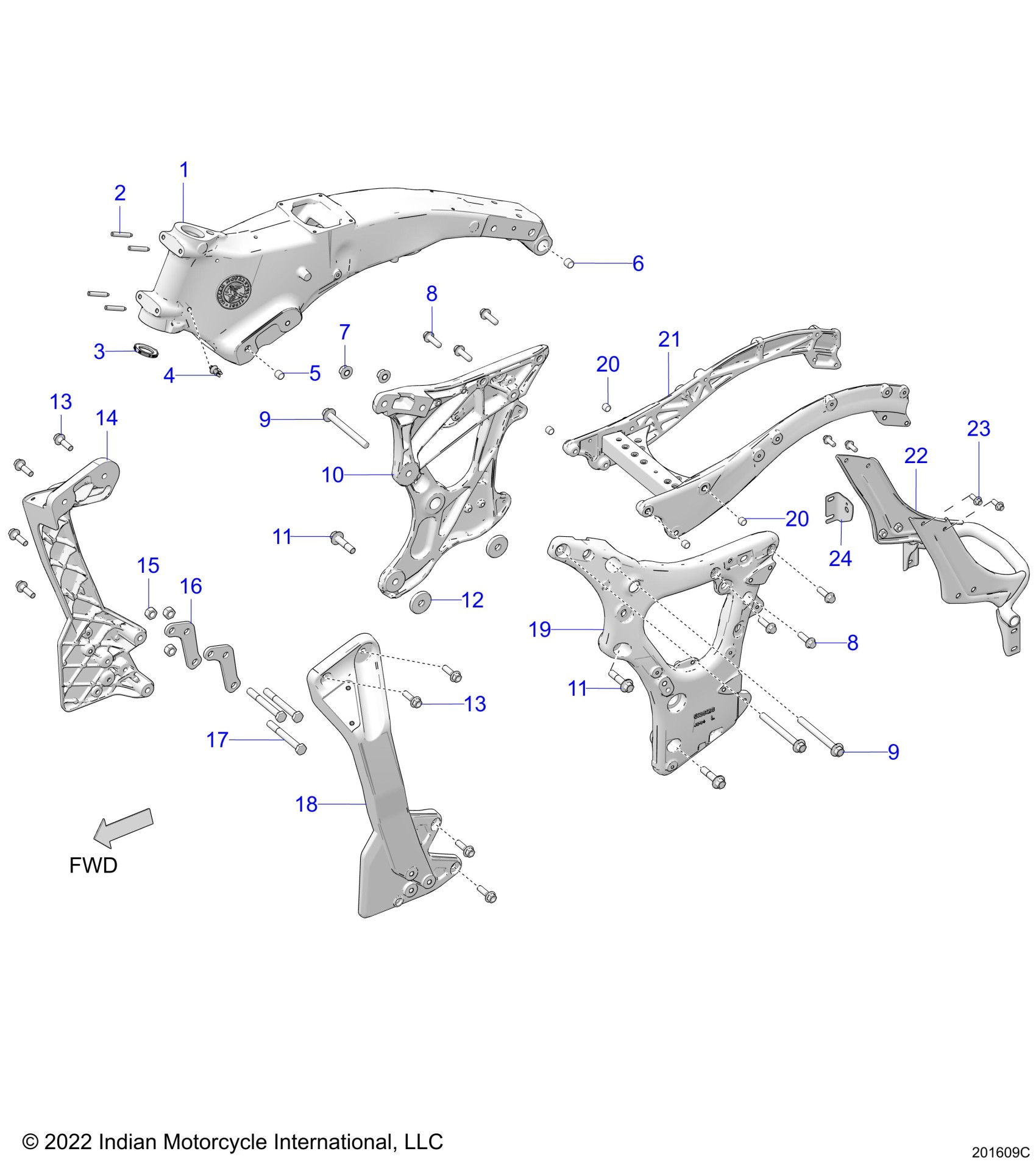

Polaris CHALLENGER ELITE (R01) - N22LCERRA5/B5/C5/E5 CHASSIS, FRAME ASM. - N22LCERR ALL OPTIONS (201609C) Diagram

MAINFRAME-FRONT,MACH,JBLK

5143669-626

$1,324.99

STUD-M8X1.25X45 8.8 ZPC

5142297

$4.76

SEAL-STEERING HEAD-NBR

5418273

$4.76

CLIP-ROUTING,8

5454313

$3.17

DWL-HOLLOW,M14X12MM

7662265

$4.76

DOWEL-HOLLOW, M12

7662129

$10.32

NUT-HXFL-M12X1.75,CL10,ZB

7547686

$4.76

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

SCREW-M10X1.50X35 HX/FL-Y/D

7518334

$4.76

SCREW-HXFL-M12X1.75X120

7519794

$28.49

SCREW-HXFL-M12X1.75X120

7519794

$28.49

CAST-FRAME,MID,RH,WBLK

5143588-521

$369.99

SCREW-HXFL-M12X1.75X50 10.9 ZPB

7519845

$7.14

SCREW-HXFL-M12X1.75X50 10.9 ZPB

7519845

$7.14

SPACER, FRAME

5138436

$6.35

SCREW-HXFL-M10X1.5X35,10.9 ZPB

7520719

$4.76

SCREW-HXFL-M10X1.5X35,10.9 ZPB

7520719

$4.76

DOWNCAST,FRONT,RH,BLK

5143843-626

$404.99

NUT-HEXHD,M12,DIN980V,0600100

7547232

$23.81

BRKT-FRONT HEAD,BLK ZINC

5263208-408

$11.32

SCREW-HH-M12X1.75X100 10.9 ZPC

7518125

$11.11

DOWNCAST,FRONT,LH,BLK

5143842-626

$404.99

CAST-FRAME,MID,LH,E-COAT

5143587-329

$839.99

DWL-HOL,M13X10,0600089

7663008

$5.99

DWL-HOL,M13X10,0600089

7663008

$5.99

WELD-SUBFRAME,REAR

1024782

$904.99

FRAME,REAR,LOWER,E-COAT

1024636-329

$269.99

SCR-HXFL-M8X1.25X20 10.9 ZPB

7517838

$4.35

BRACKET, ANTENNA

5258057

$11.32
