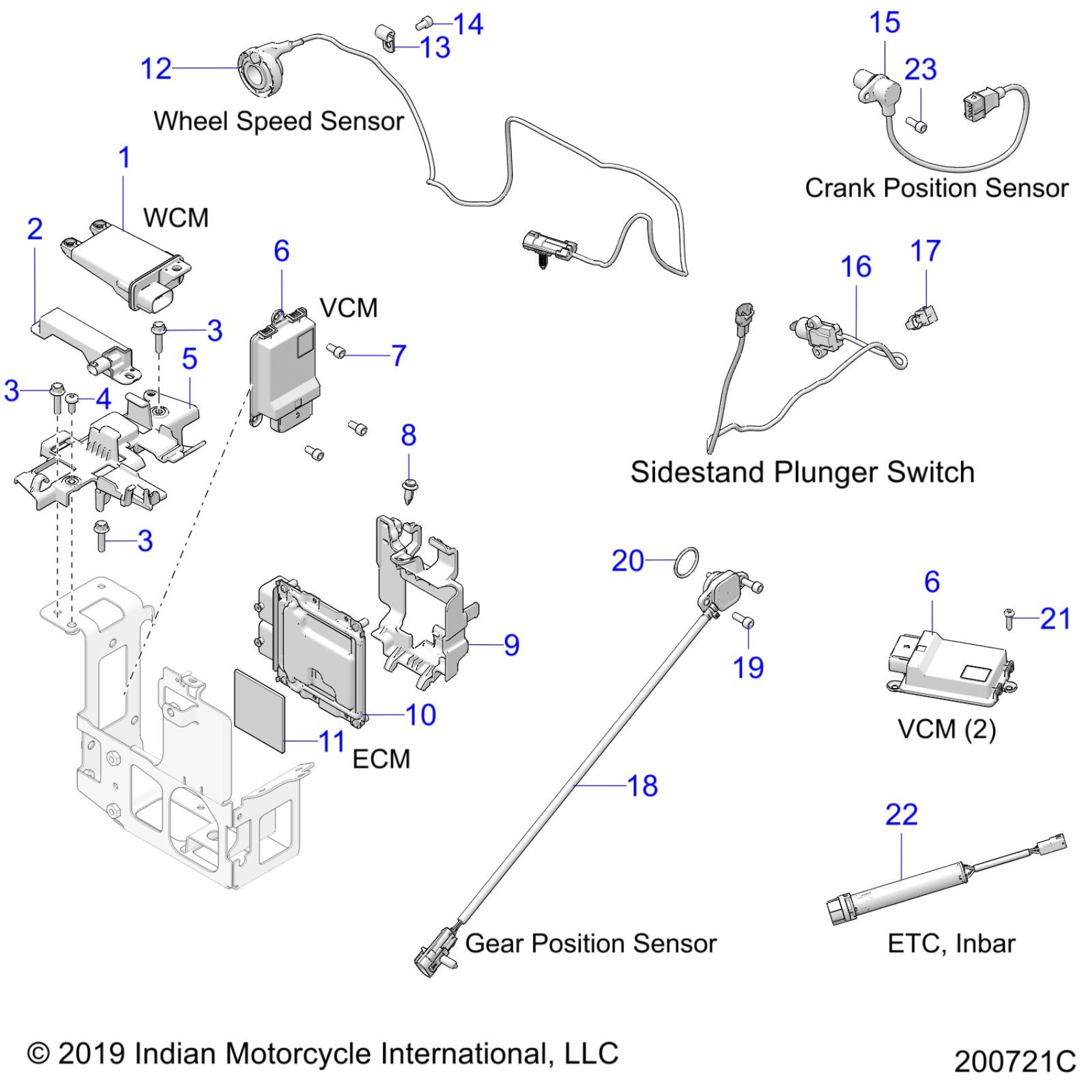

Polaris CHALLENGER DARK HORSE (R11) - N20LCDRRA4/H/L/B4/H/L/C4/H/L/E4/H/L ELECTRICAL, COMPONENTS 2 - N20LCDRR ALL OPTIONS (200721C) Diagram

#

Description
Price

1

ASM., WCM,GEN1,PROGRAMMED,V1

2414339

Unavailable

2

ANTENNA-LF,21KHZ

4018381

Unavailable

3

SCREW-HXFL-M6X1.0X25 8.8 ZPC

7518329

Unavailable

3

SCREW-HXFL-M6X1.0X25 8.8 ZPC

7518329

Unavailable

3

SCREW-HXFL-M6X1.0X25 8.8 ZPC

7518329

Unavailable

4

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.19

5

BRKT-UNDERSEAT-WIRE MGMT

5454991

Unavailable

6

VCM-GEN2,UNPROGRAMMED,V1 [SVC][DEALER INSTALL REQUIRED]

4017765

Unavailable

6

VCM-GEN2,UNPROGRAMMED,V1 [SVC][DEALER INSTALL REQUIRED]

4017765

Unavailable

7

SCREW-SH-M6X1.0X12 8.8 ZPB

7517781

$3.19

8

RIVET, TUFFLOK

7661855

$1.49

9

BRKT-UNDERSEAT,RETENTION

5455947

Unavailable

10

ECM-HARD,MG1,112P DEPOP [SVC]

4018203

$648.22

11

FOAM-ECM,MOUNT

5522319

Unavailable

12

SENSOR,WHEEL SPEED,20X23.5,LONG

4018362

Unavailable

13

CLAMP-REAR BRAKE

7080983

$3.99

14

SCREW-SH-M6X1.0X15 10.9 ZPC

7517337

Unavailable

15

Sensor, Crank Position

2411589

$79.99

16

SWITCH, SIDESTAND PLUNGER

4014289

Unavailable

17

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.79

18

SENSOR-GEAR POSITION,N-6

4015665

Unavailable

19

SCREW-SH-M6X1.0X16 8.8 ZPY D204

7519303

$3.99

20

O-RING-26.65X2.62,0600083

5412530

$1.59

21

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

22

ASM., ETC,INBAR

2413257

Unavailable

23

SCREW-SH-M6X1.0X15 10.9 ZPC

7517272

$7.19
