- Challenger CS TOWER, Edition 2, 2006
01- Engine And Air Intake Silencer

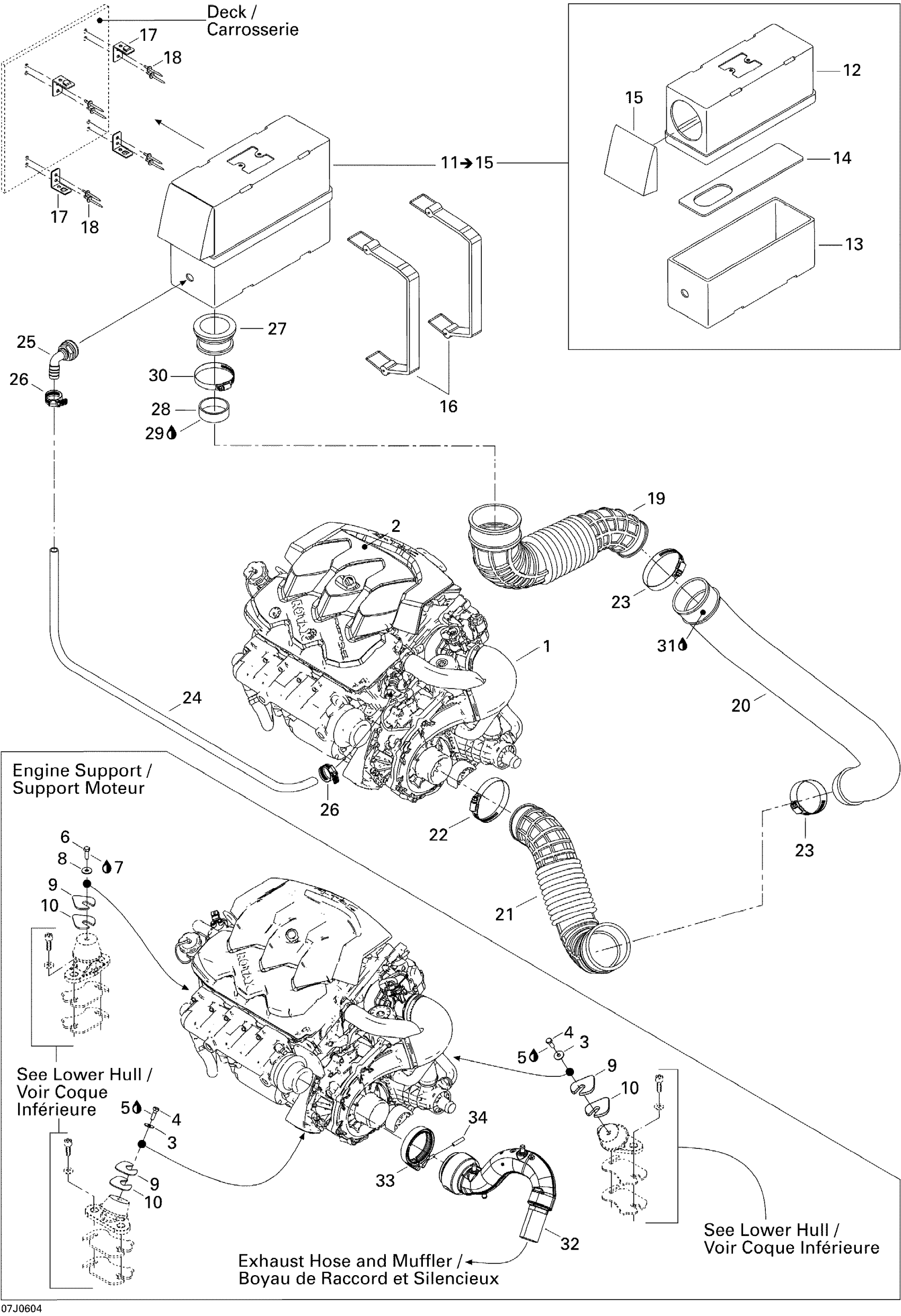

Sea-doo Challenger CS TOWER, Edition 2, 2006 01- Engine And Air Intake Silencer Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
Flat Washer 8 mm, Stainless
234082600
$2.43
4
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
5
Loctite 243, 10 ml
293800060
$21.49
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
10
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
11
Air Silencer Ass'y | Includes 13 to 14
204250333
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Retainer Strap
293850097
$11.64
17
Strap Clip 90°
204060017
Unavailable
18
Pop Rivet 3/16"
293150008
$0.50
19
Intake Hose
204250331
Unavailable
20
Intake Hose
204250332
Unavailable
21
Intake Hose
204250331
Unavailable
22
Tridon Clamp
293650179
$11.49
23
Tridon Clamp
293650179
$11.49
24
HOSE 3/4 - Call your local BRP dealership
204250353
Unavailable
25
Fitting 90°
204250335
Unavailable
26
Tridon Gear Clamp
293650051
$4.19
27
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
28
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
29
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
30
Tridon Clamp
293650179
$11.49
31
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
32
EXHAUST PIPE - Call your local BRP dealership
274001049
Unavailable
33
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
34
Polyurethane Hose 10000Mm Long
219704410
$56.99
