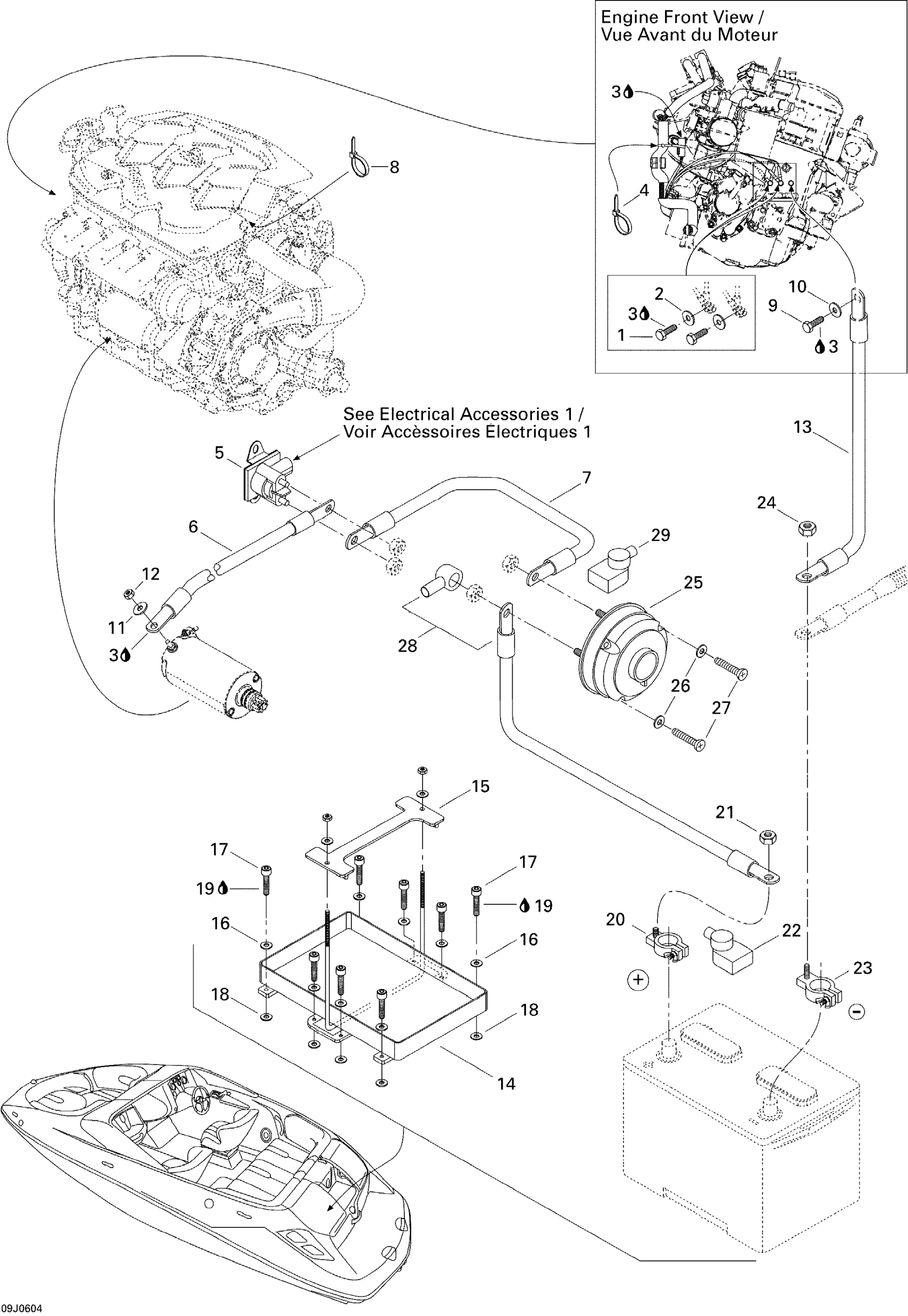

Sea-doo Challenger CS TOWER, Edition 1, 2006 Electrical System Diagram

#

Description
Price

1

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

2

Stainless Flat Washer M6

234061600

$0.33

3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

4

Tie-Rap 180 mm

414115200

$0.11

5

Starter Relay

278003012

$42.49

6

RED CABLE - Call your local BRP dealership

204470798

Unavailable

7

RED CABLE - Call your local BRP dealership

204470799

Unavailable

8

Tie Wrap 142 mm

293750002

$1.25

9

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

10

Flat Washer M6, Stainless

234062600

$0.77

11

Stainless Flat Washer M6

234061600

$0.33

12

Hex. Elastic Stop Nut M6

232561600

$1.15

13

RH GROUND CABLE - Call your local BRP dealership

204470199

Unavailable

14

BATTERY SUPPORT - Call your local BRP dealership

204471008

Unavailable

15

TOP BATTERY SUPPORT - Call your local BRP dealership

204471290

Unavailable

16

FLAT WASHER - Call your local BRP dealership

204100069

Unavailable

17

Socket Head Screw M6 X 25

205062560

$1.69

18

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

POSITIVE BATTERY POLE - Call your local BRP dealership

204470349

Unavailable

21

HEX. NUT 3/8-16 - Call your local BRP dealership

211100063

Unavailable

22

RED BOOT - Call your local BRP dealership

204470269

Unavailable

23

NEGATIVE BATTERY POLE - Call your local BRP dealership

204470348

Unavailable

24

HEX. NUT 5/16?-18 - Call your local BRP dealership

204100052

Unavailable

25

BATTERY SWITCH - Call your local BRP dealership

204470814

Unavailable

26

Flat Washer M5, Stainless

234051600

$0.77

27

PHILLIPS HEAD SCREW M4.8 X 38 - Call your local BRP dealership

250000089

Unavailable

28

POSITIVE SWITCH CABLE - Call your local BRP dealership

204470250

Unavailable

29

RED BOOT - Call your local BRP dealership

204470269

Unavailable
