- Challenger CS TOWER, Edition 1, 2006
10- Electrical Accessories 2

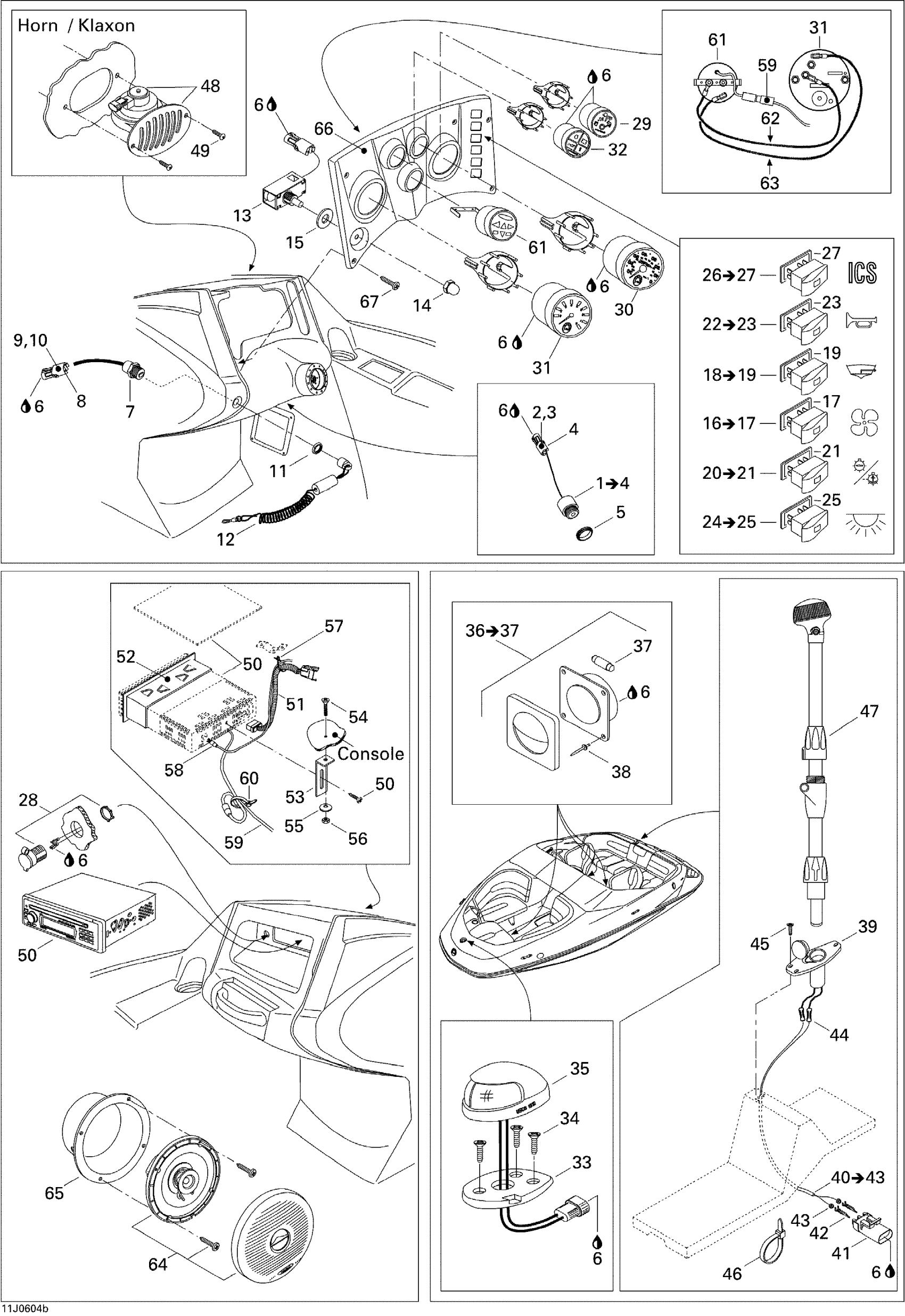

Sea-doo Challenger CS TOWER, Edition 1, 2006 10- Electrical Accessories 2 Diagram
#
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Buzzer Nut
278000707
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Safety Nut (DESS Switch)
278002963
$3.28
12
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
13
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
14
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
15
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
16
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
17
Gasket
204470132
Unavailable
18
Bilge Pump Switch Ass'y | Includes 18 to 19
204470974
Unavailable
19
Gasket
204470132
Unavailable
20
Navigation Light Switch Ass'y | Includes 20 to 21
204470975
Unavailable
21
Gasket
204470132
Unavailable
22
HORN SWITCH ASS'Y - Call your local BRP dealership | Includes 22 to 23
204470976
Unavailable
23
Gasket
204470132
Unavailable
24
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership | Includes 24 to 25
204470977
Unavailable
25
Gasket
204470132
Unavailable
26
Inlet Clearance System Switch Ass'y | Includes 26 to 27
204471047
Unavailable
27
Gasket
204470132
Unavailable
28
DC Outlet
710001248
$37.99
29
Fuel Gauge
204470985
Unavailable
30
Speedometer Gauge
204470986
Unavailable
31
Tachometer Gauge
204470988
Unavailable
32
Engine Warning Gauge
204470989
Unavailable
33
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
34
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
35
Front Lamp
204470372
Unavailable
36
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
37
BULB - Call your local BRP dealership
204470081
Unavailable
38
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
39
REAR LIGHT BASE - Call your local BRP dealership
204470990
Unavailable
40
REAR LIGHT HARNESS - Call your local BRP dealership | Includes 39 to 42
204470980
Unavailable
41
Female Housing, 2 Circuits
278000217
$9.59
42
Male Terminal | XT Models
278000222
$3.19
43
Wire Seal
278000218
$4.39
44
Connector With Heat Shrink
202000435
Unavailable
45
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
46
Tie Wrap 142 mm
293750002
$1.25
47
REAR LIGHT POLE - Call your local BRP dealership
204470979
Unavailable
48
HORN - Call your local BRP dealership
204470801
Unavailable
49
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
50
Compact Disk Stereo Player/radio
204471057
Unavailable
51
Stereo Adaptor Harness
204470930
Unavailable
52
STEREO TRIM RING - Call your local BRP dealership
204471010
Unavailable
53
RADIO SUPPORT - Call your local BRP dealership
204470981
Unavailable
54
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
55
Flat Washer M6, Stainless
234062600
$0.77
56
Hex. Elastic Stop Nut M6
232561600
$1.15
57
TIE RAP WITH DART - Call your local BRP dealership
204130098
Unavailable
58
Antenna
204470931
Unavailable
59
Stereo Remote Cable
204470993
Unavailable
60
Tie Wrap 94 mm | 4X4
293750001
$1.03
61
Cd Player/radio Remote Control
204471058
Unavailable
62
Remote Control Ground Wire
204471088
Unavailable
63
Back Light Wire Ass'y, Blue
204470996
Unavailable
64
Speaker, White
204471059
Unavailable
65
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
66
Fascia Ass'y
204470949
Unavailable
67
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
