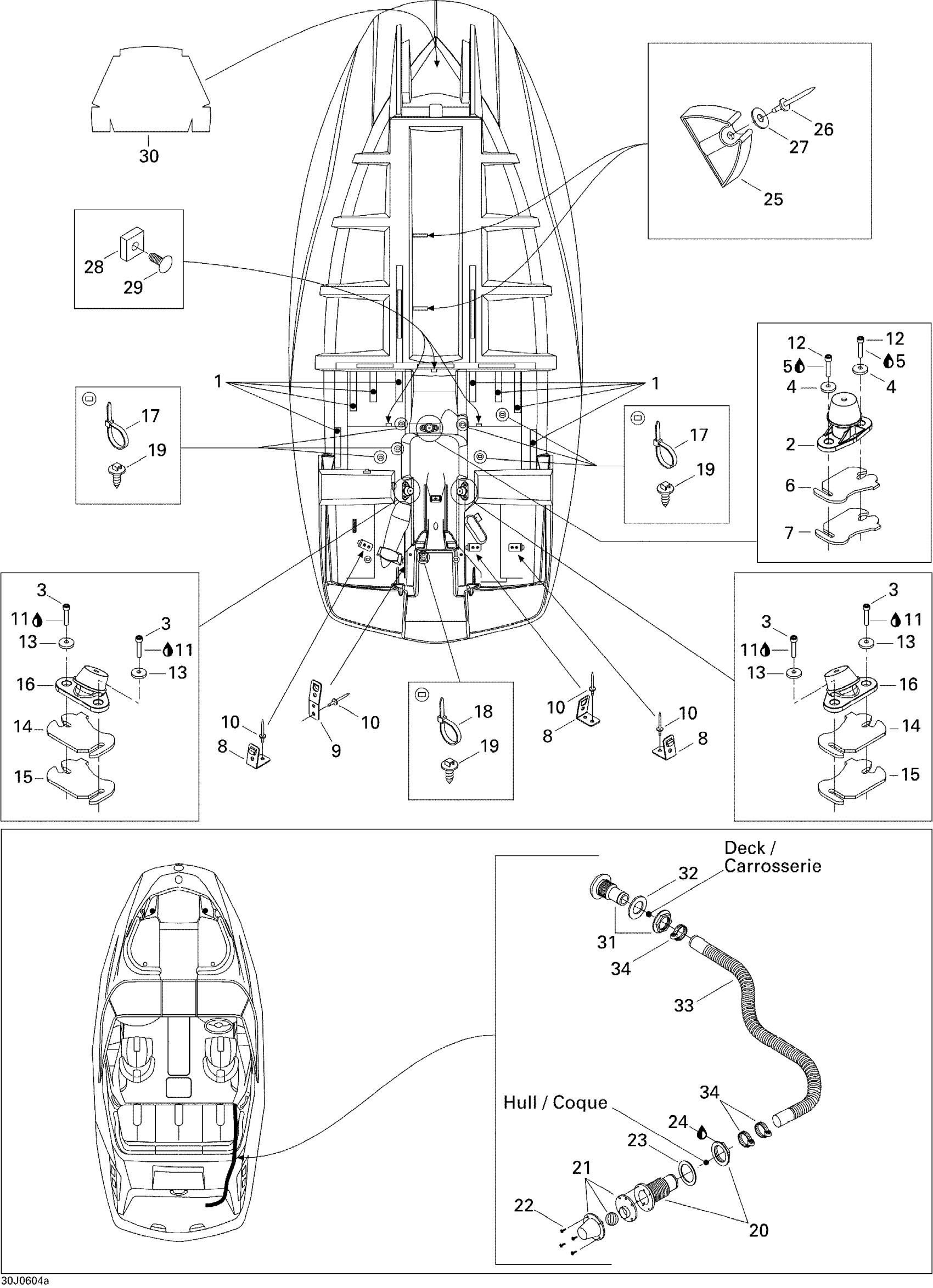

Sea-doo Challenger CS TOWER, Edition 1, 2006 Lower Hull Diagram

#

Description
Price

1

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

2

RUBBER MOUNT - Call your local BRP dealership

270000671

Unavailable

3

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

4

Cone Washer

250200018

$5.61

5

Loctite 243, 10 ml

293800060

$21.49

6

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

7

Shim 1.3 mm

270000762

$12.99

8

Strap Clip 90°

204060017

Unavailable

9

Strap Clip

293850030

$11.12

10

Pop Rivet 3/16"

293150088

$0.99

11

Loctite 243, 10 ml

293800060

$21.49

12

Socket Head Screw M8 X 45

205084560

$3.59

13

Cone Washer

250200018

$5.61

14

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

15

Shim 1.3 mm

270000762

$12.99

16

Engine Support Ass'y

270001081

$109.99

17

Tie-Rap 180 mm

414115200

$0.11

18

Tie Wrap 368 mm

293750008

$1.04

19

Mount Dart

293730040

$1.04

20

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

21

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

22

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

23

GASKET - Call your local BRP dealership

292800106

Unavailable

24

Silicone Sealant 51388, 300 ml

296000309

$36.99

25

Pole Support

291000642

Unavailable

26

RIVET - Call your local BRP dealership

293150065

Unavailable

27

Flat Washer M5, Stainless

234051600

$0.77

28

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

29

Black, Dart

293730006

$0.99

30

Carpet

204060983

Unavailable

31

FITTING - Call your local BRP dealership

293710060

Unavailable

32

GASKET - Call your local BRP dealership

292800106

Unavailable

33

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

34

Norma Clamp

293650074

$17.05
