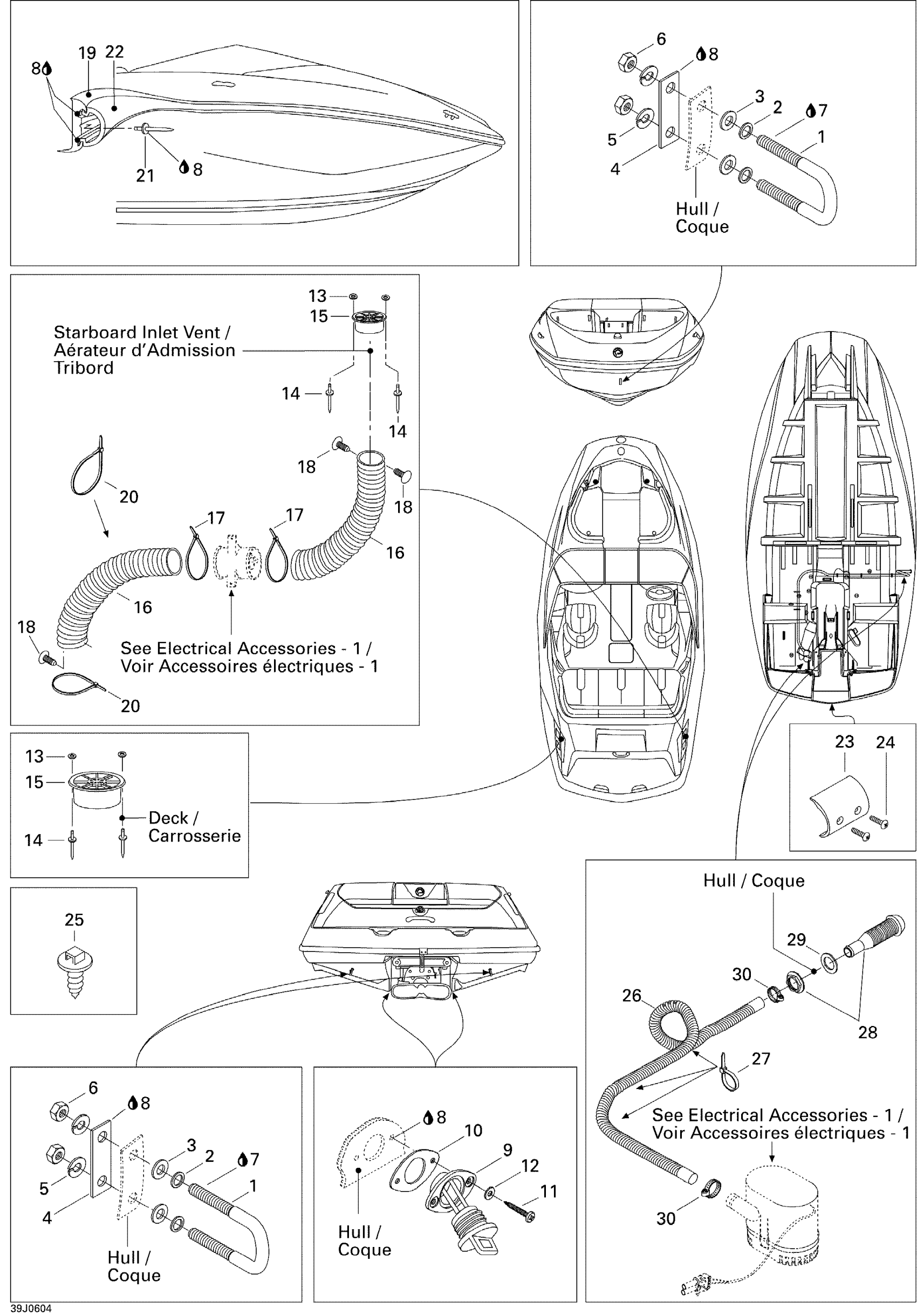

Sea-doo Challenger CS TOWER, Edition 1, 2006 09- Hull Diagram
#
Description
Price
1
U-CLAMP - Call your local BRP dealership
292000063
Unavailable
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Loctite 271, 10 ml
293800005
$26.99
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Drain Plug
292000187
$14.49
10
GASKET - Call your local BRP dealership
293250030
Unavailable
11
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
12
Flat Washer 4 mm, Stainless
234041600
$1.15
13
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
14
Pop Rivet 3/16"
293150088
$0.99
15
Vent Grille 4 - Call your local BRP dealership
204050637
Unavailable
16
Was 204050122 Vent Hose 4"
219704358
$25.99
17
Tie Wrap 368 mm
293750008
$1.04
18
Black, Dart
293730006
$0.99
19
Bumper, Charcoal Gray
204050629
Unavailable
20
Tie Wrap 368 mm
293750008
$1.04
21
Pop Rivet 3/16"
293150013
$1.37
22
Bumper Trim, Charcoal Gray
204050626
Unavailable
23
Bumper Cover, Charcoal Gray
204050630
Unavailable
24
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
25
Black, Dart
293730006
$0.99
26
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
27
Tie Wrap 368 mm
293750008
$1.04
28
Fitting
293710162
$13.49
29
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
30
Tridon Clamp
293650016
$10.99
