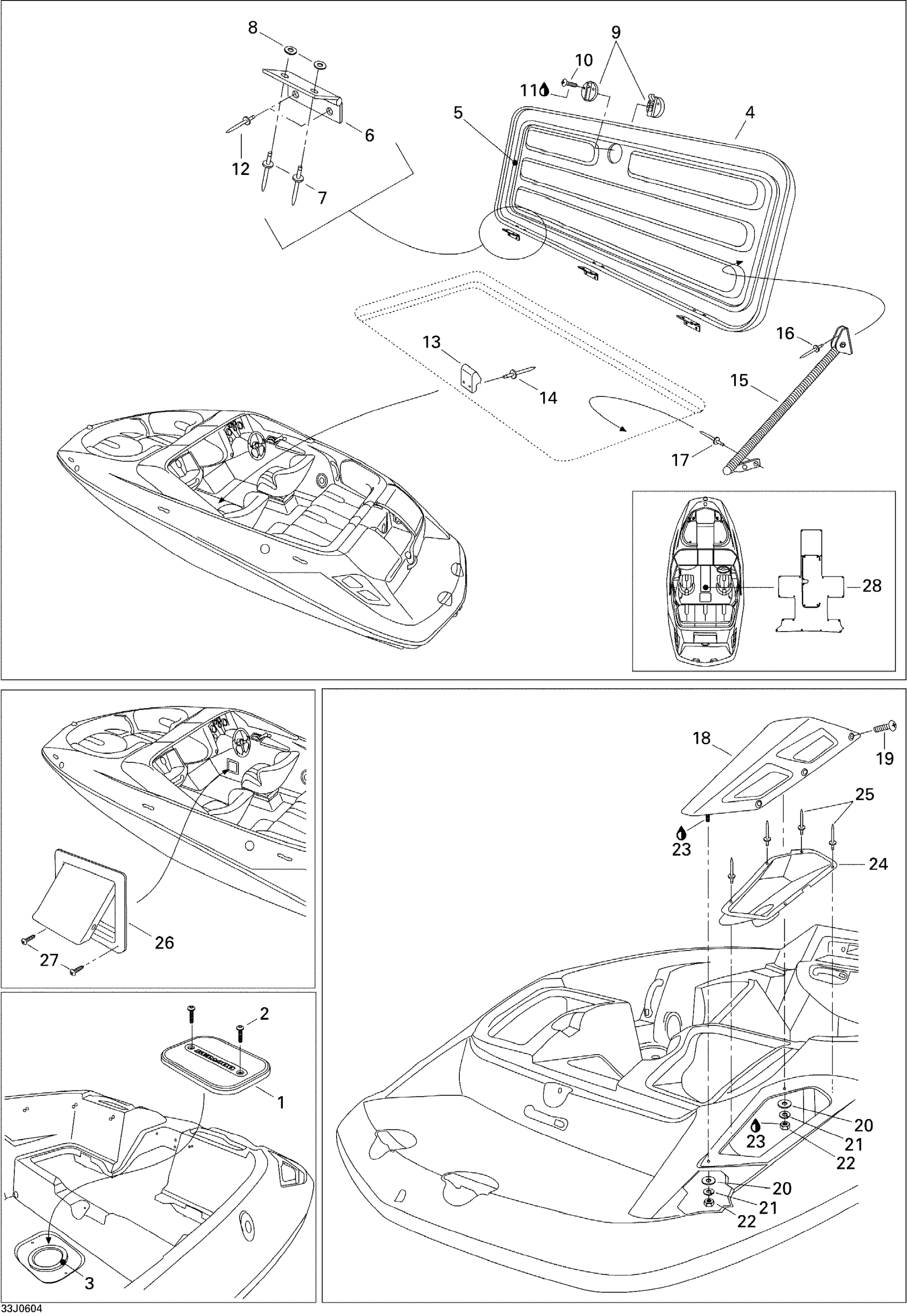

Sea-doo Challenger CS TOWER, Edition 1, 2006 Central Cover And Accessories Diagram

#

Description
Price

1

Access Door

204072462

Unavailable

2

Socket Screw M6 X 40

205464060

$2.22

3

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

4

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

5

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

6

HINGE - Call your local BRP dealership

204072601

Unavailable

7

Pop Rivet 3/16"

293150088

$0.99

8

Flat Washer M5, Stainless

234051600

$0.77

9

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

10

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

11

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

12

Pop Rivet 3/16"

293150005

$0.52

13

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

14

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

15

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

16

Pop Rivet 3/16"

204000081

$1.49

17

Pop Rivet 3/16"

293150043

$2.09

18

VENT COVER ASS'Y, PORT SIDE - Call your local BRP dealership | Port Side

204072292

Unavailable

18

VENT COVER ASS'Y, STARBOARD - Call your local BRP dealership | Starboard

204072293

Unavailable

19

PHILLIPS SCREW 1 - Call your local BRP dealership

204100154

Unavailable

20

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

21

Lock Washer 1/4”

211200025

$1.29

22

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

VENT INLET, PORT SIDE - Call your local BRP dealership | Port Side

291003407

Unavailable

24

VENT - INLET / STBD - Call your local BRP dealership | Starboard This part replaces 204072231.

204073836

Unavailable

25

Pop Rivet 1/8”

293150015

$0.40

26

ACCESS DOOR - Call your local BRP dealership

204072447

Unavailable

27

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

28

Cockpit Carpet

204072382

Unavailable
