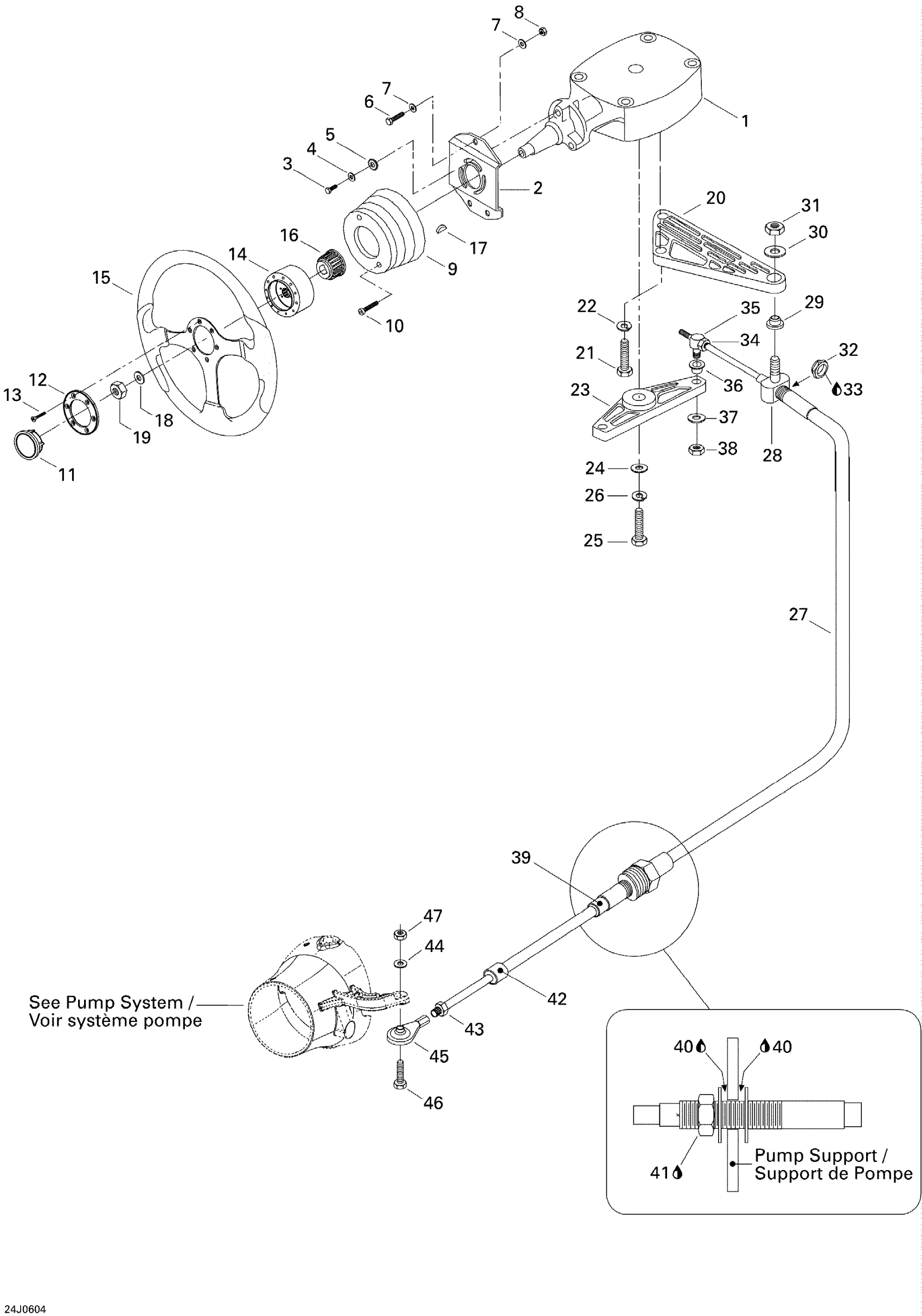

Sea-doo Challenger CS TOWER, Edition 1, 2006 07- Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership

204390244

Unavailable

2

Support

277000383

Unavailable

3

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Serrated Lock Washer 8 mm

234481608

$1.15

6

Hex. Screw M6 X 40

207164060

$3.38

7

Stainless Flat Washer M6

234061600

$0.33

8

Hex. Elastic Stop Nut M6

232561600

$1.15

9

COLLAR, BLACK - Call your local BRP dealership

204390030

Unavailable

10

SCREW 8-32 X 1-1/4 - Call your local BRP dealership

204390059

Unavailable

11

Center Cap

204390327

Unavailable

12

CENTER RING - Call your local BRP dealership

204390423

Unavailable

13

SCREW PACK - Call your local BRP dealership

204390329

Unavailable

14

Nylon Steering Hub

204390443

Unavailable

15

Steering Wheel

204390424

Unavailable

16

Steering Hub Insert

204390444

Unavailable

17

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

18

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

19

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

20

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

21

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

22

Lock Washer 1/4”

211200025

$1.29

23

ARM - Call your local BRP dealership

204390040

Unavailable

24

Flat Washer M6, Stainless

234062600

$0.77

25

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

26

Lock Washer 1/4”

211200025

$1.29

27

STEERING CABLE - Call your local BRP dealership

204390434

Unavailable

28

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

29

Flanged Bushing

293350014

$12.99

30

Flat Washer 10 mm, Stainless

234001600

$1.15

31

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

32

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

33

Loctite 243, 10 ml

293800060

$21.49

34

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

35

PIVOT - Call your local BRP dealership

277000456

Unavailable

36

BUSHING - Call your local BRP dealership

204130095

Unavailable

37

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

38

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

39

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

40

Silicone Sealant 51388, 300 ml

296000309

$36.99

41

Loctite 243, 10 ml

293800060

$21.49

42

Terminal Wiper

277000441

$11.99

43

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

44

Stainless Flat Washer M6

234061600

$0.33

45

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

46

Hex. Screw M6 X 35

207063560

$2.22

47

Hex. Elastic Stop Nut M6

232561600

$1.15
