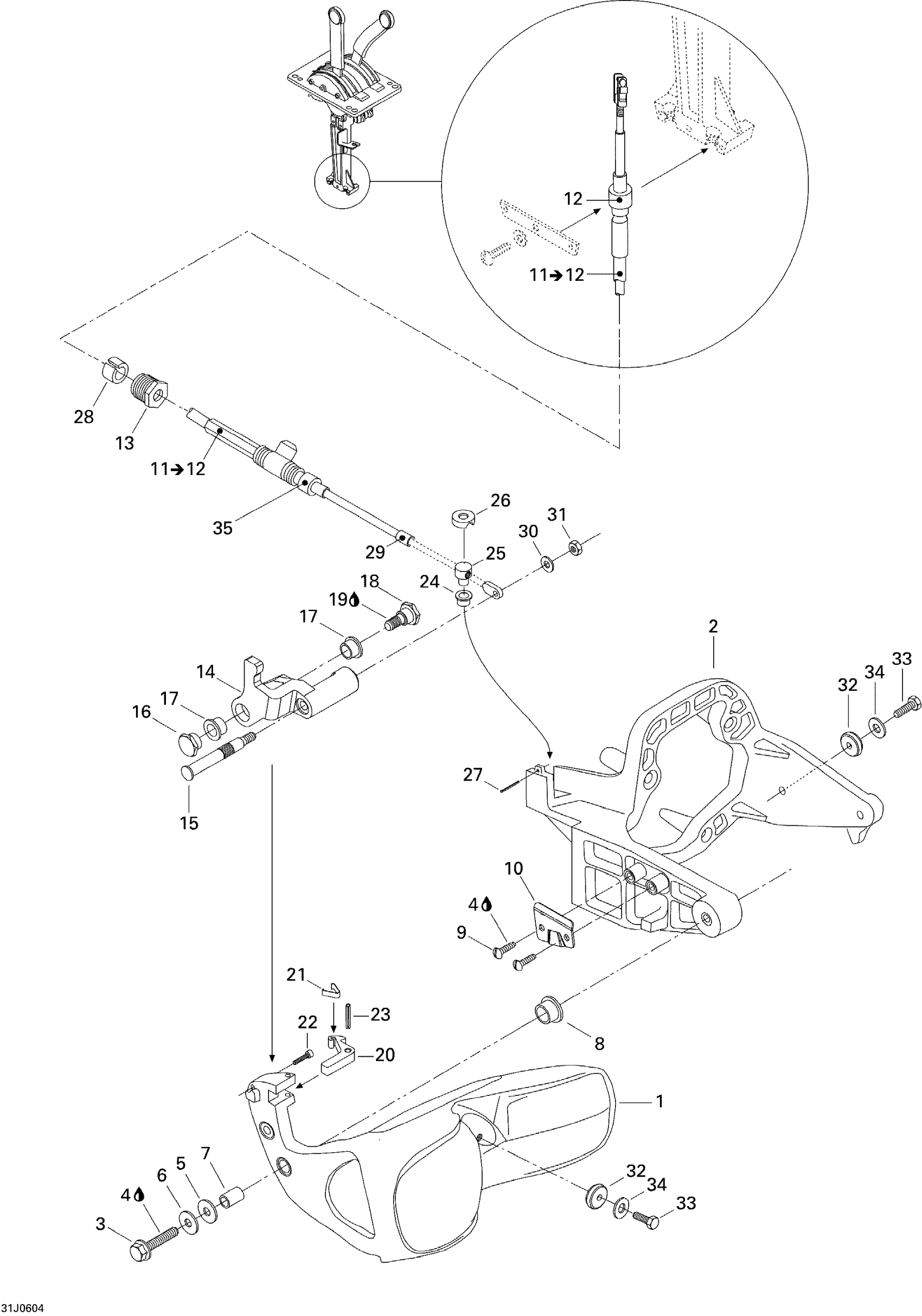

Sea-doo Challenger CS TOWER, Edition 1, 2006 Reverse Diagram

#

Description
Price

1

Reverse Gate

204170213

$289.99

2

Reverse Gate Support

204170214

$189.99

3

Hex. Flange Screw 18 X 1.56

204100163

$9.09

4

Loctite 243, 10 ml

293800060

$21.49

5

WASHER, NYLON - Call your local BRP dealership

204100128

Unavailable

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

Sleeve

204170177

$33.99

8

Bushing

204130237

$12.11

9

SCREW-PAN HD. 10-24 UNC X .50 SS - Call your local BRP dealership

204100122

Unavailable

10

STOP PAWL - Call your local BRP dealership

271000485

Unavailable

11

Reverse Cable

268000109

$148.49

12

End Piece

277001583

$14.49

13

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

14

NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.

0460979

$224.99

15

PIN - Call your local BRP dealership

204130037

Unavailable

16

SHOULDER NUT - Call your local BRP dealership

204100123

Unavailable

17

BUSHING - Call your local BRP dealership

204130036

Unavailable

18

SHOULDER SCREW - Call your local BRP dealership

204100124

Unavailable

19

Loctite 271, 10 ml

293800005

$26.99

20

HOOK - Call your local BRP dealership

204170220

Unavailable

21

Spring

271000431

$15.49

22

Socket Head Screw

204100127

$3.70

23

Pin

211400009

$1.68

24

Bushing

204130237

$12.11

25

THREADED END PIECE - Call your local BRP dealership

204130038

Unavailable

26

Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.

296000396

Unavailable

27

Cotter Pin

204130040

$2.85

28

RUBBER GROMMET - Call your local BRP dealership

204130041

Unavailable

29

Wiper Rod

277001582

$11.11

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

NEEDS DESCRIPTION This part replaces 204100034.

0460000

$0.60

32

Anode Zinc

271001813

$18.99

33

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

34

Stainless Flat Washer M6

234061600

$0.33

35

End Piece

277001583

$14.49
