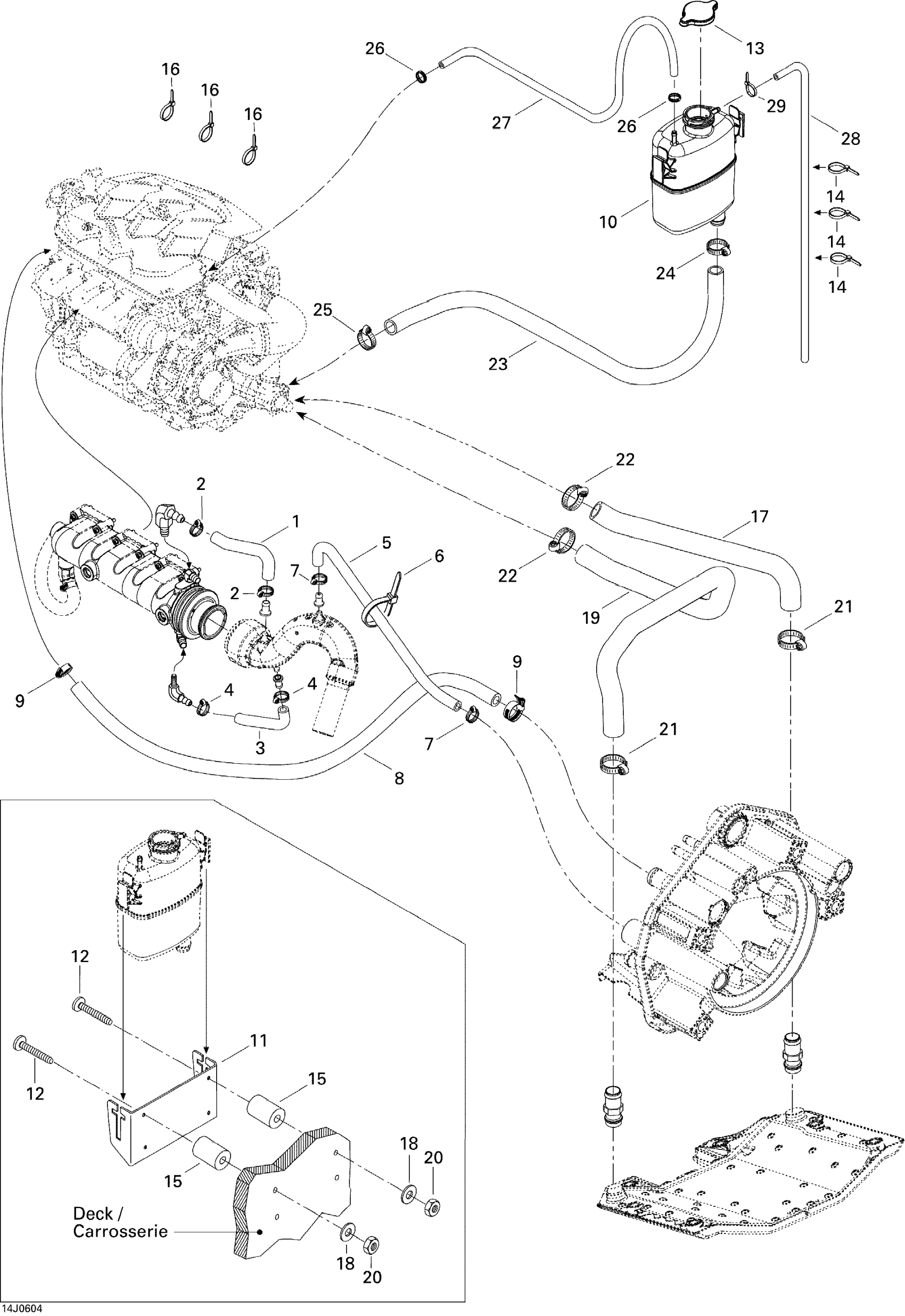

Sea-doo Challenger CS TOWER, Edition 1, 2006 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.07

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$3.07

5

Was 276000001 Hose 12.5 mm

219704394

$49.22

6

Tie Wrap 368 mm

293750008

$0.97

7

Tridon Gear Clamp

293650172

$3.07

8

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

9

Tridon Gear Clamp

293650051

$4.15

10

Coolant Tank

276000086

$100.72

11

Coolant Tank Bracket

204300165

Unavailable

12

Phillips Screw M5 X 35

208653560

$2.12

13

Pressure Cap | Includes 720 to 720a

276000100

$23.85

14

Tie Wrap 142 mm

293750002

$1.01

15

BUSHING - Call your local BRP dealership

204300166

Unavailable

16

Tie Wrap 142 mm

293750002

$1.01

17

RH Radiator Hose

276000248

$52.21

18

Flat Washer 5 mm, Stainless

234052600

$0.73

19

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

20

Hex. Elastic Nut M5 | X

232551600

$1.04

21

Tridon Gear Clamp

293650045

$5.18

22

Tridon Gear Clamp

293650045

$5.18

23

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

24

Tridon Gear Clamp

293650051

$4.15

25

Tridon Gear Clamp

293650019

$5.52

26

Oetiker Gear Clamp

293650025

$2.82

27

Was 275500549 Hose 1/4"

219704357

$178.33

28

Polyurethane Hose 10000Mm Long

219704410

$52.96

29

Tie Wrap 94 mm | 4X4

293750001

$0.96
