- CHALLENGER BASE/LIMITED (R11) - N20LCARRA1/2/5/B1/2/5/C1/2/5/E1/2/5/BRRAT/BT/CT/ET
ENGINE, CYLINDER HEAD, CAMSHAFT and VALVE ASM. - N20LCARR/N20LCBRR ALL OPTIONS (200686C)

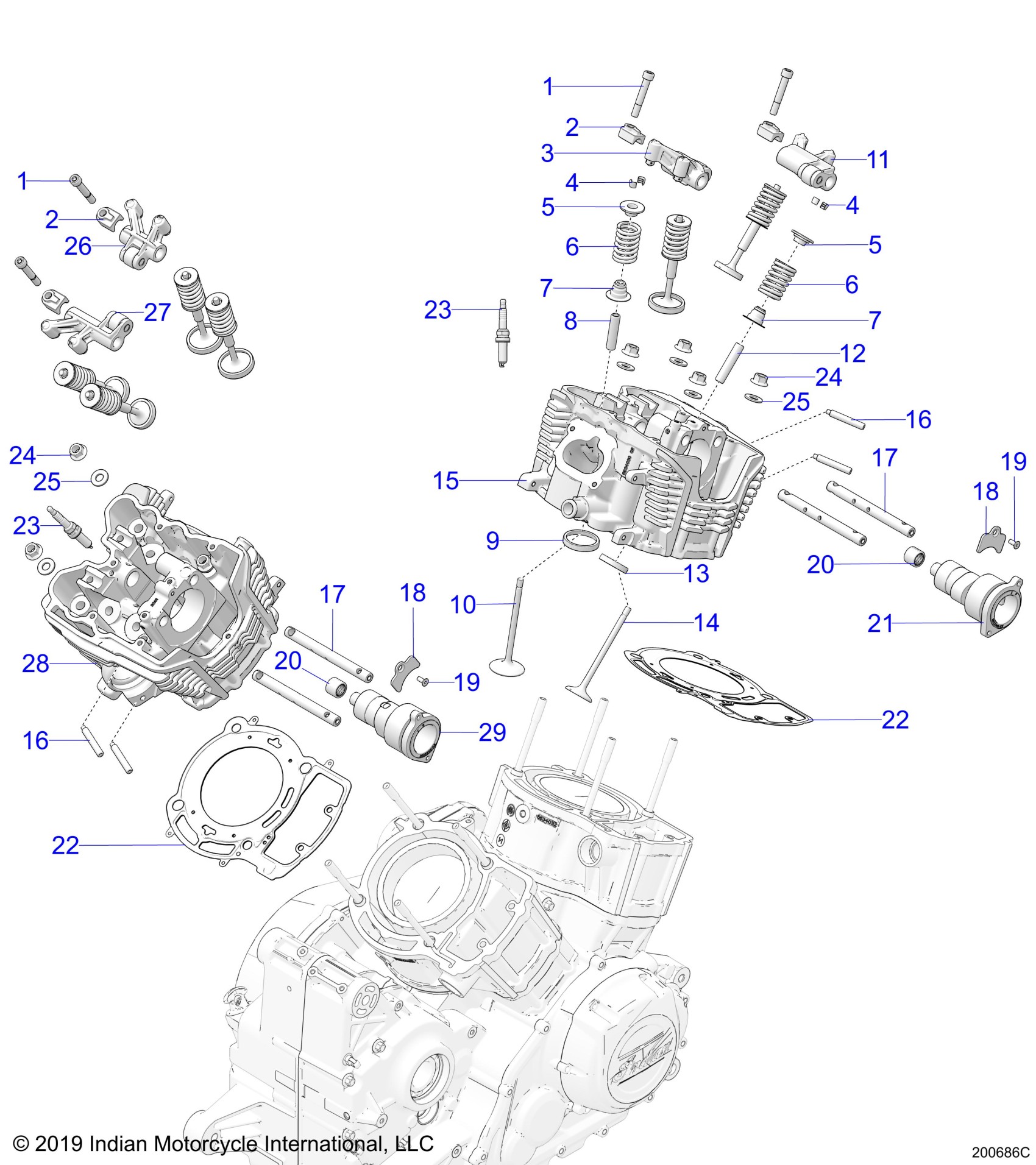

Polaris CHALLENGER BASE/LIMITED (R11) - N20LCARRA1/2/5/B1/2/5/C1/2/5/E1/2/5/BRRAT/BT/CT/ET ENGINE, CYLINDER HEAD, CAMSHAFT and VALVE ASM. - N20LCARR/N20LCBRR ALL OPTIONS (200686C) Diagram
#
1
BOLT-ROCKER SHAFT
7520547
Unavailable
1
BOLT-ROCKER SHAFT
7520547
Unavailable
2
CAP-ROCKER SHAFT
3023253
Unavailable
2
CAP-ROCKER SHAFT
3023253
Unavailable
3
ASM., ROCKER ARM,INTAKE,FRONT
3023114
Unavailable
4
KEEPER-VALVE
3022759
$3.19
4
KEEPER-VALVE
3022759
$3.19
5
RETAINER-VALVE SPRING
5139720
$7.19
5
RETAINER-VALVE SPRING
5139720
$7.19
6
SPRING-VALVE
7045097
Unavailable
6
SPRING-VALVE
7045097
Unavailable
7
SEAL-VALVE STEM,SPRING SEAT
3022758
Unavailable
7
SEAL-VALVE STEM,SPRING SEAT
3022758
Unavailable
8
GUIDE-VALVE, INTAKE
3022755
Unavailable
9
SEAT-VALVE,INTAKE
5139718
Unavailable
10
VALVE-INTAKE
3022756
Unavailable
11
ASM., ROCKER ARM,EXHAUST,FRONT
3023115
Unavailable
12
GUIDE-VALVE,EXHAUST
3022813
Unavailable
13
SEAT-VALVE,EXHAUST
5139719
Unavailable
14
VALVE-EXHAUST
3022757
Unavailable
15
ASM., CYLINDER HEAD,FRONT [INCL. 1-15,17-21]
1205854-650
Unavailable
15
CYLINDER HEAD,FRONT [INCL. 8,9,12,13]
3023460-650
Unavailable
16
STUD-M8X1.25X45,SOCKET,8.8
7520858
Unavailable
16
STUD-M8X1.25X45,SOCKET,8.8
7520858
Unavailable
17
ASM., ROCKER SHAFT
3023637
Unavailable
17
ASM., ROCKER SHAFT
3023637
Unavailable
18
PLATE-THRUST,CAMSHAFT
5260790
Unavailable
18
PLATE-THRUST,CAMSHAFT
5260790
Unavailable
19
SCR-FLHD-M5X0.8X12 10.9 P&O
7517255
$7.19
19
SCR-FLHD-M5X0.8X12 10.9 P&O
7517255
$7.19
20
BEARING-CAMSHAFT
3514915
Unavailable
20
BEARING-CAMSHAFT
3514915
Unavailable
21
ASM., CAMSHAFT, FRONT
3023348
Unavailable
22
GASKET-CYLINDER HEAD
5814888
Unavailable
22
GASKET-CYLINDER HEAD
5814888
Unavailable
23
SPARKPLUG-10MM
3070482
Unavailable
23
SPARKPLUG-10MM
3070482
Unavailable
24
NUT-HXFLGHD,M10,0600087
7547017
$5.59
24
NUT-HXFLGHD,M10,0600087
7547017
$5.59
25
WASHER-10.5X22.0X2.0
7555986
$10.39
25
WASHER-10.5X22.0X2.0
7555986
$10.39
26
ASM., ROCKER ARM,INTAKE,REAR
3023116
Unavailable
27
ASM., ROCKER ARM,EXHAUST,REAR
3023117
Unavailable
28
ASM., CYLINDER HEAD,REAR [INCL. 1,2,4-10,12-14,17-20,26-29]
1205855-650
Unavailable
28
CYLINDER HEAD,REAR [INCL. 8,9,12,13]
3023461-650
Unavailable
29
ASM., CAMSHAFT, REAR
3023349
Unavailable
