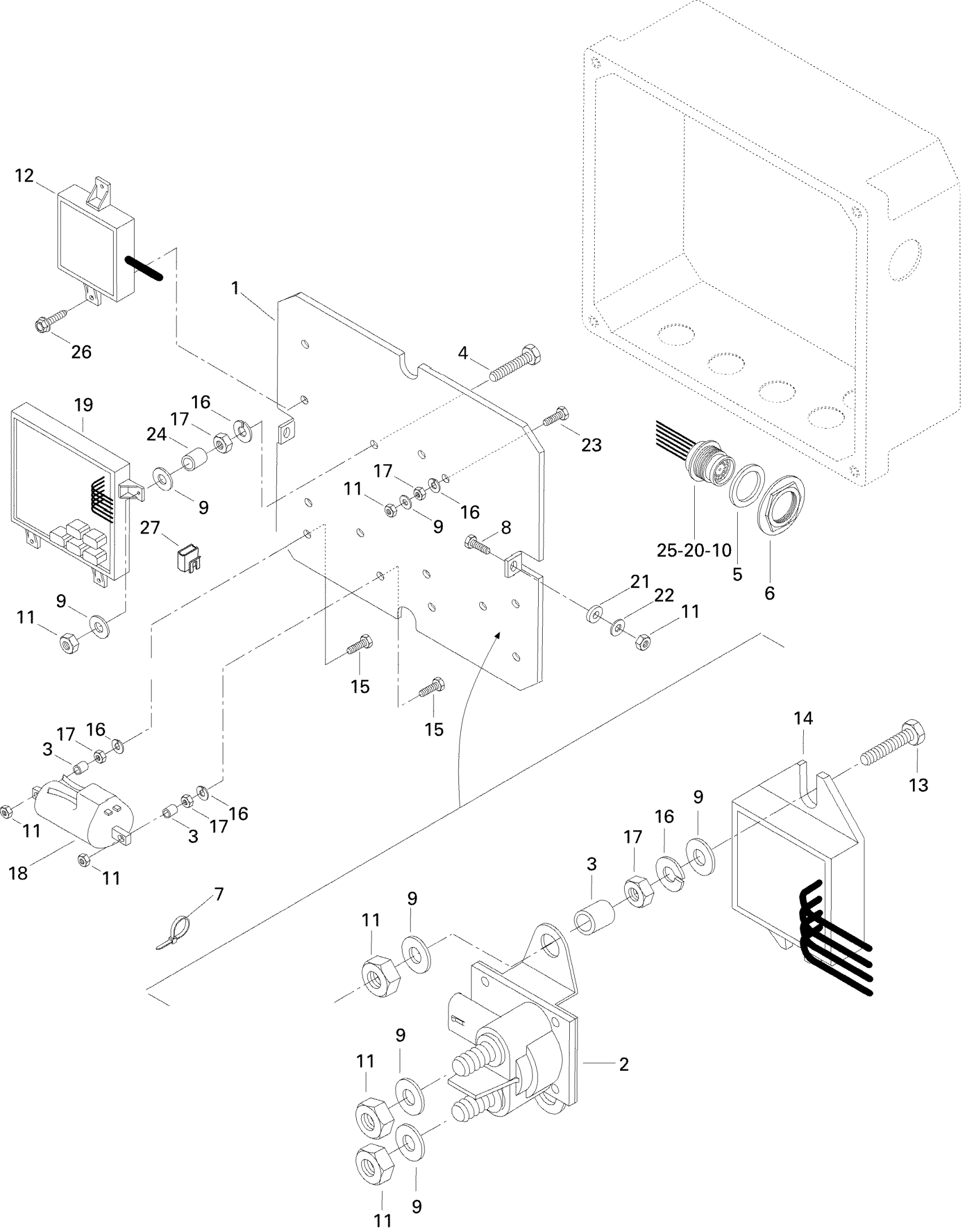

Sea-doo Challenger, 5896, 1996 10- Electrical Box Diagram

#

Description
Price

1

Mounting Plate

278000748

Unavailable

2

Starter Relay

278003012

$42.49

3

SPACER - Call your local BRP dealership

278000235

Unavailable

4

Hex. Screw M6 X 50

207165060

$0.92

5

Gasket(Canon)

293250053

Unavailable

6

Nut(Canon)

211100029

Unavailable

7

Tie Wrap 142 mm

293750002

$1.25

8

Hex. Forming Screw M6 X 20

207162060

$1.29

9

Stainless Flat Washer M6

234061600

$0.33

10

Male Terminal

278000869

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Electronic Module Ass‘y (Cover)

278000858

Unavailable

13

Hex. Screw M6 X 35

207163560

$1.49

14

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

15

Hex. Screw M6 X 35

207163560

$1.49

16

Lock Washer Helical M6

234161601

$1.15

17

Hex. Nut M6

232061600

$1.15

18

Ignition Coil

278000383

$99.49

19

Electronic Module | Includes 10, 20, 25

278000746

Unavailable

20

Male Terminal(Canon)

278000868

Unavailable

21

Rubber Washer 6 mm

211200032

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

Hex. Screw M6 X 25

207162560

$1.47

24

Spacer

278000876

Unavailable

25

Female Housing(Canon)

278000867

Unavailable

26

Taptite Screw M6 x 16

211000080

Unavailable

27

Fuse Holder

204470059

Unavailable
