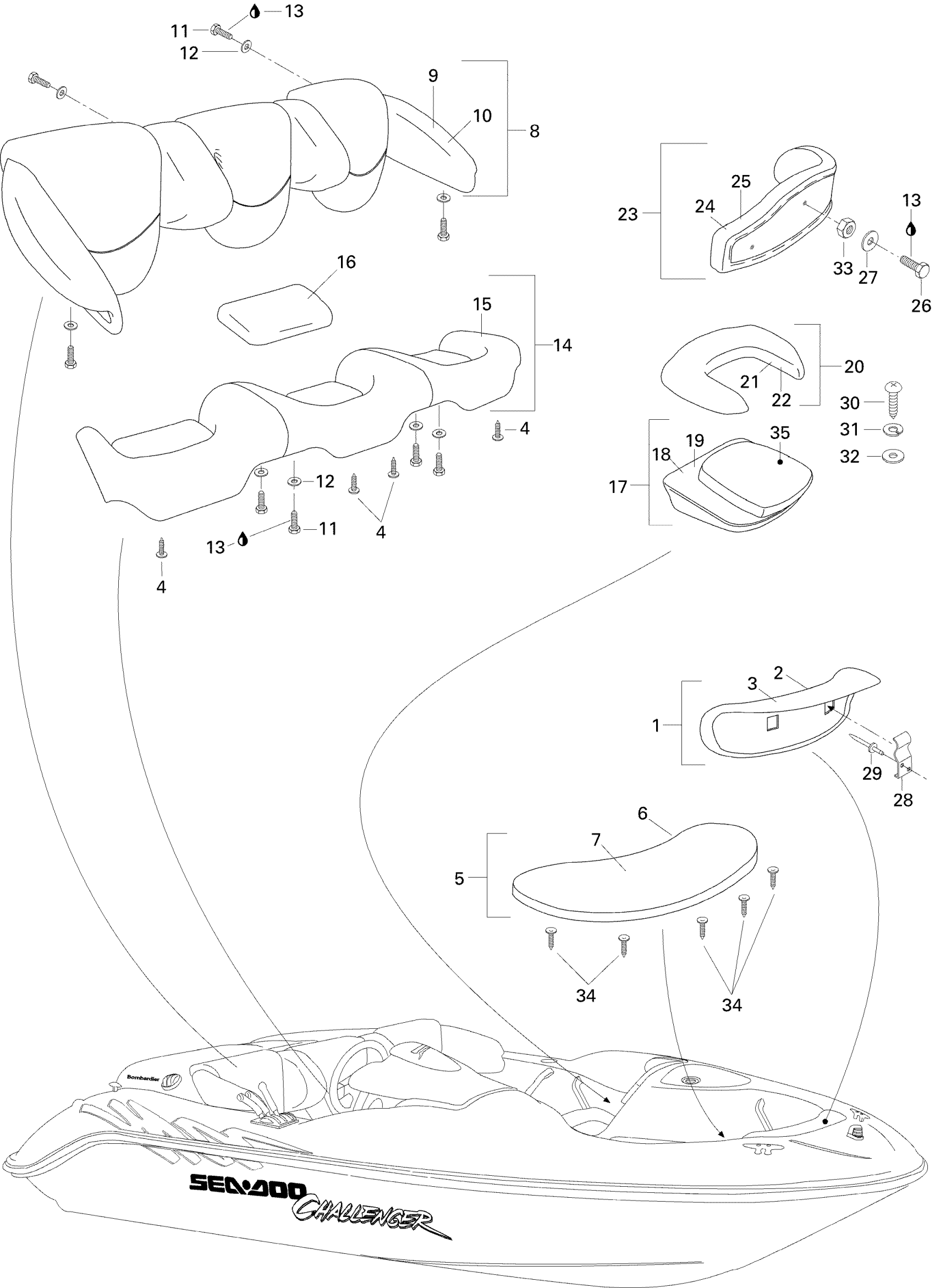

Sea-doo Challenger, 5896, 1996 Seat Diagram

#

Description
Price

1

FRONT BACKREST ASS'Y - Call your local BRP dealership | Includes 1 - 3.

269000328

Unavailable

2

Front Backrest Cover

269000330

Unavailable

3

Front Backrest Foam

269000331

Unavailable

4

Black Dart

293730014

$0.99

5

Front Seat Ass'y | Includes 5 - 6.

269000270

Unavailable

6

Front Seat Cover

269000271

Unavailable

7

Front Seat Foam 1"

269000272

Unavailable

7

Front Seat Foam 1/2"

269000273

Unavailable

8

Rear Backrest Ass'y | Includes 8 to 10

269000274

Unavailable

9

RR Backrest Cover (Armrest)

269000394

Unavailable

9

RR Central Backrest Cover (White)

269000280

Unavailable

9

RR Backrest Cover (Printed)

269000386

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hex. Screw M6 X 25

207162560

$1.47

12

Flat Washer M6, Stainless

234062600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Rear Seat Ass'y | Includes 14 to 16

269000293

Unavailable

15

RR Seat Cover (Marine Green)

269000396

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Rear Seat Pillow Cover

269000231

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Keeper Seat | Includes 17 - 19.

269000276

Unavailable

18

Seat Base Cover

269000332

Unavailable

19

Seat Foam

269000333

Unavailable

20

Keeper Seat Ring | Includes 20 - 22.

269000296

Unavailable

21

Keeper Seat Ring Cover

269000335

Unavailable

22

Keeper Seat Ring Foam

269000336

Unavailable

23

Keeper Seat Backrest | Includes 24 - 26.

269000277

Unavailable

24

Keeper Seat Backrest Cover

269000338

Unavailable

25

Keeper Seat Backrest Foam

269000339

Unavailable

26

Set Screw M5 x 30

216553060

Unavailable

27

Flat Washer M5, Stainless

234051600

$0.77

28

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

29

Pop Rivet 3/16"

293150043

$2.09

30

Screw 6.3 x 32

216663260

Unavailable

31

Lock Washer Helical M6

234161601

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Elastic Nut M5 | X

232551600

$1.15

34

Black, Dart

293730006

$0.99

35

Not Available As Spare Part - Friction Washer

Unavailable
