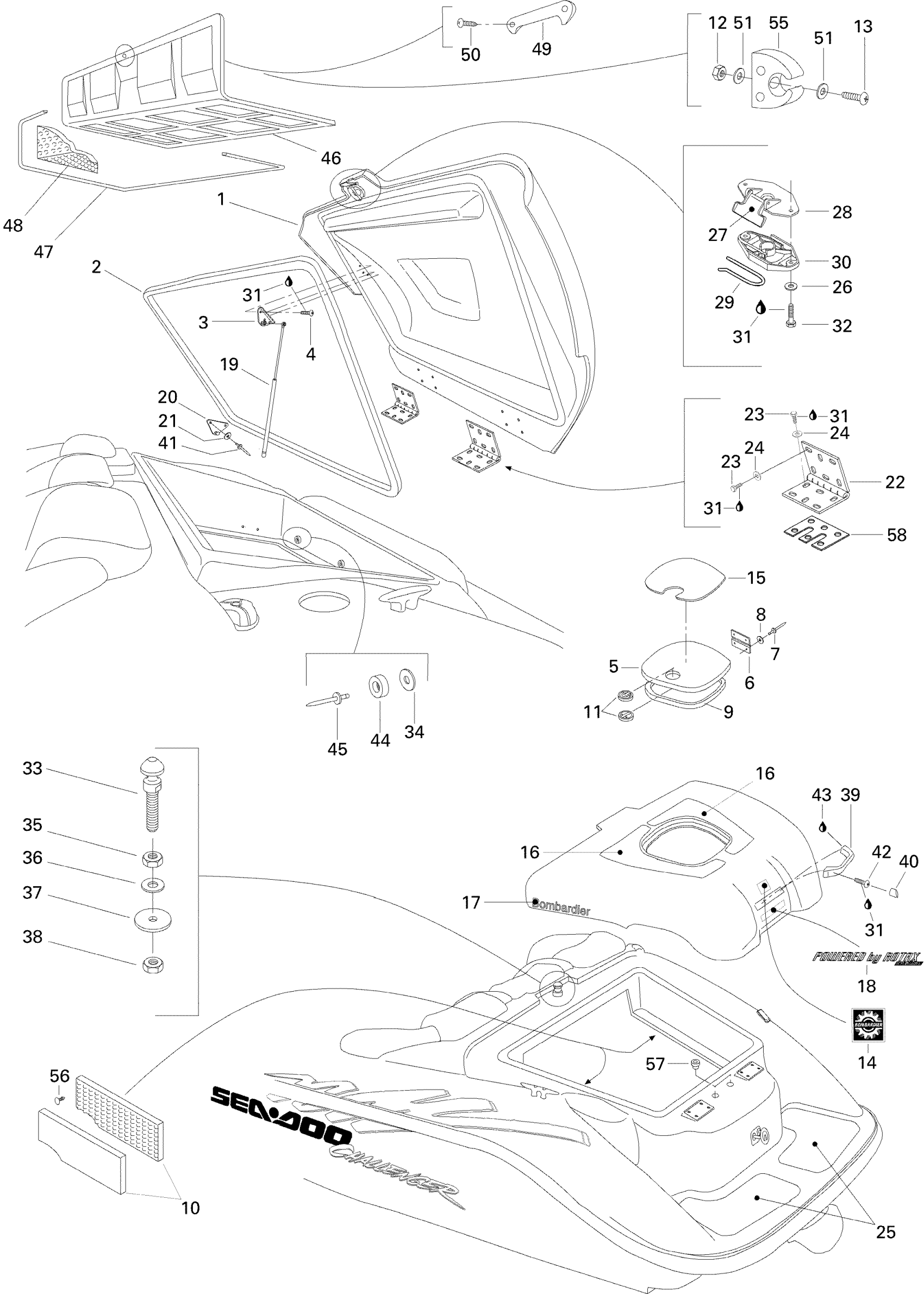

Sea-doo Challenger, 5896, 1996 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

295500284

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

5

Rope Box Cover

269700030

Unavailable

6

Hinge

269700031

$9.99

7

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

8

Flat Washer M3, Stainless

234032600

$0.55

9

Was 293200017 Neoprene Seal

219704365

$149.99

10

LH Engine Compartment Foam

237500012

Unavailable

10

Engine Foam R.H

237500011

Unavailable

11

Latch (White)

291000836

Unavailable

12

Elastic Stop Nut M4

232541600

$1.15

13

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

14

<> Logo Decal

219900049

Unavailable

15

Rope Box Cover Carpet

291000732

Unavailable

16

Carpet RH

291000733

Unavailable

16

Carpet LH

291000734

Unavailable

17

<> Decal

219900586

Unavailable

18

Decal <>

219900606

Unavailable

19

Cylinder

291000822

Unavailable

20

Shock Support

291000615

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.77

22

Hinge

269500240

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Platform Carpet RH

291000735

Unavailable

25

Platform Carpet LH

291000736

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Spring

269700017

$9.19

30

Latch Ass'y

269700109

$24.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Hex. Screw M6 X 25

207162560

$1.47

33

Latch Stud

204700001

Unavailable

34

Flat Washer

211200028

Unavailable

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

38

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

39

Grip Handle (Grape) | Includes 16 - 17.

291000739

Unavailable

40

Snap Cap (Grape)

293000006

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

Rubber Stopper

293830043

Unavailable

45

Pop Rivet 3/16"

293150014

$1.09

46

Access Cover

295500299

Unavailable

47

Seal Tray 1000Mm Long

219704368

$13.99

48

Luggage Foam

237500013

Unavailable

49

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

50

Hex. Flange Screw K40 X 16

241141660

$1.48

51

Flat Washer 4 mm

234040600

$0.55

52

Not Available As Spare Parts

XXX

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Not Available As Spare Parts

XXX

Unavailable

55

Pole Support

291000642

Unavailable

56

Black, Dart

293730006

$0.99

57

GROMMET - Call your local BRP dealership

293720017

Unavailable

58

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable
