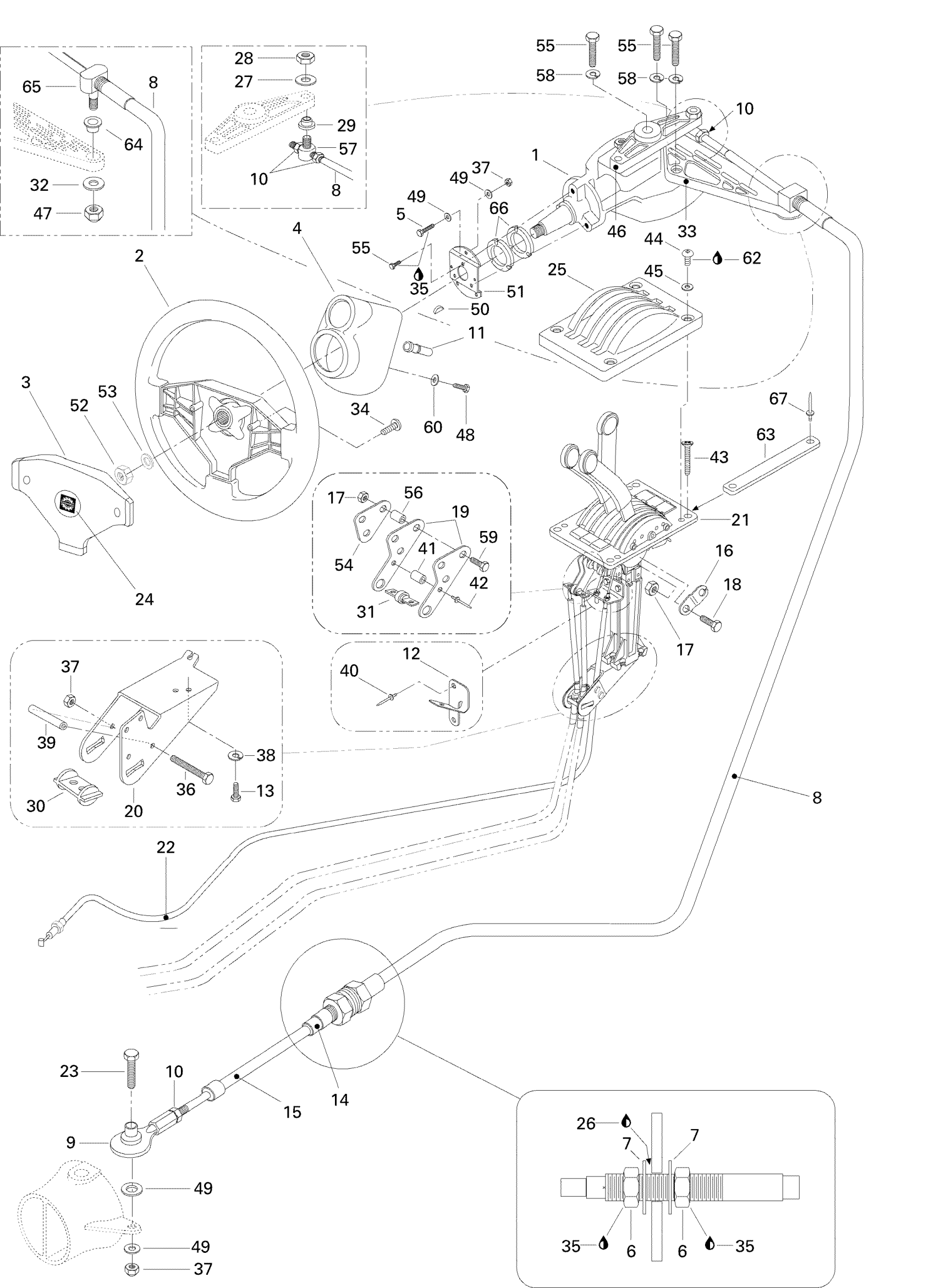

Sea-doo Challenger, 5896, 1996 Steering System Diagram

#

Description
Price

1

Helm Ass'y

277000342

Unavailable

2

Steering (Black)

277000508

Unavailable

3

Steering Cover (Green)

277000547

Unavailable

4

Collar (Marine Green)

277000551

Unavailable

5

Hex. Screw M6 X 30

207163060

$1.48

6

Nut

277000437

Unavailable

7

Washer

277000438

Unavailable

8

Direction Cable | Includes 6,7,10,14,15

277000574

Unavailable

9

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

10

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

11

Grommet

293720014

Unavailable

12

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

13

Hex. Screw M6 x 12

210000011

Unavailable

14

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

15

Terminal Wiper

277000441

$11.99

16

Throttle Link

277000447

Unavailable

17

Hex. Elastic Nut M5 | X

232551600

$1.15

18

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

19

LINK - REVERSE - Call your local BRP dealership

277000578

Unavailable

20

Welded Support

277000577

Unavailable

21

Control Ultraflex

277000478

Unavailable

22

Throttle Cable

277000327

Unavailable

23

Hex. Screw M6 X 40

207064060

$1.69

24

Logo «Bombardier»

219900514

Unavailable

25

Control Cover

277000505

Unavailable

26

Silicone Sealant 51388, 300 ml

296000309

$36.99

27

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

28

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

29

BUSHING - Call your local BRP dealership

293350012

Unavailable

30

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

31

PIVOT BRACKET - Call your local BRP dealership

277000450

Unavailable

32

Flat Washer 10 mm, Stainless

234001600

$1.15

33

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

34

Flange Screw K40 X 20

241642060

$1.15

35

Loctite 243, 10 ml

293800060

$21.49

36

Screw M6 x 80

210100010

Unavailable

37

Hex. Elastic Stop Nut M6

232561600

$1.15

38

Lock Washer Helical M6

234161601

$1.15

39

SPACER - Call your local BRP dealership

277000453

Unavailable

40

Pop RIvet 1/8 X ,375

293150285

$0.33

41

SPACER - Call your local BRP dealership

277000449

Unavailable

42

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

43

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216153060

Unavailable

44

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

45

Flat Washer 4 mm

234040600

$0.55

46

Arm

277000459

Unavailable

47

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

48

Hex. Flange Screw K40 X 25

241142560

$2.64

49

Stainless Flat Washer M6

234061600

$0.33

50

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

51

Support

277000383

Unavailable

52

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

53

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

54

Compensator Link

277000583

Unavailable

55

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

56

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

57

PIVOT - Call your local BRP dealership

277000456

Unavailable

58

Lock Washer 1/4”

211200025

$1.29

59

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152560

Unavailable

60

Flat Washer 4 mm, Stainless

234042600

$1.15

61

Not Available As Spare Parts

XXX

Unavailable

62

Not Available As Spare Part - Friction Washer

Unavailable

63

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

64

Flanged Bushing

293350014

$12.99

65

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

66

SPACER - Call your local BRP dealership

277000593

Unavailable

67

Pop Rivet 3/16"

293150013

$1.37
