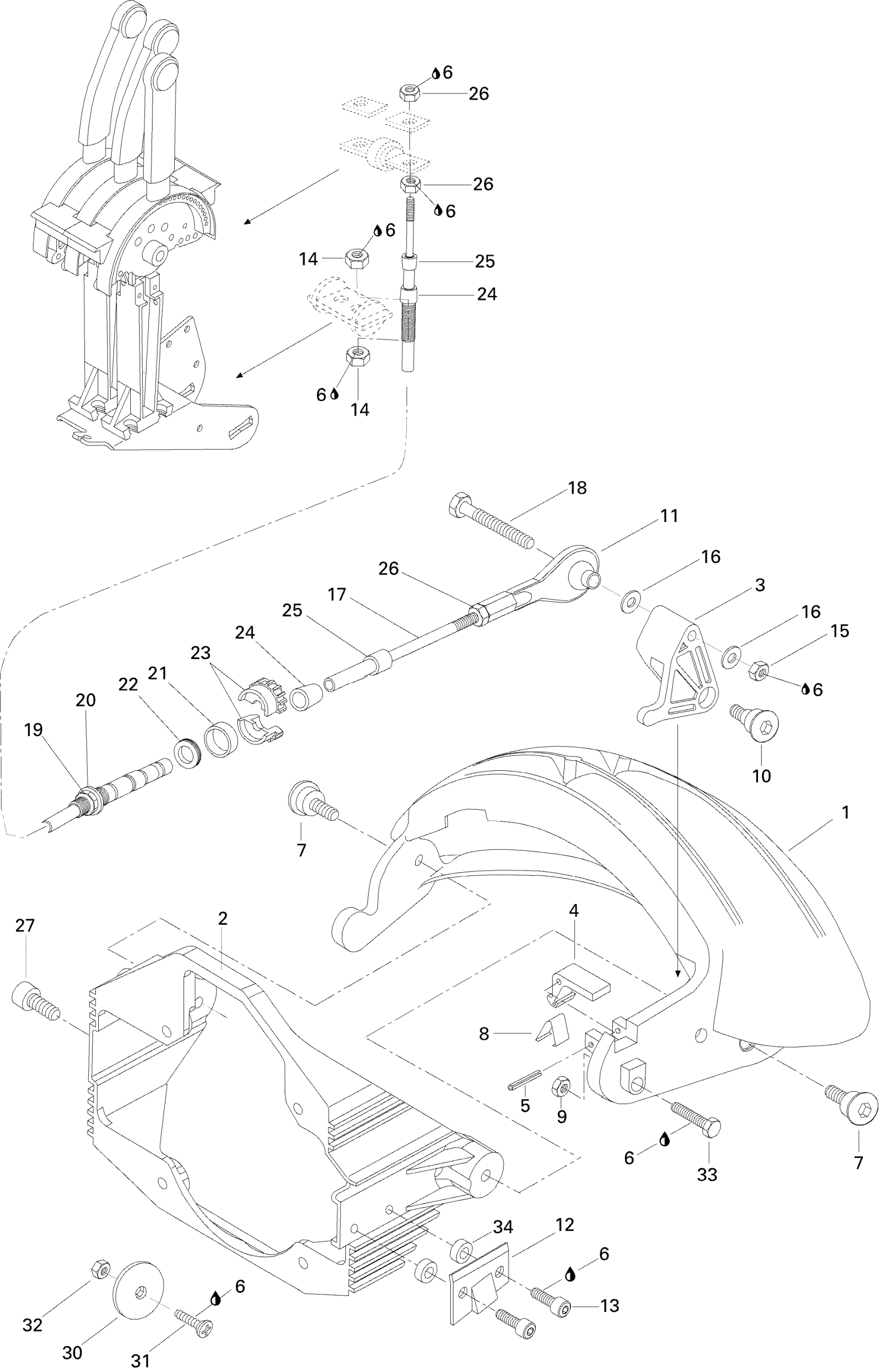

Sea-doo Challenger, 5896, 1996 05- Reverse Diagram

#

Description
Price

1

Gate - Reverse

271000483

Unavailable

2

Gate Support

204170004

Unavailable

3

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

4

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

5

Pin

211400009

$1.68

6

Loctite 243, 10 ml

293800060

$21.49

7

Screw

211000007

Unavailable

8

Spring

271000431

$15.49

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

11

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

12

Pawl-stop

204170030

Unavailable

13

Socket Head Screw M5 X 16

205451660

$1.15

14

Hex. Jam Nut

212100006

Unavailable

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Stainless Flat Washer M6

234061600

$0.33

17

REVERSE CABLE - Call your local BRP dealership

271000628

Unavailable

18

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

19

Hex. Jam Nut 1/2-20

211100011

Unavailable

20

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

21

Retaining Ring

211100010

Unavailable

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Half-Ring

277000168

Unavailable

24

Boot, Large

277000473

Unavailable

25

Boot, Small

277000466

Unavailable

26

Hex. Nut

212100005

$1.35

27

SCREW-SOCKET HD.DIN.912A2 - Call your local BRP dealership

215981660

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Anode-Zinc

271000477

Unavailable

31

Countersunk Phillips Head Screw

211000087

Unavailable

32

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

33

Hex. Forming Screw M6 X 20

207162060

$1.29

34

Spacer 6 mm

204170003

Unavailable
