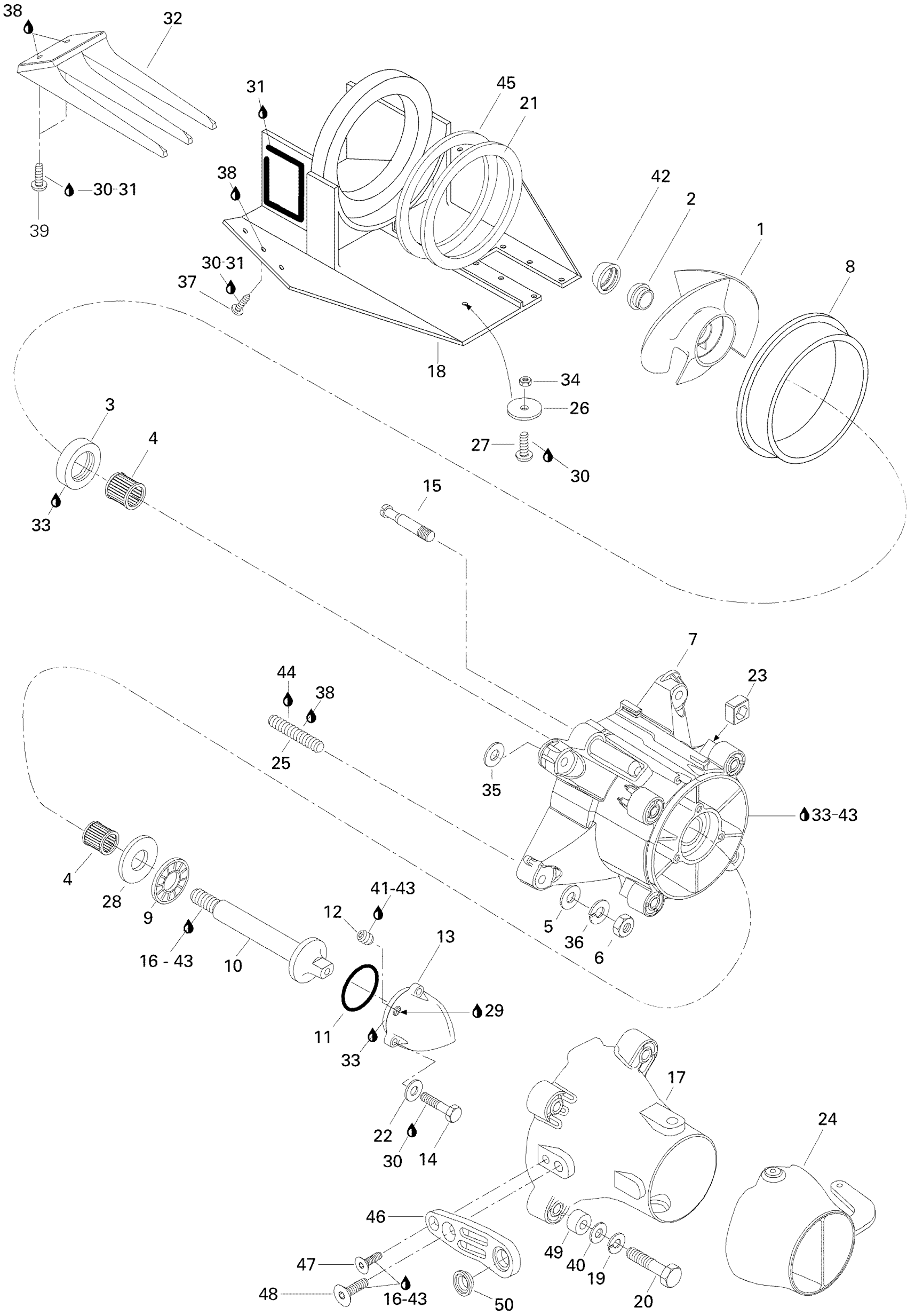

Sea-doo Challenger, 5896, 1996 Propulsion Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000620

Unavailable

2

Impeller Boot

271000516

$9.59

3

Oil Seal

267000094

$22.49

4

Needle Bearing

293350017

$27.99

5

Flat Washer 10 mm, Stainless

234001600

$1.15

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

IMPELLER HOUSING ASSEMBLY - Call your local BRP dealership | Includes 3,4,8

295500391

Unavailable

8

Wear Ring

271000290

$58.49

9

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$8.64

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

13

Impeller Cover

271000361

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.47

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$26.99

17

Venturi | Includes 47,48,50

271000602

Unavailable

18

Shoe

204120002

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

$0.55

20

Hex. Screw M8 x 75

215687560

Unavailable

21

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

22

Flat Washer M5, Stainless

234051600

$0.77

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

24

Steering Nozzle

271000746

$209.99

25

STUD-M10 - Call your local BRP dealership

211300015

Unavailable

26

Anode-Zinc

271000477

Unavailable

27

Screw 1/4-20 x 5/8

211000084

Unavailable

28

Thrust Washer

293350003

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Instant Gasket

219701421

$51.99

32

Inlet Grate

271000537

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

Flat Washer 10 mm, Stainless

234000600

$1.46

36

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

37

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

38

Silicone Sealant 51388, 300 ml

296000309

$36.99

39

Phillips Screw M6 X 25

208562560

$2.32

40

Stainless, Flat Washer 8 mm

234081600

$0.55

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Impeller Ring

271000517

$9.59

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

Loctite 271, 10 ml

293800005

$26.99

45

Ring

204120003

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Screw M6 x 20

211000060

Unavailable

48

Screw M8 x 25

211000061

Unavailable

49

Spacer 13 mm

271000526

Unavailable

50

Venturi Bushing

271000321

$8.69
