Description

Price

1

Stainless Flat Washer M6

234061600

$0.33

2

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

3

Air Silencer Base

273000074

Unavailable

4

Flame Arrester Foam

273000077

Unavailable

5

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

6

Housing Arrester (Double Intake)

273000022190

Unavailable

7

Support

270000140

Unavailable

8

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

9

Loctite 243, 10 ml

293800060

$21.49

10

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

11

Socket Head Screw M6 X 25

205062560

$1.69

12

Retainer Clip

273000006

Unavailable

13

Rubber Bumper

293830005

$8.09

14

GASKET - Call your local BRP dealership

293250023

Unavailable

15

Socket Head Screw M6 X 12

205061260

$1.58

16

Ground Plate

278000903

Unavailable

17

INSULATOR - Call your local BRP dealership

278000213

Unavailable

18

External Serrated Lock Washer 6 mm

234461608

$1.15

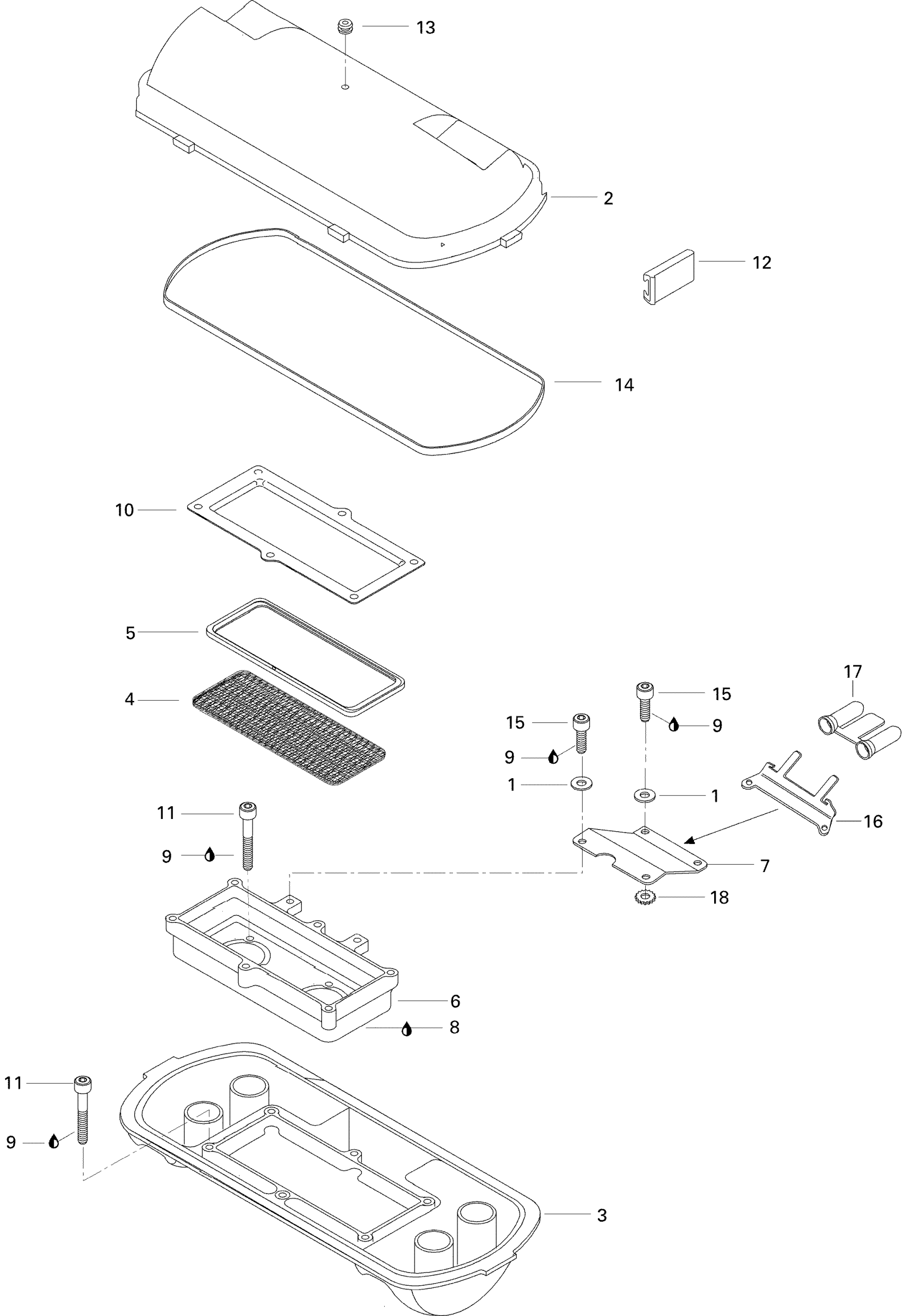

Sea-doo Challenger, 5896, 1996 02- Air Intake Diagram

Stainless Flat Washer M6

AIR SILENCER COVER - Call your local BRP dealership

Air Silencer Base

Flame Arrester Foam

ISOLATOR - Call your local BRP dealership

Housing Arrester (Double Intake)

Support

Était/Was 293800038 Loctite 518, 50 ml

Loctite 243, 10 ml

HOLDER PLATE - Call your local BRP dealership

Socket Head Screw M6 X 25

Retainer Clip

Rubber Bumper

GASKET - Call your local BRP dealership

Socket Head Screw M6 X 12

Ground Plate

INSULATOR - Call your local BRP dealership

External Serrated Lock Washer 6 mm
