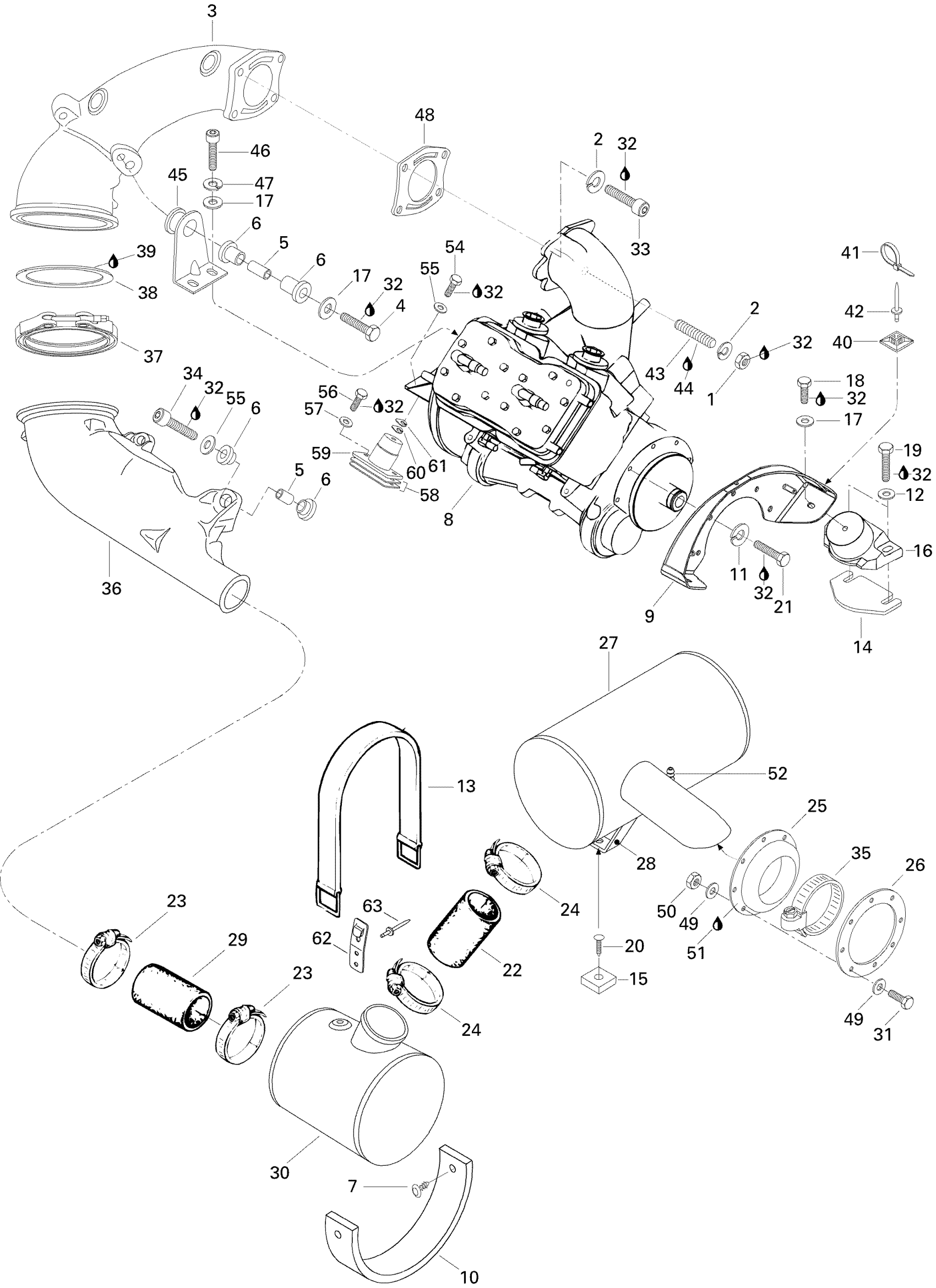

Sea-doo Challenger, 5896, 1996 Exhaust System Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000254

$13.17

6

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

7

Black, Dart

293730006

$0.99

8

Rotax Engine 787 (White)

270000203

Unavailable

9

Engine Support

270000219

Unavailable

10

Rubber Pad

293830008

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Retainer Strap

293850097

$11.64

14

Shim 0.3 mm

270000122

Unavailable

14

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Rubber Pad

274000354

Unavailable

16

Male Connector, 2 Circuits

270000220

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 x 12

215081260

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

Black, Dart

293730006

$0.99

21

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

22

Exhaust Hose 65 mm

274000275

Unavailable

23

Tridon Clamp

293650036

$7.49

24

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

25

Gasket

274000276

Unavailable

26

Ring

274000277

Unavailable

27

Muffler | Includes 27 - 29.

274000278

Unavailable

28

Muffler Support

274000353

Unavailable

29

Exhaust Hose

274000170

Unavailable

30

Resonator

274000285

Unavailable

31

Hex. Screw M6 X 30

207063060

$1.89

32

Loctite 243, 10 ml

293800060

$21.49

33

Socket Head Screw M10 x 35

215903560

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

Tridon Clamp

293650023

$13.49

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

41

Tie Wrap 94 mm | 4X4

293750001

$1.03

42

Rivet 1/8"

293150016

$0.40

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

$26.99

45

Pipe Support

274000384

Unavailable

46

Allen Screw M8 x 20

215982060

Unavailable

47

Lock Washer 8 mm, Stainless

234181601

$0.55

48

Gasket

290931500

Unavailable

49

Stainless Flat Washer M6

234061600

$0.33

50

Hex. Elastic Stop Nut M6

232561600

$1.15

51

Instant Gasket

219701421

$51.99

52

Elbow Fitting 90°

293710018

Unavailable

53

Was 293800013 Loctite 56765

219704454

$65.99

54

Hex. Screw M8 x 16

215681660

Unavailable

55

Flat Washer 8 mm, Stainless

234082600

$2.43

56

Hex. Screw M8 X 30

207183060

$1.58

57

Stainless, Flat Washer 8 mm

234081600

$0.55

58

Shim 0.4 mm

270000006

Unavailable

58

Shim 1.3 mm

270000007

Unavailable

59

Rubber Mount

270000222

Unavailable

60

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

61

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

62

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

63

Avdel Rivet 3/16"

293150037

$0.56
