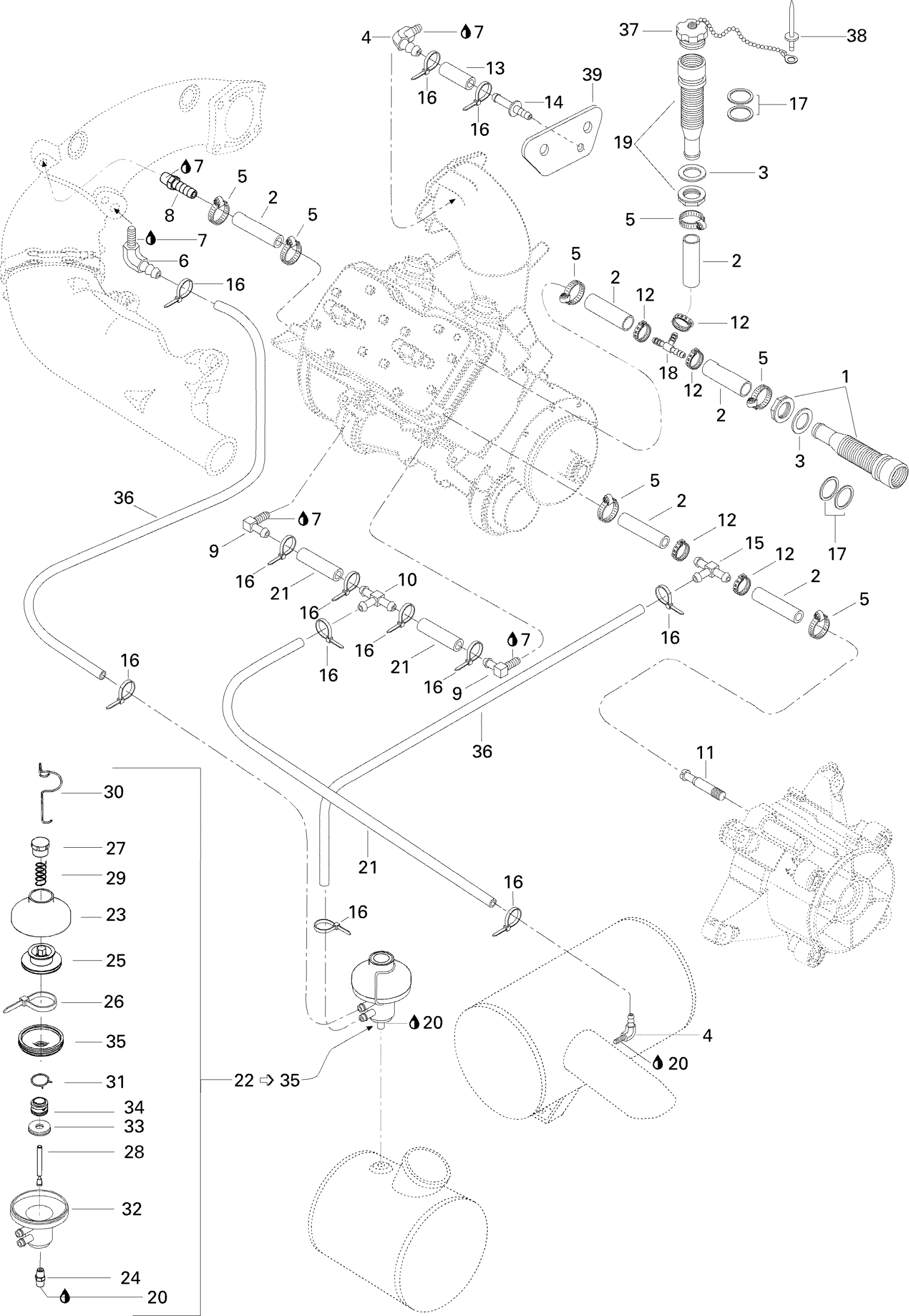

Sea-doo Challenger, 5896, 1996 Cooling System Diagram

#

Description
Price

1

Fitting

293710063

Unavailable

2

Was 276000001 Hose 12.5 mm

219704394

$51.99

3

WASHER - Call your local BRP dealership

293050003

Unavailable

4

Elbow Fitting 90°

293710018

Unavailable

5

Tridon Gear Clamp

293650172

$3.09

6

Elbow Fitting 90°

293710048

Unavailable

7

Was 293800013 Loctite 56765

219704454

$65.99

8

Male Connector | With Catalyst

293710021

$14.23

9

Elbow Fitting

293700016

Unavailable

10

T-FITTING - Call your local BRP dealership

293710061

Unavailable

11

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

12

Caillau Clic Clamp

293650018

Unavailable

13

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

14

BLEED FITTING - Call your local BRP dealership

291000306

Unavailable

15

T-FITTING - Call your local BRP dealership

293710052

$12.70

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

GASKET - Call your local BRP dealership

293250028

Unavailable

18

T-FITTING - Call your local BRP dealership

293710053

Unavailable

19

Fitting

293710063

Unavailable

20

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

21

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

22

Presure Regulator Ass'y | Includes 22 to 35

274000316

Unavailable

23

Valve Cover

420911552

$38.99

24

MALE CONNECTOR - Call your local BRP dealership

293700010

Unavailable

25

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

26

Rivalair Clamp

293650065

Unavailable

27

Adjuster Screw

420241221

$14.22

28

FEEDING ROD - Call your local BRP dealership

274000423

Unavailable

29

SPRING 44 MM - Call your local BRP dealership

274000382

Unavailable

30

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

31

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Bellow

420260721

$51.99

36

Hose 6 Mm 15000Mm Long

219704360

$132.49

37

PLUG - Call your local BRP dealership

293000055

Unavailable

38

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

39

Finition Plate

291000544

Unavailable
