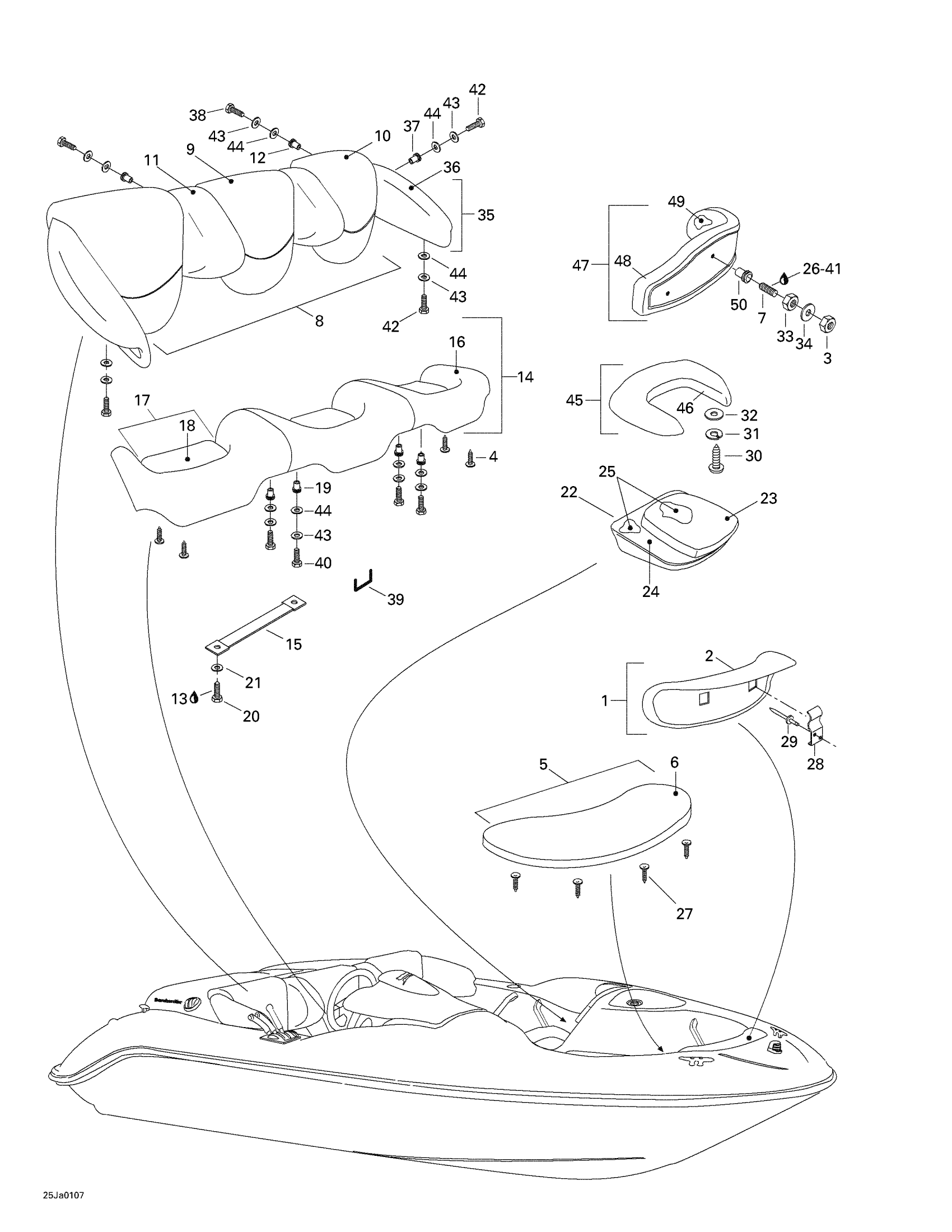

Sea-doo Challenger, 5699, 2001 09- Seats Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204610538
Unavailable
2
Front Backrest Cover
204610539
Unavailable
3
Hex. Elastic Nut M5 | X
232551600
$1.15
4
Dart
293730021
$7.79
5
Front Seat Ass'y | Includes 5 - 6.
204610540
Unavailable
6
Front Seat Cover
204610541
Unavailable
7
Set Screw M5 x 30
206253060
Unavailable
8
Rear Backrest Ass'y | Includes 8 - 12.
204611219
Unavailable
9
Backrest Cover (Center)
204610544
Unavailable
10
RH Backrest Cover
204610545
Unavailable
LH Backrest Cover
204610546
Unavailable
11
Backrest Cover
204610543
Unavailable
12
Anchor Washer
204100005
Unavailable
13
Loctite 243, 10 ml
293800060
$21.49
14
Rear Seat Ass'y | Includes 14 - 21.
204610551
Unavailable
15
Strap
204610555
Unavailable
16
Rear Seat Cover
204610552
Unavailable
17
Cushion Ass'y | Includes 17 - 18.
204610553
Unavailable
18
Rear Seat Pillow Cover
204610554
Unavailable
19
Anchor Washer
204100005
Unavailable
20
Hex. Screw M6 X 16
207161660
$1.59
21
Flat Washer M6, Stainless
234062600
$0.77
22
Keeper Seat Ass'y | Includes 22 - 25.
204610556
Unavailable
23
Keeper Seat Base Cover
204610557
Unavailable
24
Keeper Seat Cover
204610558
Unavailable
25
Seat Foam
269000333
Unavailable
26
Was 293800041 Loctite Primer 7649
219704458
$39.99
27
Black, Dart
293730006
$0.99
28
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
29
Pop Rivet 3/16"
293150043
$2.09
30
Tapping Phillips Screw 6.3 X 38
209663860
Unavailable
31
Lock Washer Helical M6
234161601
$1.15
32
Stainless Flat Washer M6
234061600
$0.33
33
Hex. Nut M5
232051600
$1.15
34
Flat Washer M6, Stainless
234062600
$0.77
35
LH Armrest Ass'y | Includes 35 - 37.
204610547
Unavailable
RH Armrest Ass'y
204610549
Unavailable
36
LH Armrest Cover
204610548
Unavailable
RH Armrest Cover
204610550
Unavailable
37
Anchor Washer
204100005
Unavailable
38
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
39
Staple
293730005
Unavailable
40
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
41
Loctite 271, 10 ml
293800005
$26.99
42
Hex. Screw M6 X 30, Scotch Grip
207363060
Unavailable
43
Flat Washer M6, Stainless
234062600
$0.77
44
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
45
Keeper Seat Ring Ass'y | Includes 45 - 46.
204611444
Unavailable
46
Keeper Seat Ring Cover
204610560
Unavailable
47
Keeper Seat Backrest Ass'y | Includes 47 - 48.
204610562
Unavailable
48
Keeper Seat Backrest Cover
204610563
Unavailable
49
Keeper Seat Backrest Foam
269000339
Unavailable
50
Anchor Washer
204100005
Unavailable
