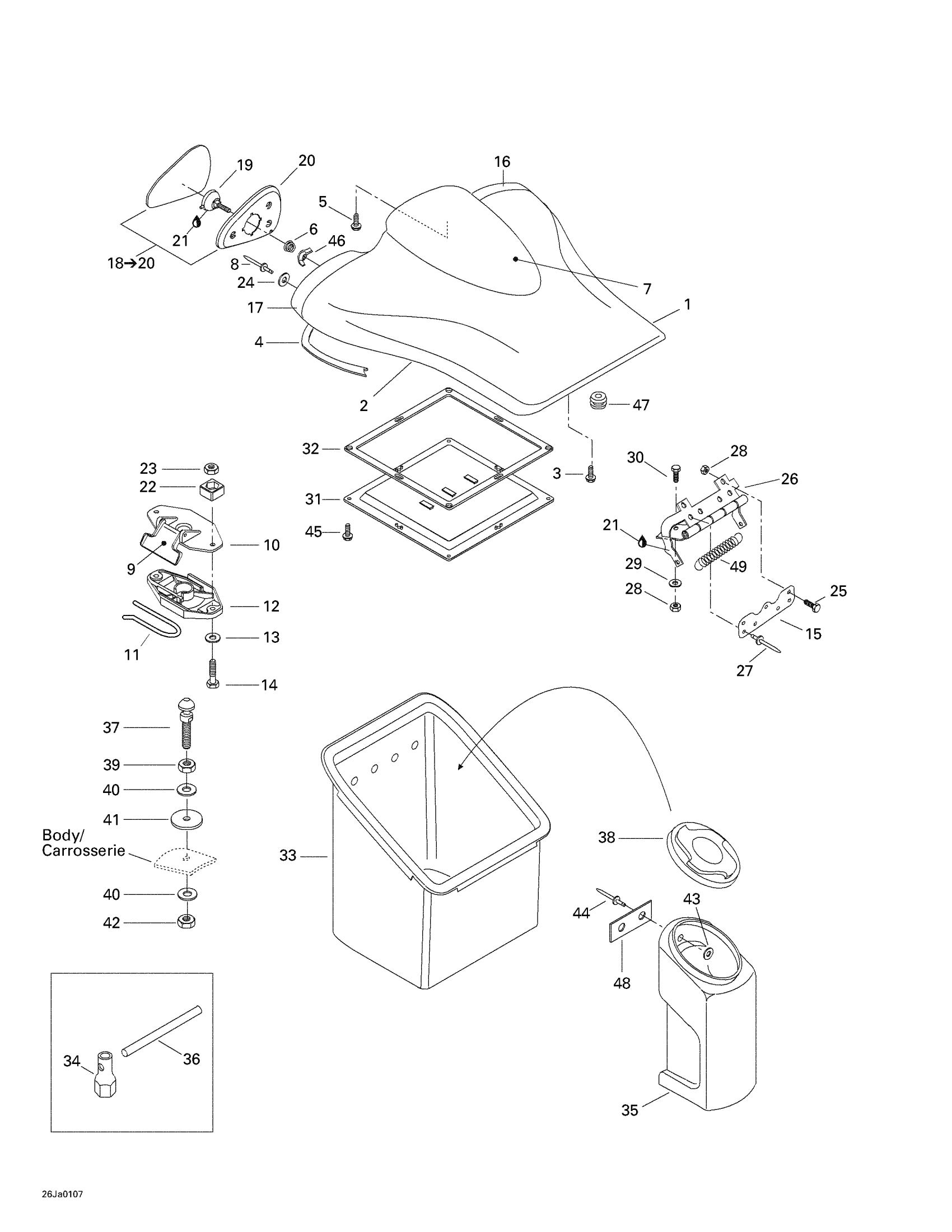

Sea-doo Challenger, 5699, 2001 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

204620144

Unavailable

2

Lower Storage Cover

204620145

Unavailable

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Seal Tray 1000Mm Long

219704368

$13.99

5

Screw K40 X 10

241140060

$1.48

6

Mirror Spring

269500082

Unavailable

7

Deflector

204620146

Unavailable

8

Pop Rivet 3/16"

293150008

$0.50

9

Latch Ass'y

269700109

$24.99

10

Latch Ass'y

269700109

$24.99

11

Latch Spring

269700017

$9.19

12

Latch Ass'y

269700109

$24.99

13

Stainless Flat Washer M6

234061600

$0.33

14

Hex. Screw M6 X 35

207163560

$1.49

15

Retainer Plate

269500107

Unavailable

16

LH Mirror Housing

204620148

Unavailable

17

RH Mirror Housing

204620147

Unavailable

18

RH Mirror | Includes 3 to 4

269500055

Unavailable

LH Mirror | Includes 3 to 4

269500056

Unavailable

19

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

21

Synthetic Grease, 400 G

293550010

Unavailable

22

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

23

Hex. Nut M6

232061600

$1.15

24

Flat Washer, Emhart

213200016

$0.72

25

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

26

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

27

Pop Rivet 3/16"

293150039

$1.49

28

Hex. Elastic Nut M5 | X

232551600

$1.15

29

Flat Washer M5, Stainless

234051600

$0.77

30

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

31

Access Cover Ass'y | Includes 31 - 32.

204620149

Unavailable

32

TRAY SEAL - Call your local BRP dealership

293200033

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

34

Socket Wrench

204630050

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

Steel Bar

204630051

Unavailable

37

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

38

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

39

Hex. Jam Nut M10

232100600

$2.22

40

Flat Washer 10 mm, Stainless

234002600

$2.22

41

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

42

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

43

Flat Washer M3, Stainless

234032600

$0.55

44

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

45

Hex. Flange Screw K40 X 16

241141660

$1.48

46

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

47

Grommet

204070238

Unavailable

48

GASKET - Call your local BRP dealership

293250037

Unavailable

49

Hinge Spring

204620049

Unavailable
