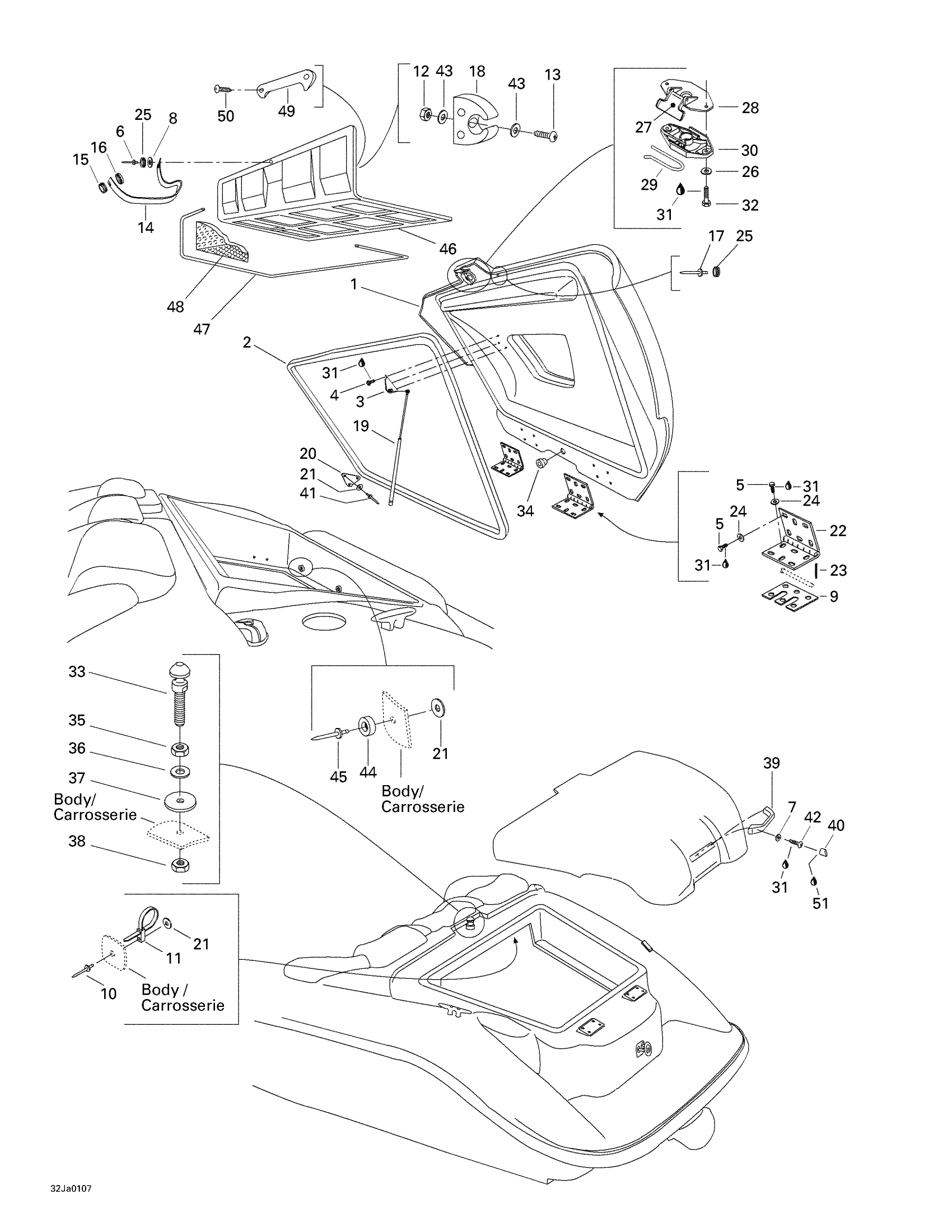

Sea-doo Challenger, 5699, 2001 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

204071220

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

Hex. Screw M4 X 16 | Europe

207141660

$1.47

5

Hex. Screw M6 X 25

207162560

$1.47

6

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

7

Stainless Flat Washer M6

234061600

$0.33

8

Flat Washer M3, Stainless

234032600

$0.55

9

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

10

Pop Rivet 3/16"

293150013

$1.37

11

Tie-Rap

293750017

Unavailable

12

Elastic Stop Nut M4

232541600

$1.15

13

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

14

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

14

Nylon Strap 1” (Black) (Meter)

204050097

Unavailable

15

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

16

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

17

Pop Rivet 1/8”

293150015

$0.40

18

Pole Support

291000642

Unavailable

19

CYLINDER - Call your local BRP dealership

204071053

Unavailable

20

Shock Support

291000615

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.77

22

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

23

Cotter Pin M2.5 X 12

204070205

Unavailable

24

Stainless Flat Washer M6

234061600

$0.33

25

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Spring

269700017

$9.19

30

Latch Ass'y

269700109

$24.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Hex. Screw M6 X 25

207162560

$1.47

33

Latch Stud

204100065

Unavailable

34

GROMMET - Call your local BRP dealership

293720017

Unavailable

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

38

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

39

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

40

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

43

Flat Washer 4 mm

234040600

$0.55

44

Rubber Stopper

293830043

Unavailable

45

Pop Rivet 3/16"

293150013

$1.37

46

Access Cover

204050392

Unavailable

47

Seal Tray 1000Mm Long

219704368

$13.99

48

Luggage Foam

237500013

Unavailable

49

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

50

Hex. Flange Screw K40 X 16

241141660

$1.48

51

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99
