09- Central Cover And Accessories

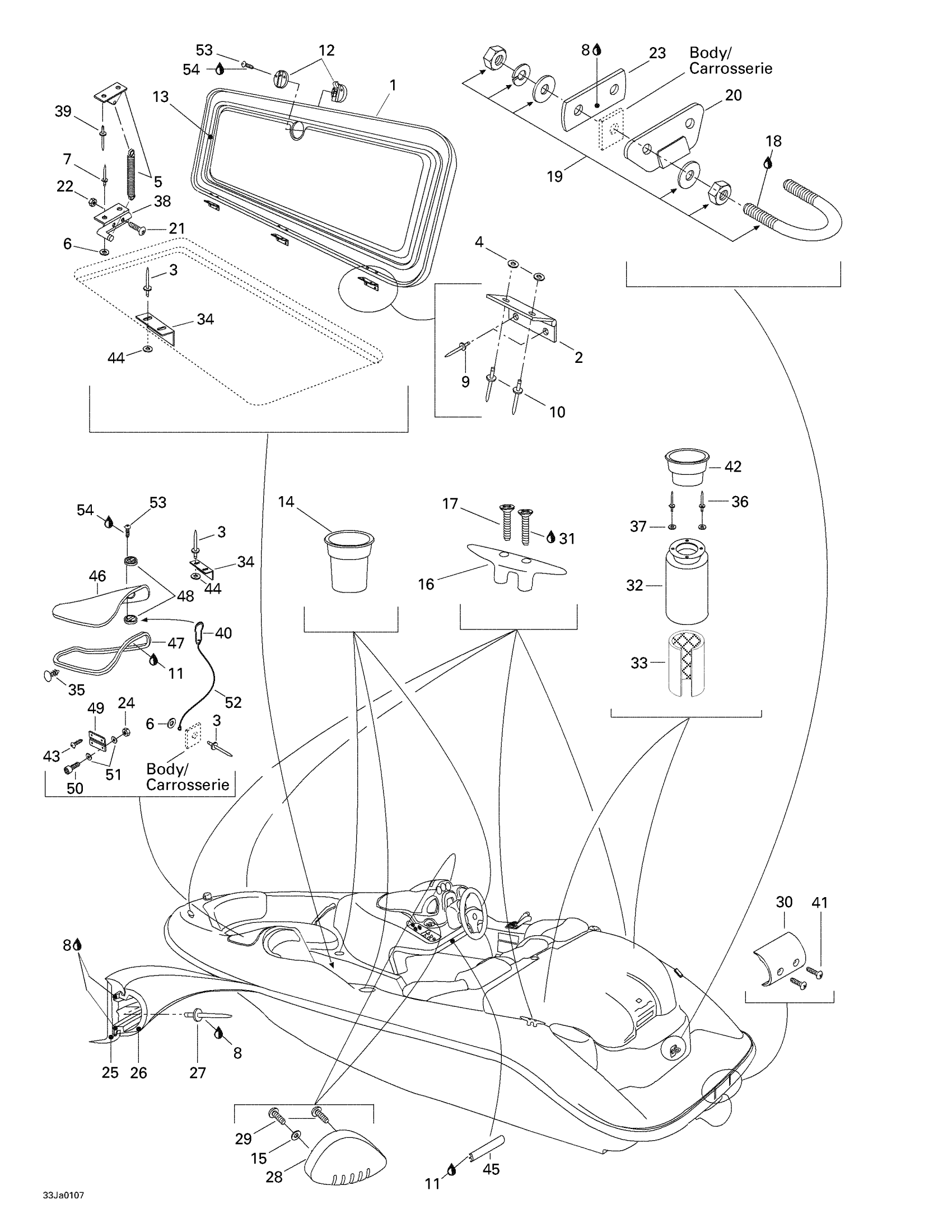

Sea-doo Challenger, 5699, 2001 09- Central Cover And Accessories Diagram
#
1
Central Cover
204071118
Unavailable
2
HINGE - Call your local BRP dealership
204072601
Unavailable
3
Pop Rivet 3/16"
293150039
$1.49
4
Flat Washer M5, Stainless
234051600
$0.77
5
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
6
Flat Washer 5 mm, Stainless
234052600
$0.77
7
Pop Rivet 3/16"
293150039
$1.49
8
Silicone Sealant 51388, 300 ml
296000309
$36.99
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
12
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
13
Seal Tray 1000Mm Long
219704368
$13.99
14
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
CLEAT - Call your local BRP dealership
204070100
Unavailable
17
Socket Head Screw M6 x 55
205365560
Unavailable
18
Loctite 271, 10 ml
293800005
$26.99
19
U-Bolt
204070418
Unavailable
20
Ski Tow Plate, Black
204070054
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
HEX. JAM NUT 3 MM - Call your local BRP dealership
232130600
Unavailable
25
Bumper extrusion
204050220
Unavailable
26
Bumper Moulding
204050221
Unavailable
27
Pop Rivet 3/16"
293150013
$1.37
28
Ventilation Grille
204070699
Unavailable
29
Flange Screw K40 X 20
241642060
$1.15
30
Bumper Cover
204050222
Unavailable
31
Loctite 243, 10 ml
293800060
$21.49
32
Rear Hose Vent
204050004
Unavailable
33
Sound Damping
291000400
Unavailable
34
KEEPER - Call your local BRP dealership
204070060
Unavailable
35
Plug
204071204
Unavailable
36
Pop Rivet 3/16"
293150014
$1.09
37
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
38
Spring Bracket
291000719
Unavailable
39
RIVET_POP 3/16 - Call your local BRP dealership
293150055
Unavailable
40
CABLE CLIP - Call your local BRP dealership
293750000
Unavailable
41
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
42
Cup Holder
291000914
Unavailable
43
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
44
Flat Washer M5, Stainless
234051600
$0.77
45
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
46
Storage Door
204071120
Unavailable
47
BLACK TRIM, METER - Call your local BRP dealership
204070055
Unavailable
48
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
49
Hinge
269700031
$9.99
50
Socket Head Screw M3 X 10
205431060
Unavailable
51
Flat Washer 3 mm, Stainless Steel
234031600
$0.55
52
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
53
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
54
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
