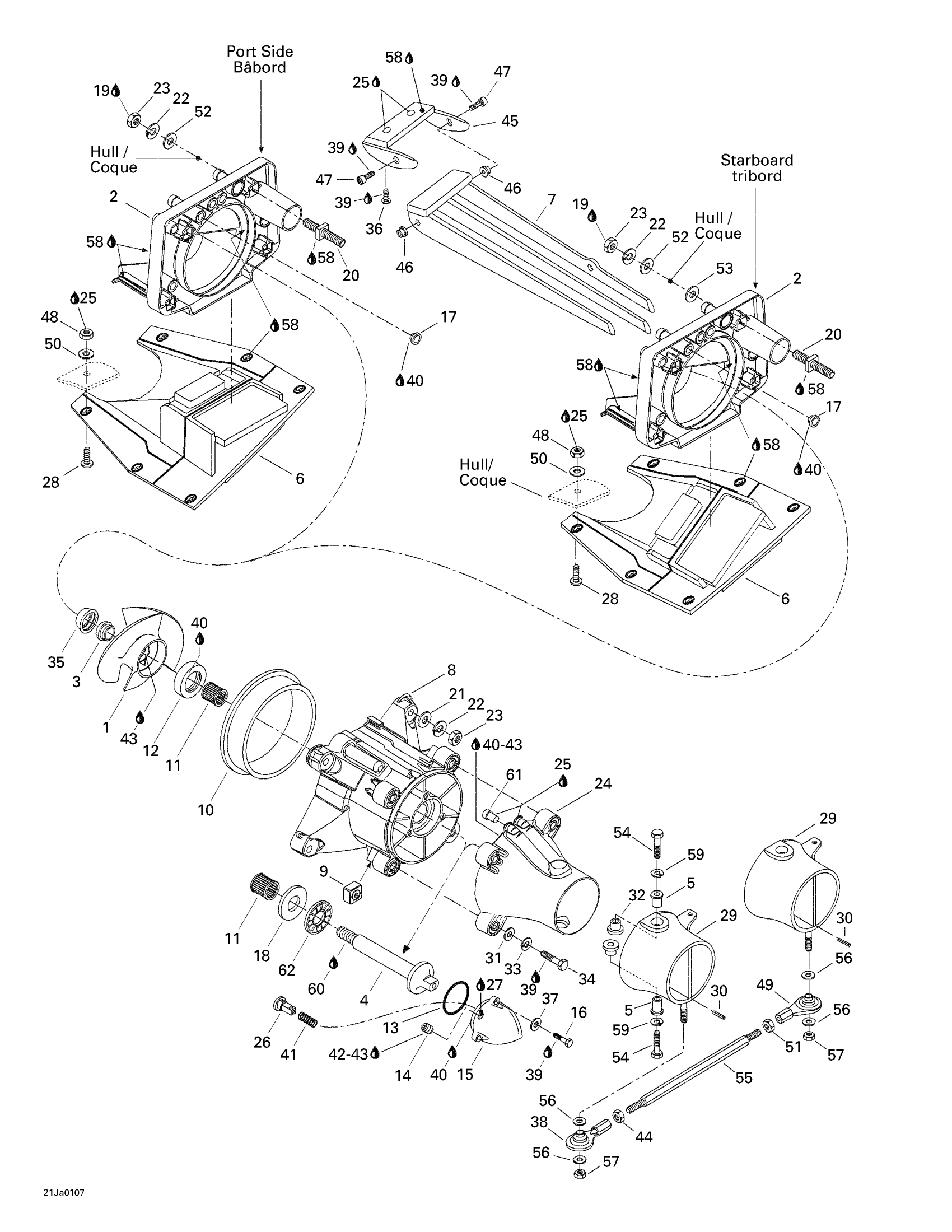

Sea-doo Challenger, 5699, 2001 Propulsion System Diagram

#

Description
Price

1

STAINLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership

271000821

Unavailable

2

Pump Support

204120127

Unavailable

3

Impeller Boot

271000516

$9.59

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Spacer

204120078

Unavailable

6

RH Shoe

204120094

Unavailable

LH Shoe

204120095

Unavailable

7

RH MOBIL GRATE - Call your local BRP dealership

204120084

Unavailable

LH Mobil Grate

204120087

Unavailable

8

Impeller Housing Ass'y | Includes 8 - 10.

204160051

Unavailable

9

Square Nut M8

211100033

$17.99

10

Wear Ring

271000290

$58.49

11

Needle Bearing

293350017

$27.99

12

Oil Seal

267000094

$22.49

13

O-Ring

293300011

$8.64

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

$9.59

15

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

16

Hex. Screw M5 X 20

207152060

$1.47

17

Watertight Seal

293250084

$7.49

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

$26.99

20

Square Stud

250300022

$20.99

21

Flat Washer 10 mm, Stainless

234001600

$1.15

22

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

VENTURI - Call your local BRP dealership

271000509

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$36.99

26

PUSHER - Call your local BRP dealership

271000978

Unavailable

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

STEERING NOZZLE (BLACK) - Call your local BRP dealership | Includes 29 - 30.

204120057

Unavailable

30

Rolled Pin

211400014

Unavailable

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Venturi Bushing

293900001

$7.62

33

Lock Washer 8 mm, Stainless

234181601

$0.55

34

HEX. SCREW M8 X 70 - Call your local BRP dealership

207087060

Unavailable

35

Impeller Ring

271000517

$9.59

36

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.77

38

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

39

Loctite 243, 10 ml

293800060

$21.49

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$39.99

44

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

45

Grate Support, Starboard

204120083

Unavailable

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

46

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

47

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

$1.15

49

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

50

Flat Washer M6, Stainless

234062600

$0.77

51

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

52

Flat Washer 10 mm, Stainless

234002600

$2.22

53

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

54

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

55

Link Rod

204120076

Unavailable

56

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

57

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

58

Instant Gasket

219701421

$51.99

59

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

60

Loctite 262, 50 ml

413705200

Unavailable

61

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

62

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable
