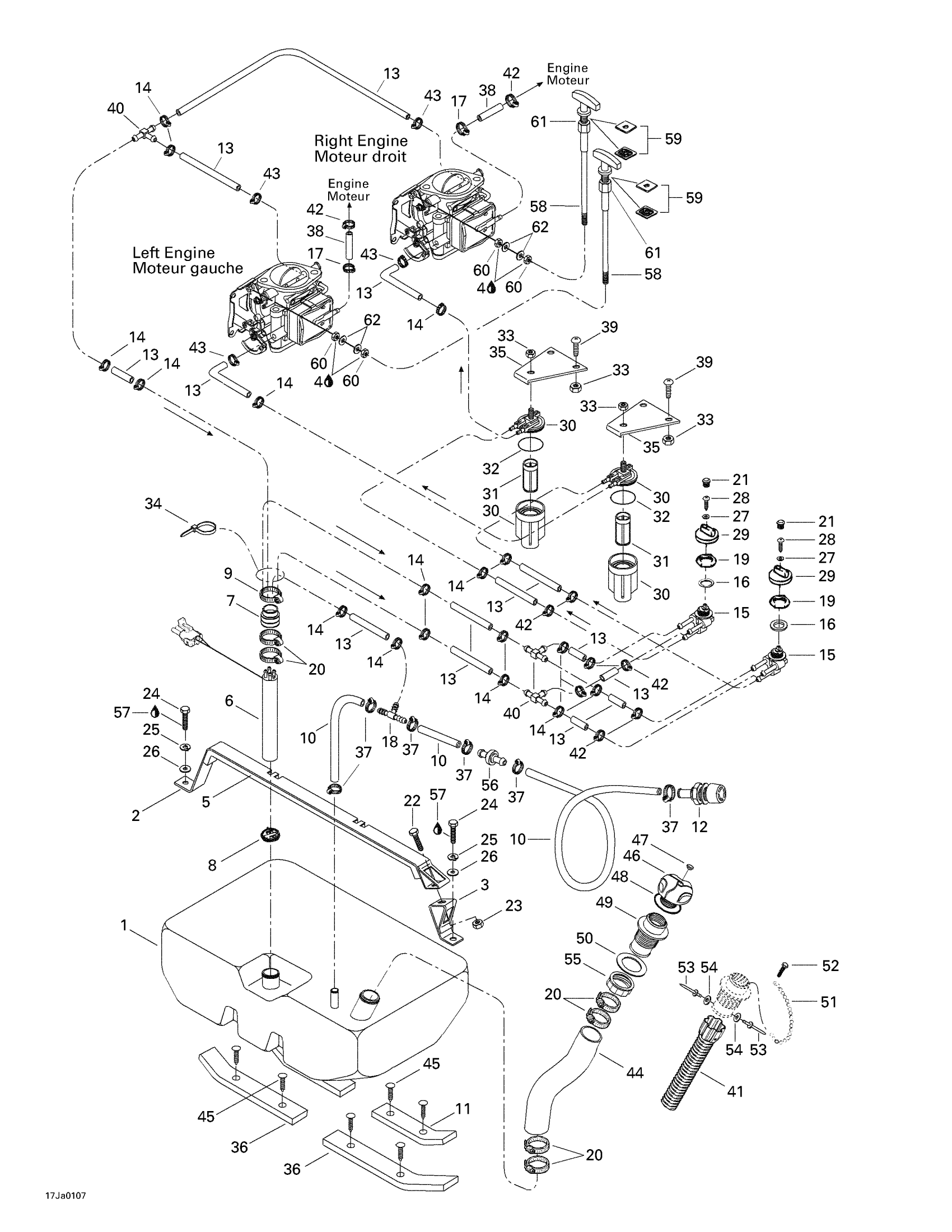

Sea-doo Challenger, 5699, 2001 Fuel System Diagram

#

Description
Price

1

Fuel Tank (Plastic)

204560044

Unavailable

2

Tank Bracket

275500199

Unavailable

3

Strap Bracket

275500202

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Protector Pad

204560029

Unavailable

6

BAFFLE PICK-UP ASS'Y - Call your local BRP dealership | Includes 6 - 8.

204560071

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

Fuel Filter

275500249

Unavailable

9

Norma Clamp

293650077

$7.41

10

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

11

Rubber Pad 330 mm

293830020

Unavailable

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

HOSE 1/4 - Call your local BRP dealership

204560178

Unavailable

14

NORMA CLAMP - Call your local BRP dealership

293650121

Unavailable

15

Fuel Valve

275500098

$43.99

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Oetiker Clamp

293650042

$3.09

18

T-Fitting

204560038

Unavailable

19

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

20

Norma Clamp

293650081

$12.18

21

Black, Cap

275500241

$3.49

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

Hex. Screw M8 X 30

207183060

$1.58

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Flat Washer 4 mm

234040600

$0.55

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

30

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

$8.79

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Tie-Rap 180 mm

414115200

$0.11

35

Fuel Filter Support

204560007

Unavailable

36

Rubber Pad

293830021

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

39

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

40

T Fitting

293710040

Unavailable

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Tridon Gear Clamp

293650170

$1.99

43

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

44

Filler Neck Hose

275500259

Unavailable

45

Black, Dart

293730006

$0.99

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

47

Black, Snap Cap

293000034

$9.39

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

Rivet 1/8”

293150057

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.55

55

Filler Neck Nut, Fuel

211100012

$14.22

56

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

CHOKE CABLE ASS'Y L.H - Call your local BRP dealership | Includes 58 - 62.

204250041

Unavailable

CHOKE CABLE - Call your local BRP dealership | Includes 50 - 54.

204250071

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.15

61

Hex. Nut

211100007

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33
