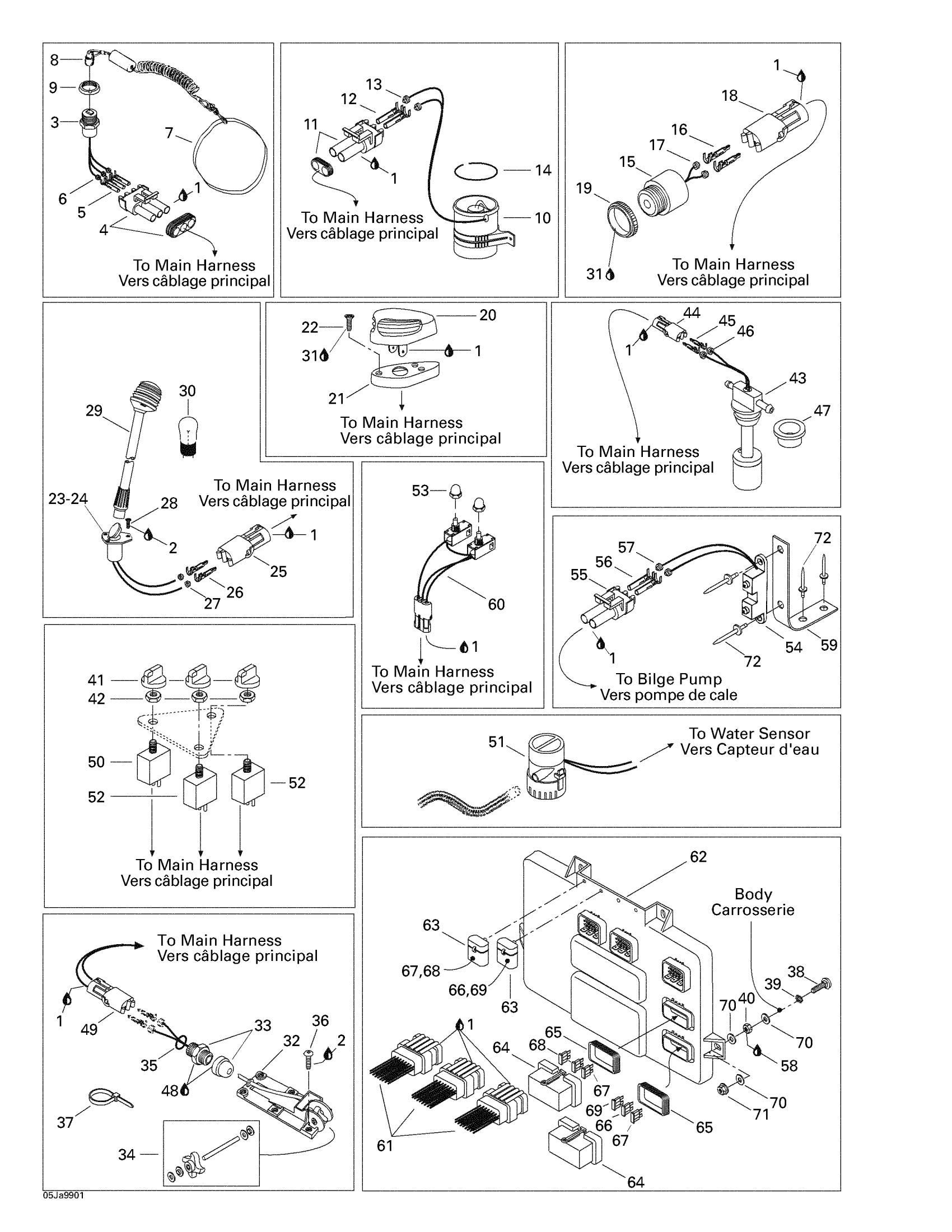

Sea-doo Challenger, 5672, 2000 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Loctite 243, 10 ml

293800060

$21.49

3

Safety Switch This part replaces 278002325.

278002773

$114.99

4

Male Housing, 3 Circuits

278000273

$9.59

5

Female Terminal

278000223

$3.19

6

Wire Seal

278000218

$4.39

7

Safety Strap

204470025

Unavailable

8

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

9

Safety Nut (DESS Switch)

278002963

$3.28

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

BROACH - Call your local BRP dealership

204000133

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Female Housing, 2 Circuits

278000217

$9.59

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470311

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.90

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

25

Female Housing, 2 Circuits

278000217

$9.59

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

Screw M4 x 30

208430070

Unavailable

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Elevator Bolt

204000130

Unavailable

39

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

40

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

41

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

42

Switch Nut

278000647

Unavailable

43

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

44

Female Housing, 2 Circuits

278000217

$9.59

45

Male Terminal | XT Models

278000222

$3.19

46

Wire Seal

278000218

$4.39

47

Grommet

204470104

Unavailable

48

Silicone Sealant 51388, 300 ml

296000309

$36.99

49

Female Housing, 2 Circuits

278000217

$9.59

50

Light Switch

278000541

Unavailable

51

Bilge Pump This part replaces 204470220.

278002020

$99.49

52

Fan Switch

278000540

Unavailable

53

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

54

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

55

Male Connector, 2 Circuits

278000220

$15.49

56

Female Terminal

278000223

$3.19

57

Wire Seal

278000218

$4.39

58

Loctite 271, 10 ml

293800005

$26.99

59

Sensor Support

204470058

Unavailable

60

IGNITION SWITCH - Call your local BRP dealership | Replaced by Single Switch (Cutting and Splicing Required

204470142

Unavailable

61

Harness Ass'y

204470284

Unavailable

62

Electronic Module Ass'y | Includes 62 - 69.

204470139

Unavailable

63

Fuse Holder

278000379

Unavailable

64

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

65

Cover Seal

278001070

Unavailable

66

Fuse, 10 Amperes | North America

278001197

$2.21

67

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

68

Fuse, 5 Amperes | CE

278000344

$3.28

69

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

70

Flat Washer M6, Stainless

234062600

$0.77

71

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

72

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable
