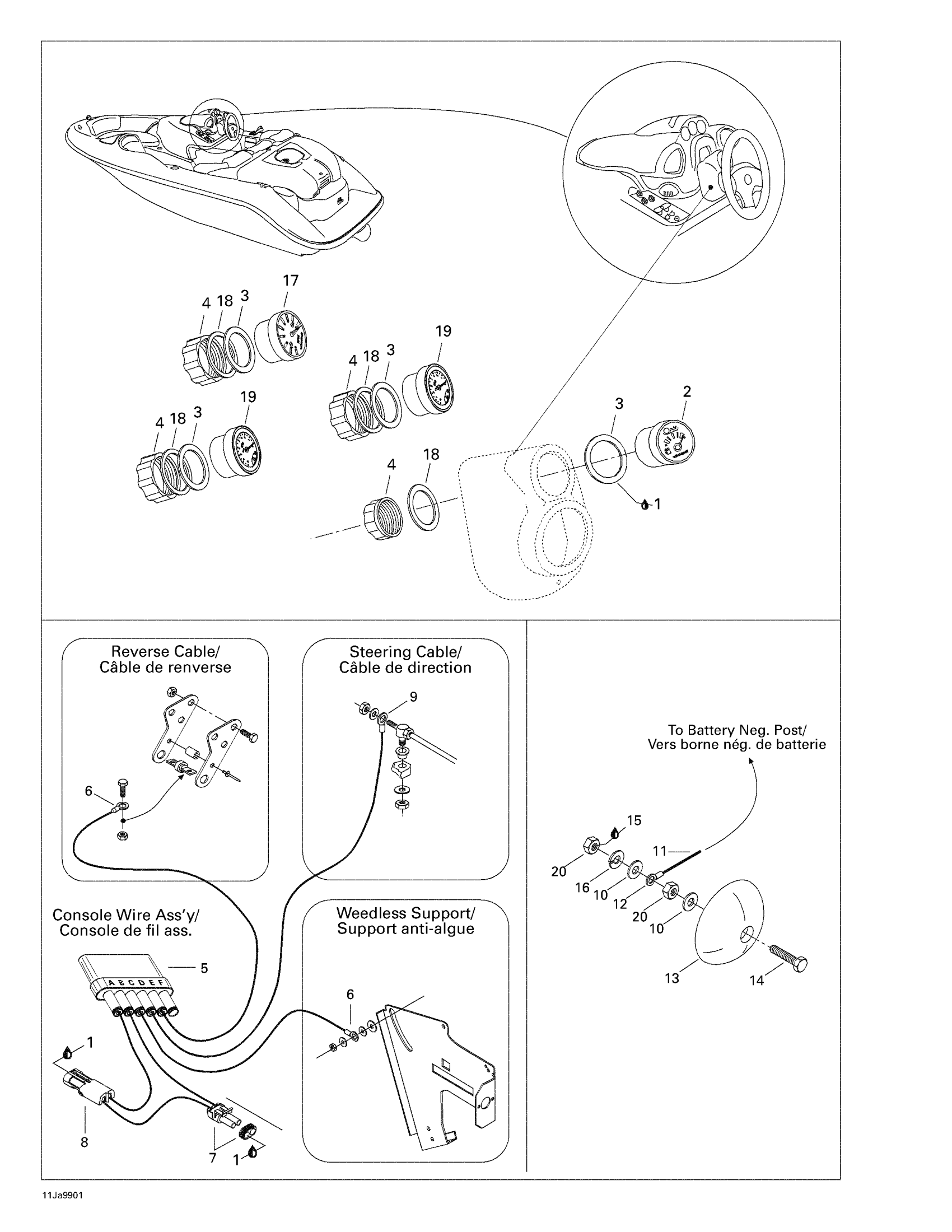

Sea-doo Challenger, 5672, 2000 Electrical Accessories 1 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Fuel/Oil Gauge

204470144

Unavailable

3

Gasket

204470308

Unavailable

4

Gauge Nut

204470146

Unavailable

5

Console Wire Ass'y | Includes 5 - 9.

204470288

Unavailable

6

Open Barrel Terminal

278001392

$4.79

7

Male Connector, 2 Circuits

278000220

$15.49

8

Female Housing, 2 Circuits

278000217

$9.59

9

Open Barrel, Amp

278001323

Unavailable

10

Flat Washer M6, Stainless

234062600

$0.77

11

Wire Anode | Includes 11 - 12.

204470289

Unavailable

12

Open Barrel Terminal

278001392

$4.79

13

Anode

204470290

Unavailable

14

Hex. Screw

204100001

Unavailable

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

Lock Washer 1/4”

211200025

$1.29

17

Speedometer Gauge

204470147

Unavailable

18

O-Ring

293250085

$1.01

19

Tachometer Gauge

204470148

Unavailable

20

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable
