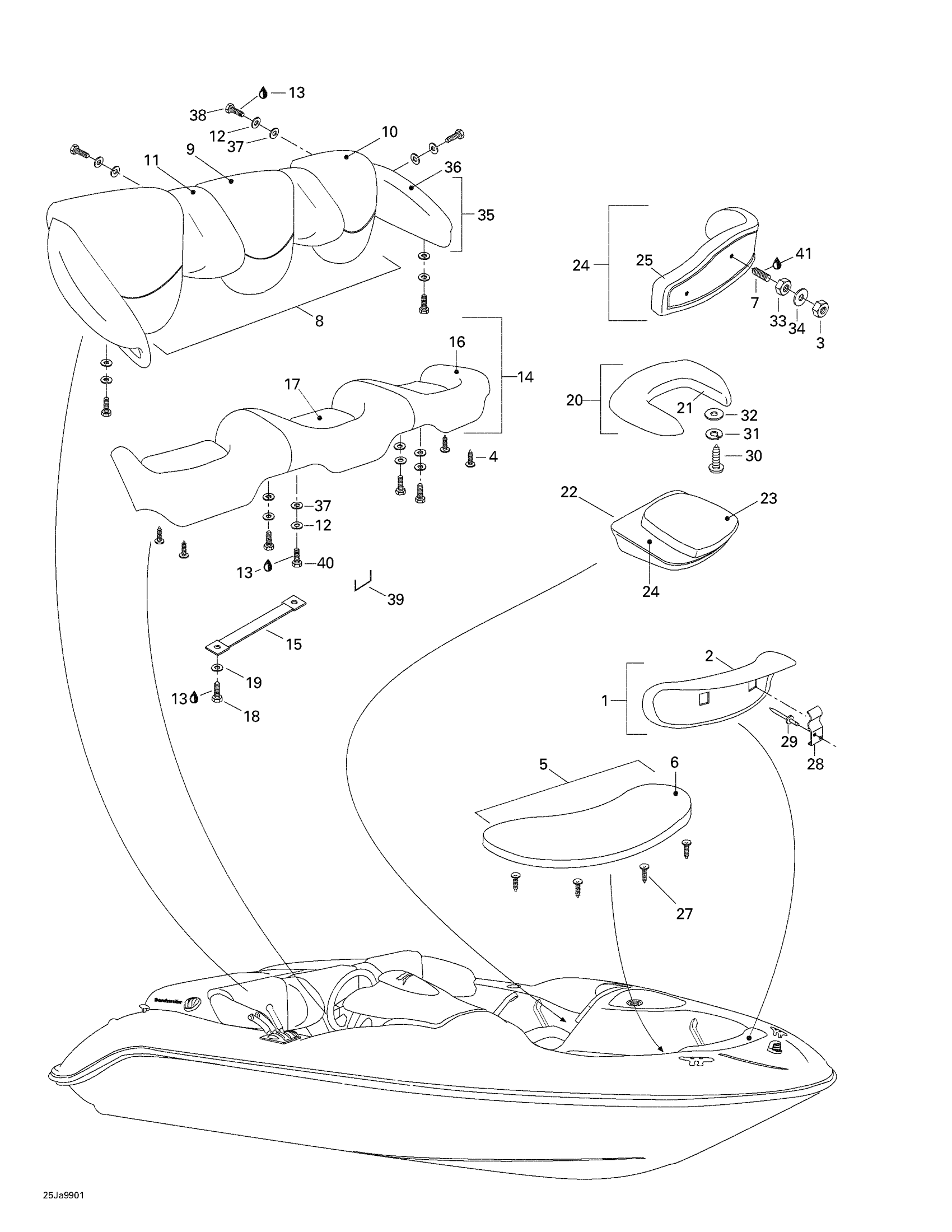

Sea-doo Challenger, 5672, 2000 09- Seats Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204610231
Unavailable
2
Front Backrest Cover
204610232
Unavailable
3
Hex. Elastic Nut M5 | X
232551600
$1.15
4
Dart
293730021
$7.79
5
Front Seat Ass'y | Includes 5 - 6.
204610289
Unavailable
6
Front Seat Cover
204610321
Unavailable
7
Set Screw M5 x 30
206253060
Unavailable
8
Rear Backrest Ass'y | Includes 8 - 11.
204610290
Unavailable
9
Backrest Cover (Center)
204610309
Unavailable
10
Backrest Cover R.H
204610331
Unavailable
Backrest Cover L.H
204610469
Unavailable
11
Backrest Cover (Emerald Green)
204610234
Unavailable
12
Flat Washer M6, Stainless
234062600
$0.77
13
Loctite 243, 10 ml
293800060
$21.49
14
Rear Seat Ass'y | Includes 14 - 19.
204610291
Unavailable
15
Strap (Emerald Green)
204610285
Unavailable
16
Rear Seat Cover (Emerald Green)
204610237
Unavailable
17
Rear Seat Pillow Cover
204610307
Unavailable
18
Hex. Screw M6 X 16
207161660
$1.59
19
Flat Washer M6, Stainless
234062600
$0.77
20
Keeper Seat Ring Ass'y | Includes 20 - 21.
204610238
Unavailable
21
Keeper Seat Ring Cover
204610239
Unavailable
22
Keeper Seat Ass'y | Includes 22 - 24.
204610292
Unavailable
23
Seat Base Cover
269000332
Unavailable
24
Keeper Seat Cover
204610328
Unavailable
25
Keeper Seat Backrest Ass'y | Includes 25 - 26.
204610564
Unavailable
26
Keeper Seat Backrest Cover | N/A
204610594
Unavailable
27
Black, Dart
293730006
$0.99
28
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
29
Pop Rivet 3/16"
293150043
$2.09
30
Tapping Phillips Screw 6.3 X 38
209663860
Unavailable
31
Lock Washer Helical M6
234161601
$1.15
32
Stainless Flat Washer M6
234061600
$0.33
33
Hex. Nut M5
232051600
$1.15
34
Flat Washer 5 mm, Stainless
234052600
$0.77
35
LH Armrest Ass'y | Includes 35 - 36.
204610294
Unavailable
RH Armrest Ass'y
204610295
Unavailable
36
LH Armrest Cover
204610332
Unavailable
RH Armrest Cover
204610333
Unavailable
37
Flat Washer 8 mm, Stainless
234082600
$2.43
38
Hex. Screw M6 X 30
207163060
$1.48
39
Staple
293730005
Unavailable
40
Hex. Screw M6 X 45
207164560
$1.89
41
Loctite 271, 10 ml
293800005
$26.99
