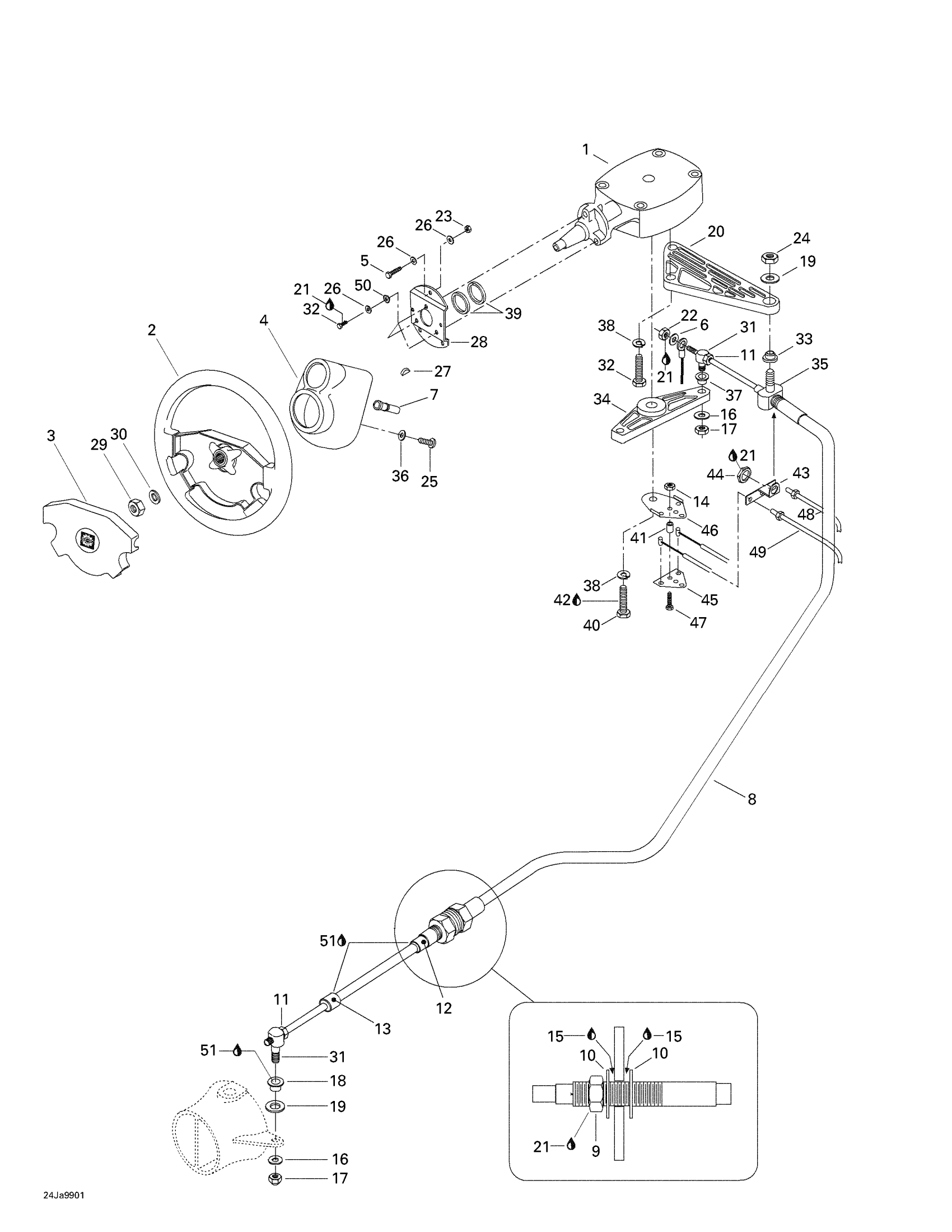

Sea-doo Challenger, 5672, 2000 07- Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

2

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

3

Steering Cover

204390096

Unavailable

4

Collar

204390062

Unavailable

5

Hex. Screw M6 X 30

207163060

$1.48

6

Flat Washer M8, Stainless

234080600

$1.48

7

Grommet

204070238

Unavailable

8

STEERING CABLE - Call your local BRP dealership | Includes 8 - 10.

204390144

Unavailable

9

Nut

277000437

Unavailable

10

Washer

277000438

Unavailable

11

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

12

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

13

Terminal Wiper

277000441

$11.99

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Silicone Sealant 51388, 300 ml

296000309

$36.99

16

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

17

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

18

Bushing

204390134

Unavailable

19

Flat Washer 10 mm, Stainless

234001600

$1.15

20

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

21

Loctite 243, 10 ml

293800060

$21.49

22

Elastic Stop Nut

204390147

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

25

Hex. Flange Screw K40 X 25

241142560

$2.64

26

Stainless Flat Washer M6

234061600

$0.33

27

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

28

Support

277000383

Unavailable

29

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

30

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

31

PIVOT - Call your local BRP dealership

277000456

Unavailable

32

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

33

Flanged Bushing

293350014

$12.99

34

ARM - Call your local BRP dealership

204390040

Unavailable

35

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

36

Flat Washer 4 mm, Stainless

234042600

$1.15

37

BUSHING - Call your local BRP dealership

293350012

Unavailable

38

Lock Washer 1/4”

211200025

$1.29

39

SPACER - Call your local BRP dealership

277000593

Unavailable

40

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

41

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

42

Loctite 271, 10 ml

293800005

$26.99

43

Cable Support

204390035

Unavailable

44

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

45

UPPER CLIP - Call your local BRP dealership

204390267

Unavailable

46

Lower Clip

204390036

Unavailable

47

Hex. Forming Screw M6 X 20

207162060

$1.29

48

LH THROTTLE CABLE - Call your local BRP dealership

204390065

Unavailable

49

RH Throttle Cable

204390066

Unavailable

50

External Serrated Lock Washer 6 mm

234461608

$1.15

51

Synthetic Grease, 400 G

293550010

Unavailable
