05- Propulsion System

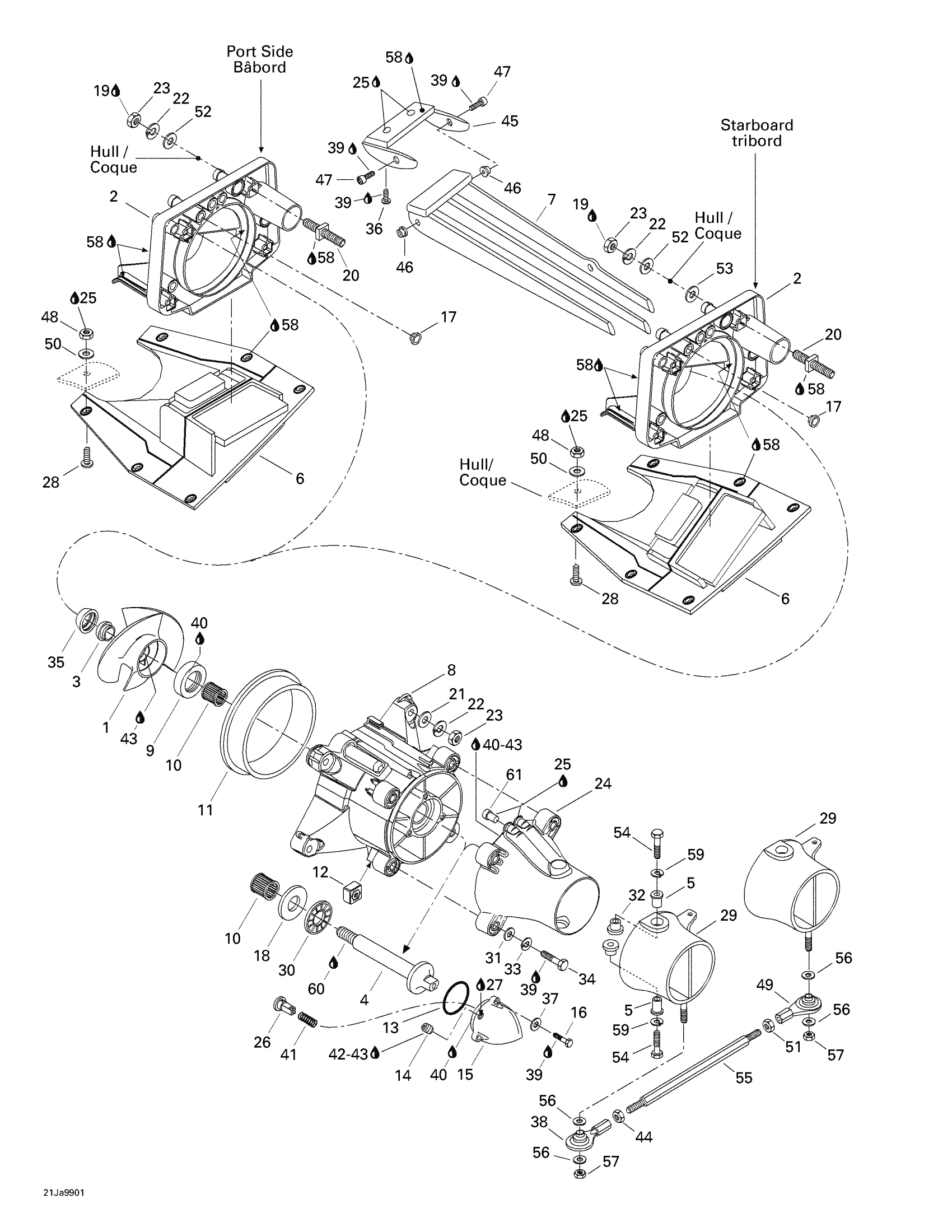

Sea-doo Challenger, 5672, 2000 05- Propulsion System Diagram
#
1
STAINLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership
271000821
Unavailable
2
Pump Support
204120127
Unavailable
3
Impeller Boot
271000516
$9.59
4
IMPELLER SHAFT - Call your local BRP dealership
271000291
Unavailable
5
Spacer
204120078
Unavailable
6
RH Shoe
204120094
Unavailable
LH Shoe
204120095
Unavailable
7
RH MOBIL GRATE - Call your local BRP dealership
204120084
Unavailable
LH Mobil Grate
204120087
Unavailable
8
Impeller Housing Ass'y | Includes 8 - 10.
204160051
Unavailable
9
Oil Seal
267000094
$22.49
10
Needle Bearing
293350017
$27.99
11
Wear Ring
271000290
$58.49
12
Square Nut M8
211100033
$17.99
13
O-Ring
293300011
$8.64
14
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
15
IMPELLER COVER - Call your local BRP dealership
271000670
Unavailable
16
Hex. Screw M5 X 20
207152060
$1.47
17
Watertight Seal
293250084
$7.49
18
THRUST WASHER - Call your local BRP dealership
293350020
Unavailable
19
Loctite 271, 10 ml
293800005
$26.99
20
Square Stud
250300022
$20.99
21
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
23
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
24
VENTURI - Call your local BRP dealership
271000509
Unavailable
25
Silicone Sealant 51388, 300 ml
296000309
$36.99
26
Pusher
271000898
Unavailable
27
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
$16.99
28
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
29
STEERING NOZZLE (BLACK) - Call your local BRP dealership | Includes 29 - 30.
204120057
Unavailable
30
BEARING THRUST - Call your local BRP dealership
293350019
Unavailable
31
Stainless, Flat Washer 8 mm
234081600
$0.55
32
Venturi Bushing
293900001
$7.62
33
Lock Washer 8 mm, Stainless
234181601
$0.55
34
HEX. SCREW M8 X 70 - Call your local BRP dealership
207087060
Unavailable
35
Impeller Ring
271000517
$9.59
36
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
37
Flat Washer M5, Stainless
234051600
$0.77
38
BALL JOINT - Call your local BRP dealership
204120075
Unavailable
39
Loctite 243, 10 ml
293800060
$21.49
40
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
41
SPRING - Call your local BRP dealership
271000704
Unavailable
42
Was 293800018 Loctite 592, 50 ml | Package T
219704455
$33.99
43
Was 293800041 Loctite Primer 7649
219704458
$39.99
44
HEX. NUT 5/16-24 - Call your local BRP dealership
211100034
Unavailable
45
Grate Support, Starboard
204120083
Unavailable
GRATE SUPPORT, PORT SIDE - Call your local BRP dealership
204120086
Unavailable
46
PLASTIC BUSHING - Call your local BRP dealership
204390001
Unavailable
47
SOCKET SCREW M6 X 8 - Call your local BRP dealership
211000099
Unavailable
48
Hex. Elastic Stop Nut M6
232561600
$1.15
49
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
50
Flat Washer M6, Stainless
234062600
$0.77
51
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
52
Flat Washer 10 mm, Stainless
234002600
$2.22
53
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
54
Spacer
204120078
Unavailable
55
Link Rod
204120076
Unavailable
56
Flat Washer M6, Stainless
234062600
$0.77
57
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
58
Instant Gasket
219701421
$51.99
59
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
60
Loctite 262, 50 ml
413705200
Unavailable
61
DRIVE SHAFT PLUG - Call your local BRP dealership
272000019
Unavailable
