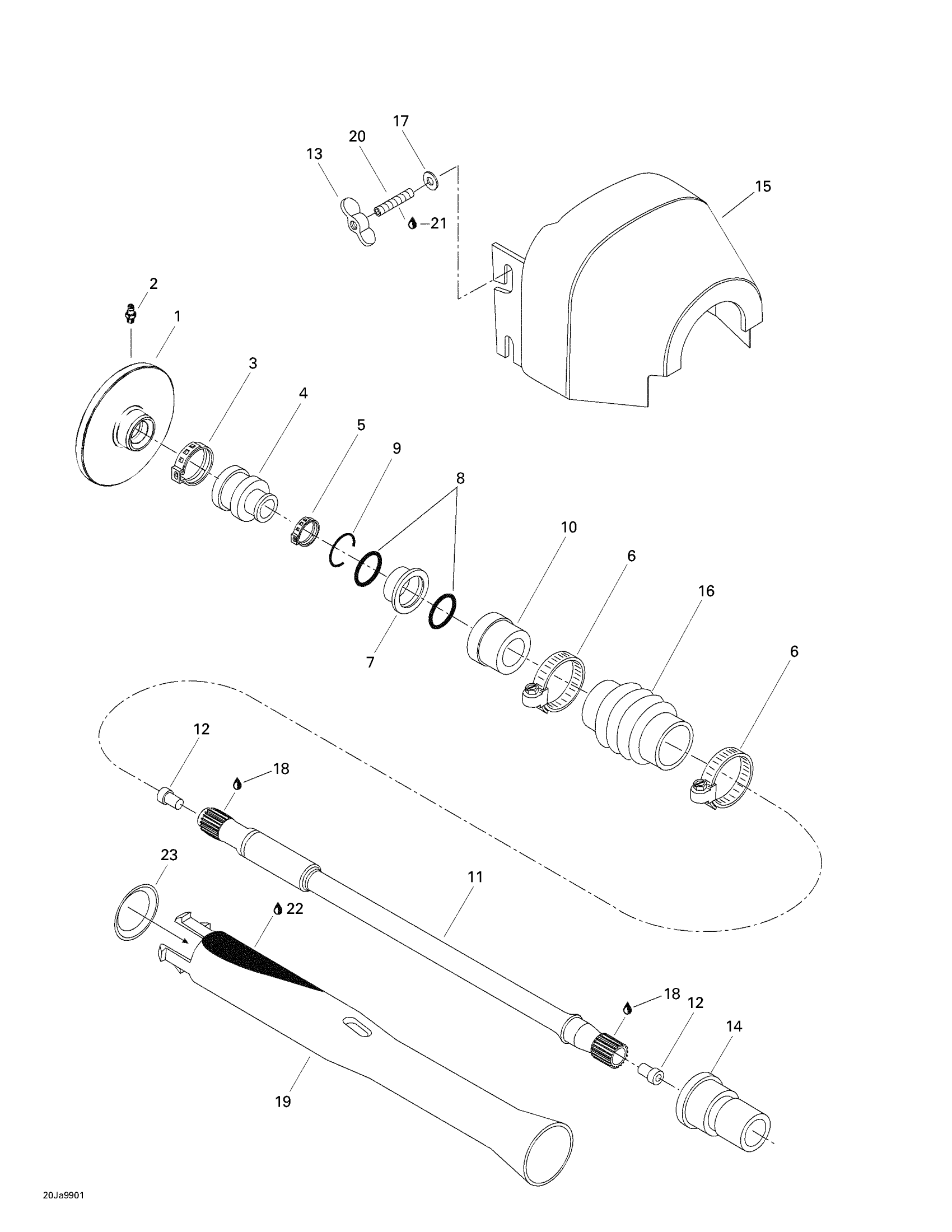

Sea-doo Challenger, 5672, 2000 05- Drive System Diagram

#

Description
Price

1

Flywheel Clutch Ass'y | Includes 23 - 24.

290958012

Unavailable

2

GREASE FITTING - Call your local BRP dealership

290499113

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

Support Ring

272000064

$66.49

8

O-Ring

293300032

$6.03

9

C-CLIP - Call your local BRP dealership

272000135

Unavailable

10

Carbon Ring

272000770

$45.99

11

Drive Shaft

272000073

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

204120117

Unavailable

16

BELLOWS - Call your local BRP dealership

272000184

$27.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Synthetic Grease, 400 G

293550010

Unavailable

19

Shaft Protector

204120131

Unavailable

20

Stud M8 x 15

211300013

Unavailable

21

Loctite 271, 10 ml

293800005

$26.99

22

Instant Gasket

219701421

$51.99

23

Retaining Ring

204120132

Unavailable
