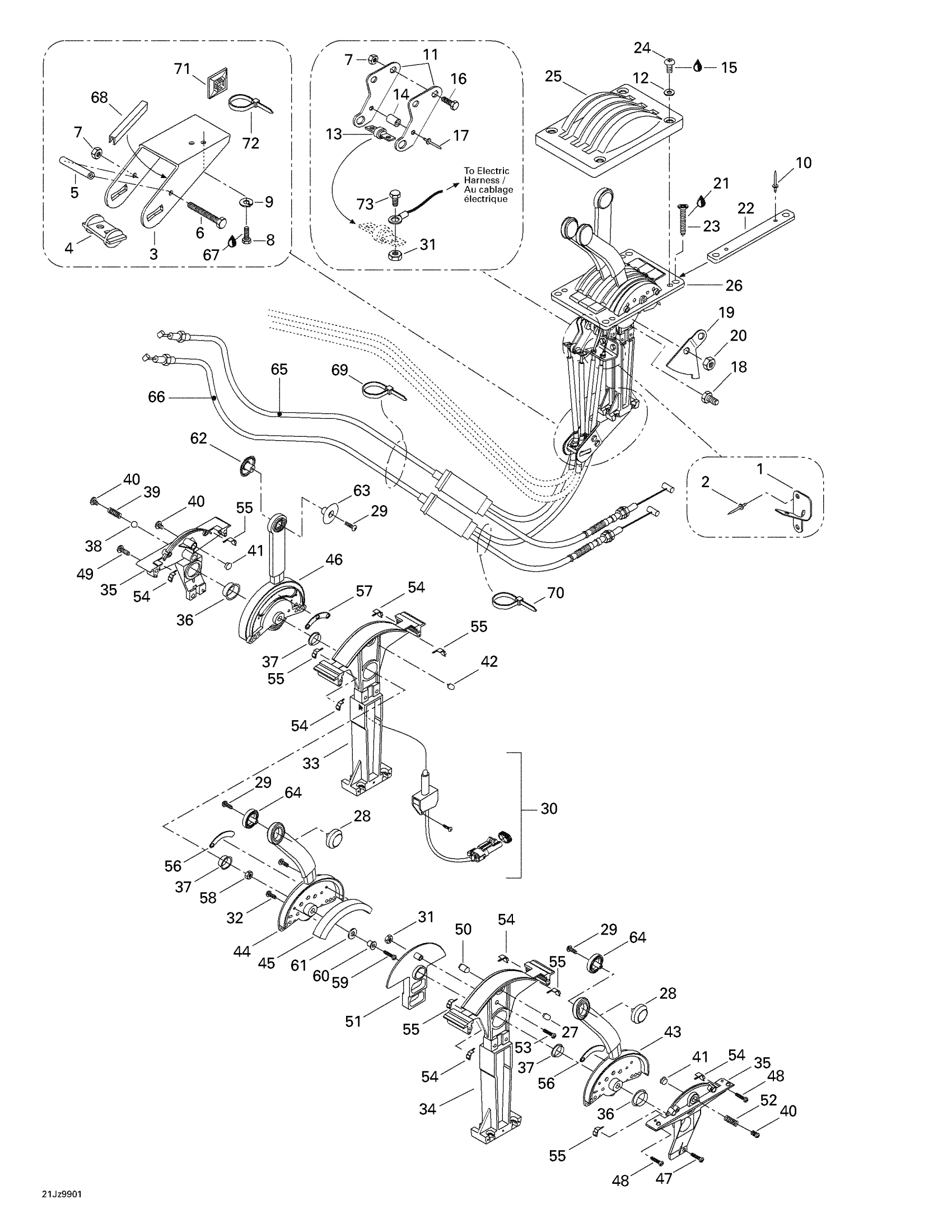

Sea-doo Challenger, 5672, 2000 05- Control Handle Diagram

#

Description
Price

1

CABLE SUPPORT - Call your local BRP dealership

277000504

Unavailable

2

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

3

SUPPORT - Call your local BRP dealership

277000452

Unavailable

4

PIVOT BRACKET - Call your local BRP dealership

277000451

Unavailable

5

SPACER - Call your local BRP dealership

277000453

Unavailable

6

SOCKET HEAD SCREW M6 X 80 - Call your local BRP dealership

205068060

Unavailable

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Cap Screw M6 X 12

207161260

$1.26

9

Lock Washer Helical M6

234161601

$1.15

10

Pop Rivet 3/16"

293150013

$1.37

11

LINK - REVERSE - Call your local BRP dealership

277000578

Unavailable

12

Flat Washer 4 mm

234040600

$0.55

13

PIVOT BRACKET - Call your local BRP dealership

277000450

Unavailable

14

SPACER - Call your local BRP dealership

277000449

Unavailable

15

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

16

Hex. Screw M6 X 16

207161660

$1.59

17

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

18

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

19

THROTTLE LINK - Call your local BRP dealership

204390045

Unavailable

20

Hex. Elastic Nut M5 | X

232551600

$1.15

21

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

22

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

23

PHILLIPS SCREW M5 X 30 - Call your local BRP dealership

208453060

Unavailable

24

Phillips Screw M4 X 10

208641060

$1.01

25

Control Plate

204390124

Unavailable

26

CONTROL ULTRAFLEX ASS'Y - Call your local BRP dealership | Includes 26 - 64.

204390054

Unavailable

27

Throttle Lever Pin

277000708

Unavailable

28

HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership

277000415

Unavailable

29

SCREW M3.5 X 25 - Call your local BRP dealership

277000419

Unavailable

30

NEUTRAL SWITCH ASS'Y - Call your local BRP dealership

278001195

Unavailable

31

Hex. Elastic Nut M5 | X

232551600

$1.15

32

Screw M4.2 x 19

277000411

Unavailable

33

LH Frame

277000394

Unavailable

34

RH Frame

277000395

Unavailable

35

Half-Case

277000703

Unavailable

36

BUSHING - Call your local BRP dealership

277000397

Unavailable

37

BUSHING - Call your local BRP dealership

277000398

Unavailable

38

BALL - Call your local BRP dealership

277000399

Unavailable

39

SPRING - Call your local BRP dealership

277000400

Unavailable

40

CAP SCREW - Call your local BRP dealership

277000402

Unavailable

41

FRICTION INSERT - Call your local BRP dealership

277000403

Unavailable

42

BLOCKING PIVOT - Call your local BRP dealership

277000704

Unavailable

43

THROTTLE LEVER - Call your local BRP dealership

277000655

Unavailable

44

LH THROTTLE LEVER - Call your local BRP dealership

277000409

Unavailable

45

Guide Block

277000410

Unavailable

46

SHIFT LEVER - Call your local BRP dealership

277000414

Unavailable

47

SCREW M5 X 60 - Call your local BRP dealership

277000420

Unavailable

48

Screw M5 X 20

277000421

Unavailable

49

Screw M5 X 70

277000422

Unavailable

50

THROTTLE LEVER PIN - Call your local BRP dealership

277000705

Unavailable

51

SPACER FRAME - Call your local BRP dealership

277000706

Unavailable

52

SPRING - Call your local BRP dealership

277000401

Unavailable

53

Screw M5 X 25

277000412

Unavailable

54

RH Water Seal

277000423

Unavailable

55

LH Water Seal

277000424

Unavailable

56

SPACER - Call your local BRP dealership

277000707

Unavailable

57

Shift Lever Spacer

277000408

Unavailable

58

NUT M6 - Call your local BRP dealership

277000425

Unavailable

59

Screw M6 x 35

277000426

Unavailable

60

Bushing

277000427

Unavailable

61

Washer

277000428

Unavailable

62

HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership

277000417

Unavailable

63

HALF-SHIFT HANDLE - Call your local BRP dealership

277000418

Unavailable

64

HALF-THROTTLE HANDLE - Call your local BRP dealership

277000416

Unavailable

65

LH THROTTLE CABLE - Call your local BRP dealership

204390065

Unavailable

66

RH Throttle Cable

204390066

Unavailable

67

Loctite 243, 10 ml

293800060

$21.49

68

Was 271000110 Protection Trim

219704353

$15.99

69

Tie-Rap 180 mm

414115200

$0.11

70

Tie Wrap 142 mm

293750002

$1.25

71

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$1.03

73

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable
