02- Oil Injection System

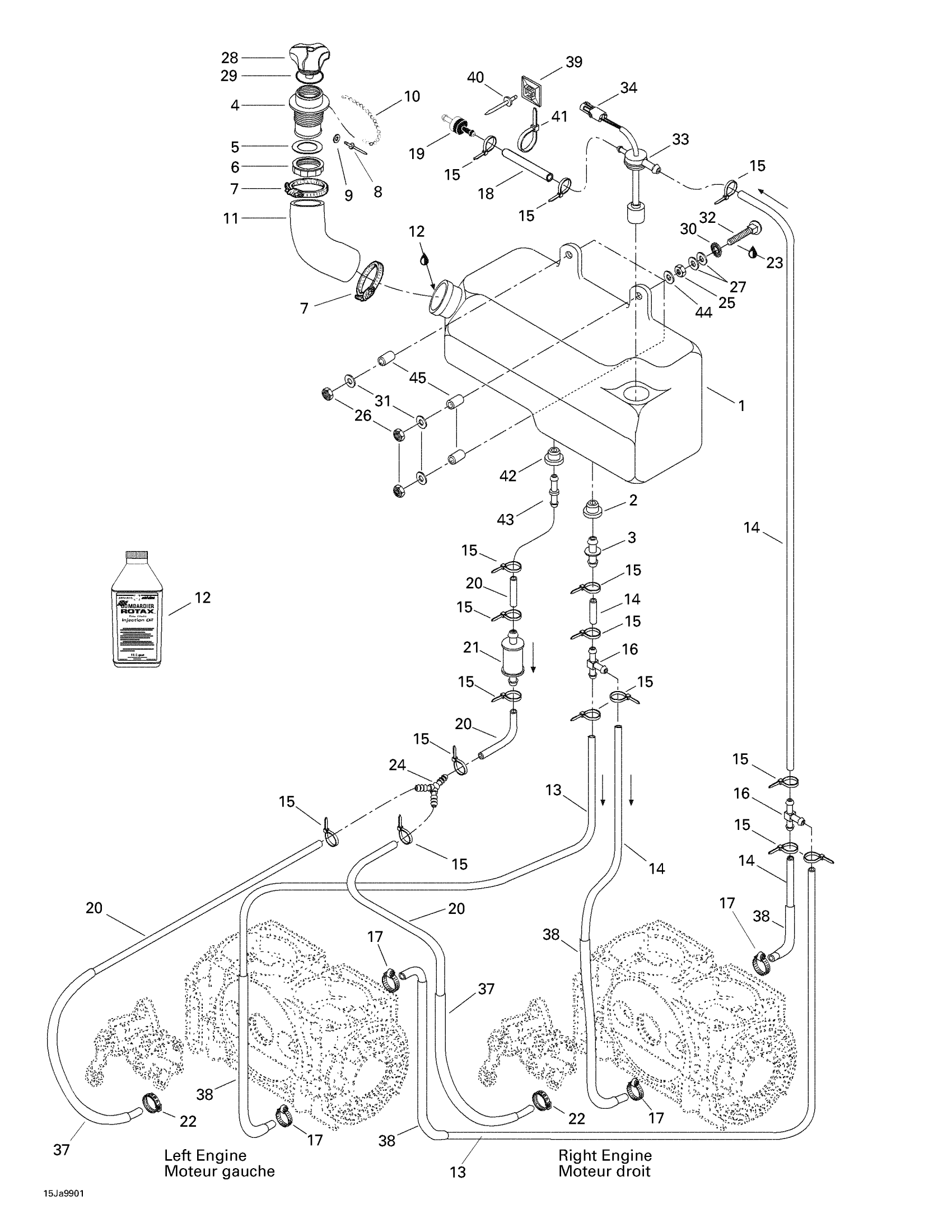

Sea-doo Challenger, 5672, 2000 02- Oil Injection System Diagram
#
1
OIL TANK - Call your local BRP dealership
204550029
Unavailable
2
Grommet | Europe
707800347
$10.49
3
STRAIGHT FITTING - Call your local BRP dealership
293710045
Unavailable
4
Filler Neck
275000212
Unavailable
5
Gasket
293250016
Unavailable
6
Nut-Neck Oil Filler
211100013
Unavailable
7
Norma Clamp
293650077
$7.41
8
Pop Rivet 1/8"
293150056
Unavailable
9
Flat Washer M3, Stainless
234032600
$0.55
10
Oil Cap Chain
275500015
Unavailable
11
Formed Hose
275000128
Unavailable
12
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
$43.99
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
13
Was 275500008 Hose 12 mm
219704356
$20.49
14
Was 275500008 Hose 12 mm
219704356
$20.49
15
Tie Wrap 94 mm | 4X4
293750001
$1.03
16
T-FITTING - Call your local BRP dealership
293710053
Unavailable
17
Tridon Gear Clamp
293650170
$1.99
18
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
19
Check Valve
275500398
$10.99
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
OIL FILTER - Call your local BRP dealership
275000051
Unavailable
22
Oetiker Clamp
293650042
$3.09
23
Loctite 271, 10 ml
293800005
$26.99
24
Y-Fitting
204550001
Unavailable
25
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
26
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
27
Stainless, Flat Washer 8 mm
234081600
$0.55
28
Oil Cap
275000186
Unavailable
29
O-RING - Call your local BRP dealership
293250025
Unavailable
30
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
31
Flat Washer M6, Stainless
234062600
$0.77
32
Screw 1/4”-20 X 1-3/4”
211000193
Unavailable
33
OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.
204470106
Unavailable
34
Female Housing, 2 Circuits
278000217
$9.59
35
Male Terminal | XT Models
278000222
$3.19
36
Wire Seal
278000218
$4.39
37
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
38
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
39
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
40
Pop RIvet 1/8 X ,375
293150285
$0.33
41
Tie Wrap 94 mm | 4X4
293750001
$1.03
42
Grommet
709200285
$9.69
43
STRAIGHT FITTING - Call your local BRP dealership
293710046
Unavailable
44
Flat Washer M6, Stainless
234062600
$0.77
45
SPACER SLEEVE - Call your local BRP dealership
204550033
Unavailable
