- Challenger, 5672, 2000
02- Fuel System

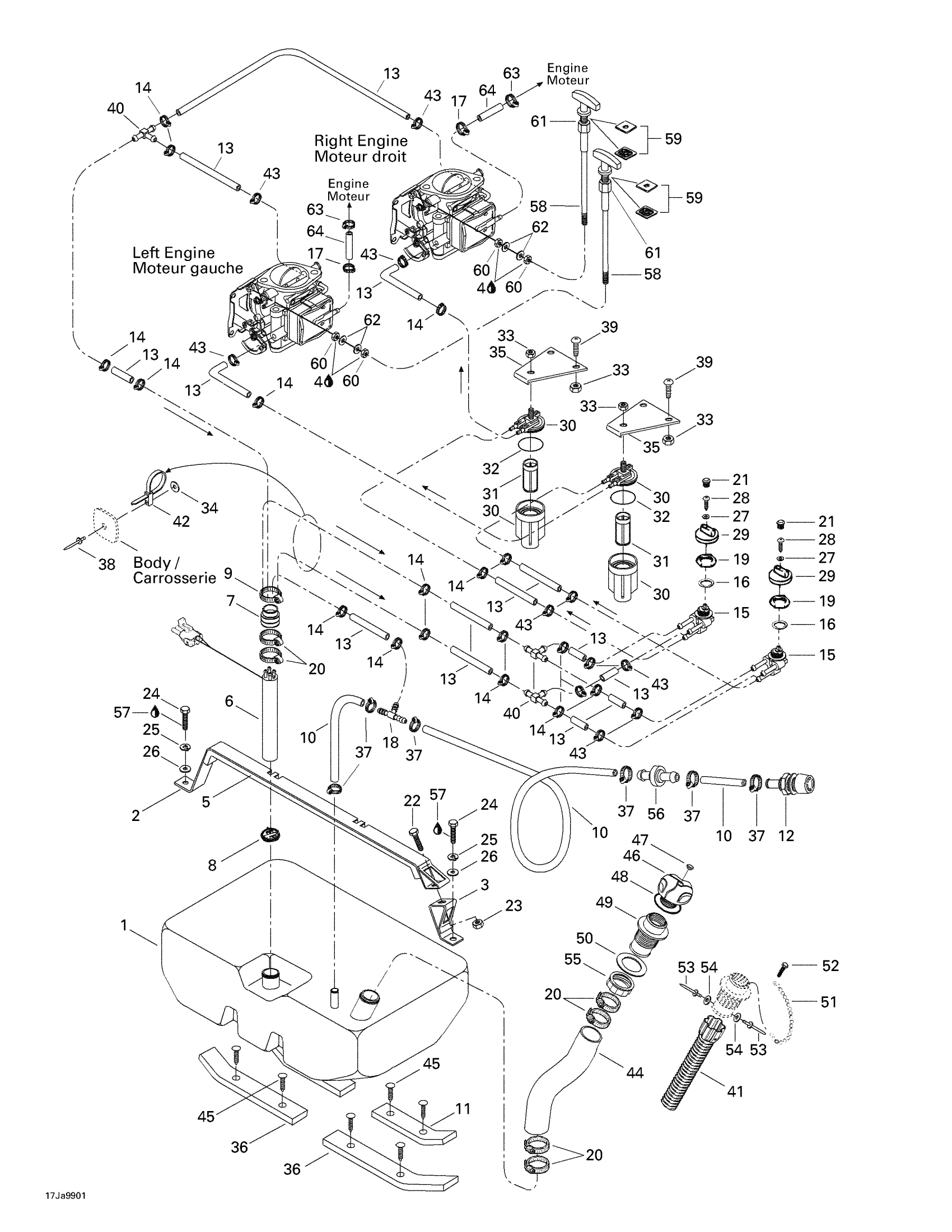

Sea-doo Challenger, 5672, 2000 02- Fuel System Diagram
#
1
Fuel Tank (Plastic)
204560044
Unavailable
2
Tank Bracket
275500199
Unavailable
3
Strap Bracket
275500202
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Protector Pad
204560029
Unavailable
6
BAFFLE PICK-UP ASS'Y - Call your local BRP dealership | Includes 6 - 8.
204560071
Unavailable
7
Fuel Tube Adaptor
204560066
Unavailable
8
Fuel Filter
275500249
Unavailable
9
Norma Clamp
293650077
$7.41
10
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
11
Rubber Pad 330 mm
293830020
Unavailable
12
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
13
Hose 6 mm (Meter)
204560099
Unavailable
14
Norma Clamp
293650088
Unavailable
15
Fuel Valve
275500098
$43.99
16
GASKET - Call your local BRP dealership
293250004
Unavailable
17
Oetiker Clamp
293650042
$3.09
18
T-Fitting
204560038
Unavailable
19
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
20
Norma Clamp
293650081
$12.18
21
Black, Cap
275500241
$3.49
22
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
23
Hex. Elastic Nut M8
232581600
$1.48
24
Hex. Screw M8 X 30
207183060
$1.58
25
Lock Washer 8 mm, Stainless
234181601
$0.55
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
Flat Washer 4 mm
234040600
$0.55
28
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
29
FUEL VALVE KNOB, BLACK - Call your local BRP dealership
275500263
Unavailable
30
Fuel Filter Ass'y | Includes 15 - 17.
275500088
$42.49
31
FUEL FILTER - Call your local BRP dealership
275500089
Unavailable
32
O-Ring
275500090
$8.79
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Flat Washer M5, Stainless
234051600
$0.77
35
Fuel Filter Support
204560007
Unavailable
36
Rubber Pad
293830021
Unavailable
37
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
38
Pop Rivet 3/16"
293150013
$1.37
39
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
40
T Fitting
293710040
Unavailable
41
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
42
Tie-Rap
293750017
Unavailable
43
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
44
Filler Neck Hose
275500259
Unavailable
45
Black, Dart
293730006
$0.99
46
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
47
Black, Snap Cap
293000034
$9.39
48
Gasket
293250017
Unavailable
49
Filler Neck
275500247
Unavailable
50
Gasket
293250029
$14.82
51
Oil Cap Chain
275500015
Unavailable
52
Screw K40 X 10
241140060
$1.48
53
Rivet 1/8”
293150057
Unavailable
54
Flat Washer M3, Stainless
234032600
$0.55
55
Filler Neck Nut, Fuel
211100012
$14.22
56
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
57
Loctite 271, 10 ml
293800005
$26.99
58
CHOKE CABLE ASS'Y L.H - Call your local BRP dealership | Includes 58 - 62.
204250041
Unavailable
CHOKE CABLE - Call your local BRP dealership | Includes 50 - 54.
204250071
Unavailable
59
Choke Plate
291000457
Unavailable
60
Hex. Nut M6
232160600
$1.15
61
Hex. Nut
211100007
Unavailable
62
Stainless Flat Washer M6
234061600
$0.33
63
Tridon Gear Clamp
293650170
$1.99
64
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
