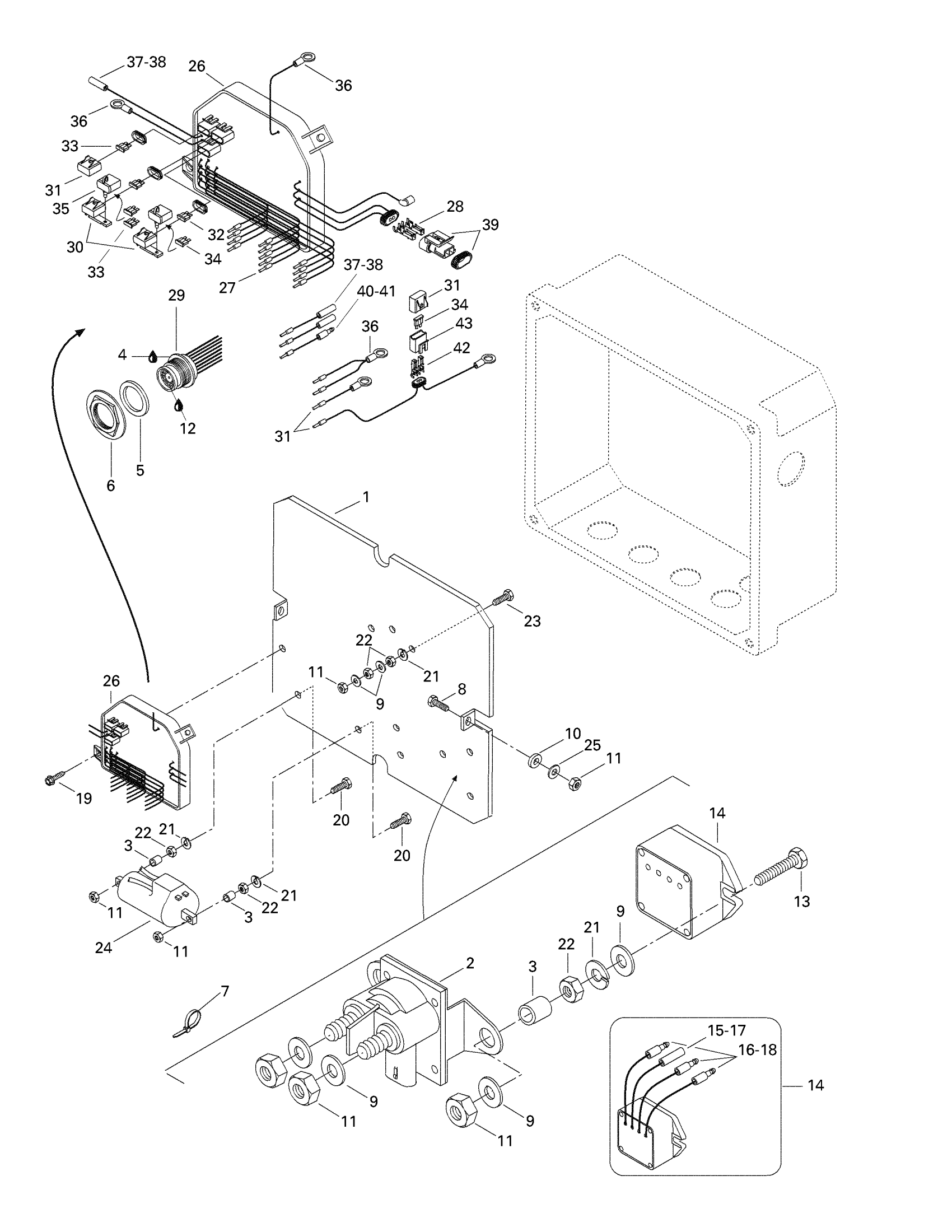

Sea-doo Challenger, 5603/5606, 1997 Electrical Box Diagram

#

Description
Price

1

Mounting Plate

204470107

Unavailable

2

Starter Relay

278003012

$42.49

3

SPACER - Call your local BRP dealership

278000235

Unavailable

4

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

5

Gasket(Canon)

293250053

Unavailable

6

Nut(Canon)

211100029

Unavailable

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

Hex. Forming Screw M6 X 20

207162060

$1.29

9

Stainless Flat Washer M6

234061600

$0.33

10

Rubber Washer 6 mm

211200032

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

$1.15

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

Hex. Screw M6 X 35

207163560

$1.49

14

Rectifier Ass'y | Includes 14 - 18.

278000443

Unavailable

15

Female Terminal | DS 650 X

278001009

$3.19

16

Male Terminal

278000230

$4.39

17

Insulated Sheath

278001007

$3.58

18

Insulated Sheath

278001008

$3.28

19

Taptite Screw M6 x 16

211000080

Unavailable

20

Hex. Screw M6 X 35

207163560

$1.49

21

Lock Washer Helical M6

234161601

$1.15

22

Hex. Nut M6

232061600

$1.15

23

Hex. Screw M6 X 25

207162560

$1.47

24

Ignition Coil

278000383

$99.49

25

Flat Washer M6, Stainless

234062600

$0.77

26

Electronic Module Ass'y | Includes 26 - 43.

204470137

Unavailable

27

Male Terminal(Canon)

278000868

Unavailable

28

Female Terminal

278001114

$3.19

29

Female Housing(Canon)

278000867

Unavailable

30

Fuse Holder Cap

278001326

$7.69

31

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

32

Fuse, 5 Amperes | CE

278000344

$3.28

33

Fuse, 15 Amperes

278000343

$3.28

34

Fuse, 20 Amperes

409003900

$3.28

35

Fuse Holder

278000379

Unavailable

36

Open Barrel

278000992

$2.21

37

Female Terminal | DS 650 X

278001009

$3.19

38

Insulated Sheath

278001007

$3.58

39

Male Connector, 2 Circuits

278001113

$16.86

40

Male Terminal

278000230

$4.39

41

Insulated Sheath

278001008

$3.28

42

Female Terminal(Packard)

409011400

Unavailable

43

Fuse Holder

204470059

Unavailable
