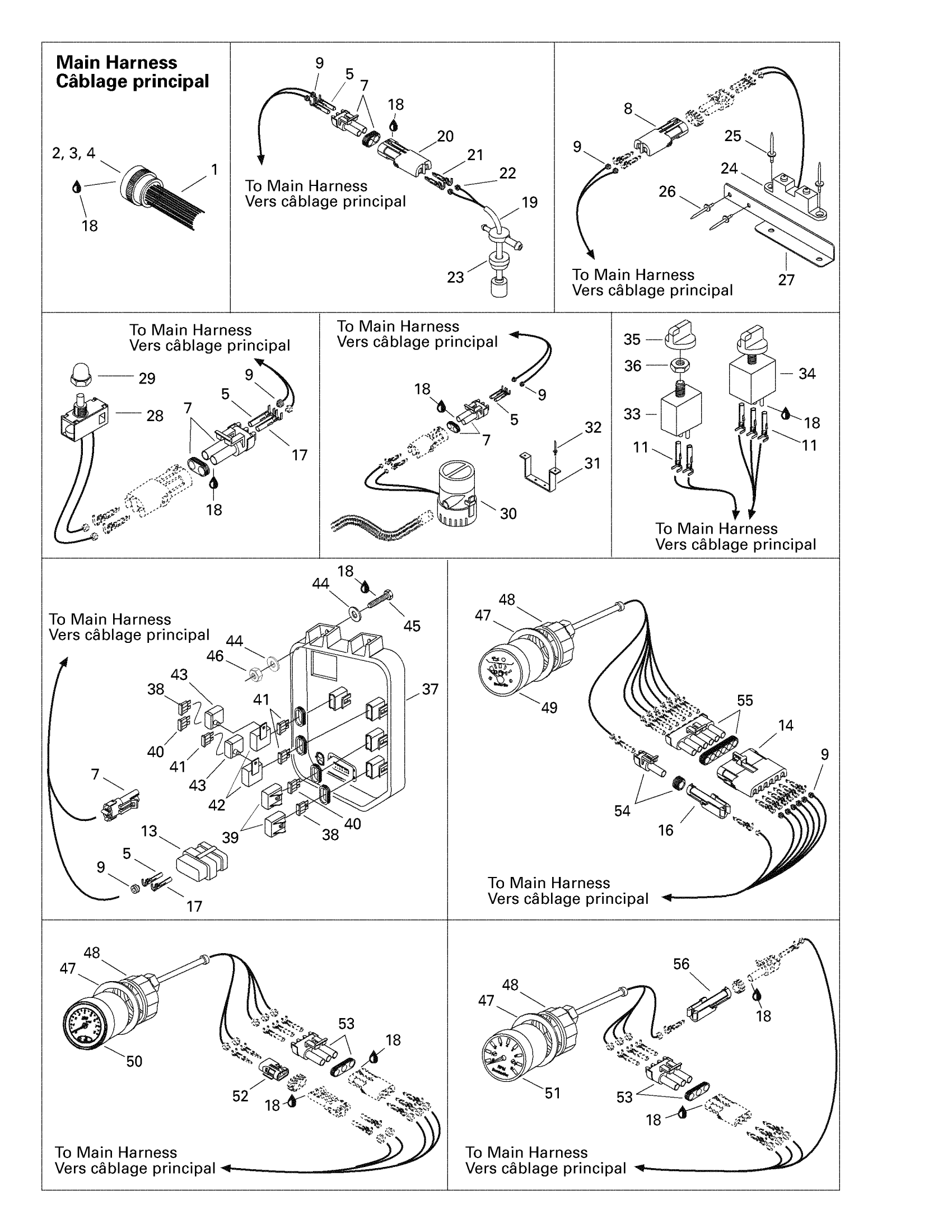

Sea-doo Challenger, 5603/5606, 1997 Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 - 17.

204470045

Unavailable

2

Male Housing(Canon)

278000870

Unavailable

3

Female Terminal(Canon)

278000871

Unavailable

4

Female terminal(Canon)

278000872

Unavailable

5

Female Terminal

409007300

$0.36

6

Female Terminal

278000632

$1.69

7

Male Connector, 2 Circuits

278000220

$11.02

8

Female Housing, 2 Circuits

278000217

$7.59

9

Wire Seal

278000218

$3.48

10

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

11

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

12

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

13

Male Housing (24 Ways)(AMP)

278001194

Unavailable

14

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

15

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.97

16

Female Housing, 1 Circuit

278000161

$8.98

17

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

19

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

20

Female Housing, 2 Circuits

278000217

$7.59

21

Male Terminal | XT Models

278000222

$2.55

22

Wire Seal

278000218

$3.48

23

Grommet

204470104

Unavailable

24

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

25

Pop Rivet 5/32

293150050

Unavailable

26

Pop Rivet 3/16"

293150008

$0.40

27

Not Available As Spare Part - Friction Washer

Unavailable

28

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

29

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

30

Bilge Pump This part replaces 204470220.

278002020

$79.92

31

Bilge Pump Support

292000236

Unavailable

32

Pop RIvet 1/8 X ,375

293150285

$0.23

33

Fan Switch

278000540

Unavailable

34

Light Switch

278000541

Unavailable

35

SWITCH CAP - Call your local BRP dealership

278000542

Unavailable

36

Switch Nut

278000647

Unavailable

37

Fuse Block Ass'y | Includes 37 - 43.

204470119

Unavailable

38

Fuse, 10 Amperes | North America

278001197

$1.79

39

FUSE CAP - Call your local BRP dealership

278000378

Unavailable

40

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

41

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

42

Fuse Holder Cap

278001326

$6.03

43

Fuse Holder

278000379

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.64

45

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208662060

Unavailable

46

Hex. Elastic Stop Nut M6

232561600

$0.92

47

Gasket

293250040

Unavailable

48

Gauge Nut

278000743

Unavailable

49

Fuel / Oil Gauge

204470061

Unavailable

50

Speedo Gauge

204470078

Unavailable

51

Tachometer Gauge

204470079

Unavailable

52

Female Housing, 2 Circuits

278000217

$7.59

53

Male Housing, 3 Circuits

278000273

$7.59

54

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

55

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

56

Female Housing, 1 Circuit

278000161

$8.98
