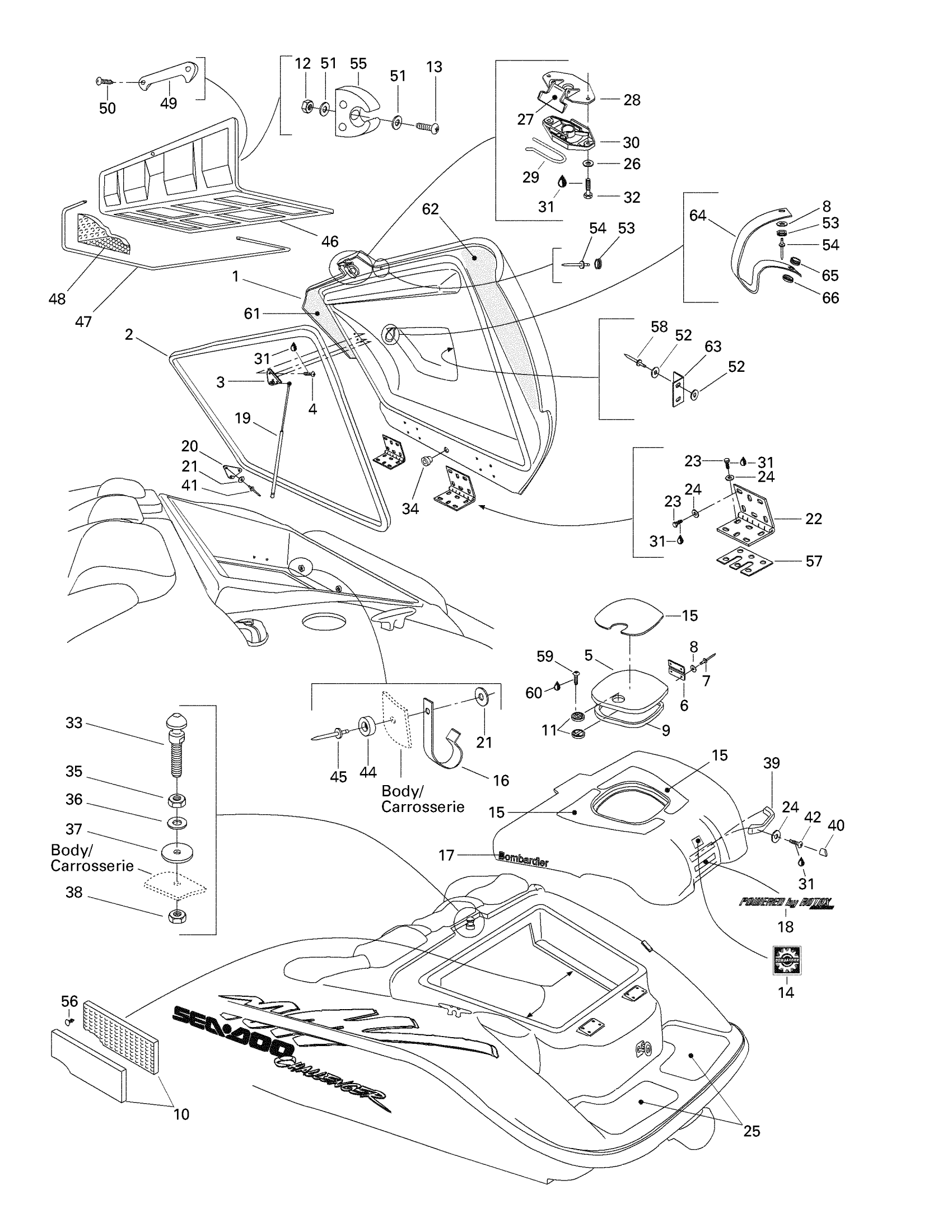

Sea-doo Challenger, 5603/5606, 1997 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

295500284

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

5

Rope Box Cover

269700030

Unavailable

6

Hinge

269700031

$9.99

7

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

8

Flat Washer M3, Stainless

234032600

$0.55

9

Was 293200017 Neoprene Seal

219704365

$149.99

10

LH Engine Compartment Foam

237500012

Unavailable

Engine Foam R.H

237500011

Unavailable

11

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

12

Elastic Stop Nut M4

232541600

$1.15

13

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

14

<> Logo Decal

219900049

Unavailable

15

Rope Box Cover Carpet Kit

295500448

Unavailable

16

Clip Cable

414839700

Unavailable

17

<> Decal

219900586

Unavailable

18

Decal <>

219900606

Unavailable

19

Cylinder

291000822

Unavailable

20

Shock Support

291000615

Unavailable

21

Flat Washer M5, Stainless

234051600

$0.77

22

HINGE - Call your local BRP dealership

204070084

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Platform Carpet Kit

295500388

Unavailable

26

Stainless Flat Washer M6

234061600

$0.33

27

Latch Ass'y | Includes 27 - 30.

269000465

Unavailable

27

Latch Ass'y

269700109

$24.99

28

Latch Ass'y

269700109

$24.99

29

Latch Spring

269700017

$9.19

30

Latch Ass'y

269700109

$24.99

31

Loctite 243, 10 ml

293800060

$21.49

32

Hex. Screw M6 X 25

207162560

$1.47

33

Latch Stud

204700001

Unavailable

34

GROMMET - Call your local BRP dealership

293720017

Unavailable

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

38

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

39

Grip Handle (Grape) | Includes 16 - 17.

291000739

Unavailable

40

Snap Cap (Grape)

293000006

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

Rubber Stopper

293830043

Unavailable

45

Pop Rivet 3/16"

293150005

$0.52

46

Access Cover

295500299

Unavailable

47

Seal Tray 1000Mm Long

219704368

$13.99

48

Luggage Foam

237500013

Unavailable

49

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

50

Hex. Flange Screw K40 X 16

241141660

$1.48

51

Flat Washer 4 mm

234040600

$0.55

52

Flat Washer M5, Stainless

234051600

$0.77

53

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

54

Pop Rivet 1/8”

293150015

$0.40

55

Pole Support

291000642

Unavailable

56

Black, Dart

293730006

$0.99

57

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

58

Pop Rivet 3/16"

293150039

$1.49

59

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

60

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

61

LH Foam Cover

204320011

Unavailable

62

RH Foam Cover

204320012

Unavailable

63

KEEPER - Call your local BRP dealership

204070060

Unavailable

64

NYLON STRAP - Call your local BRP dealership

204070106

Unavailable

64

Nylon Strap (Black) (Meter)

204000075

Unavailable

65

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

66

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

67

Floor Carpet (Jade)

295500514

Unavailable
